SYSTEM OPERATION
12

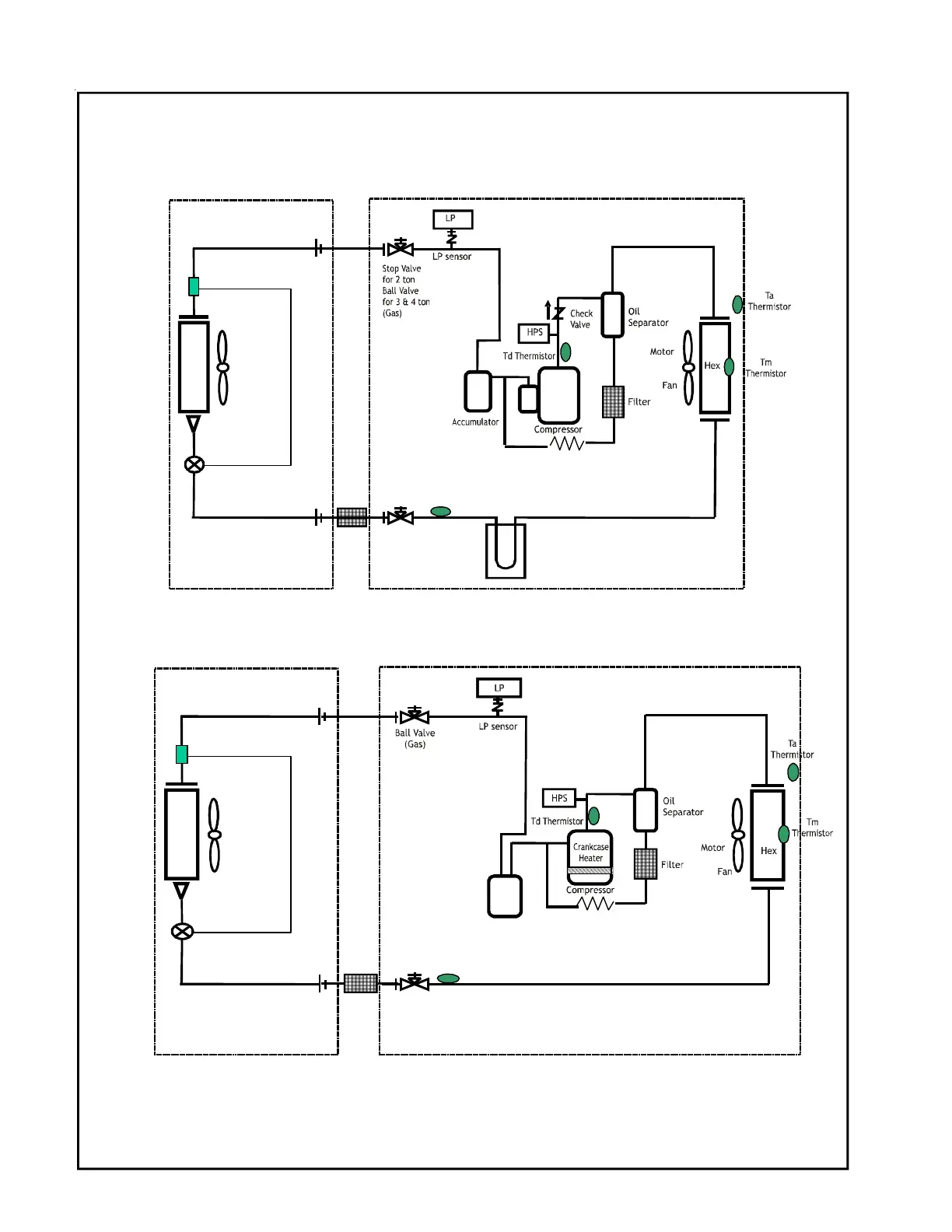

Piping Diagram (2-4 Ton)
Motor
Fan
TXV
Hex
Tl Thermistor
Outdoor unit
Indoor unit
Stop
Valve
(Liquid)
Filter
Drier
Ref cooling
Capillary Tube
Piping Diagram (5 Ton)
Filter
Drier
Stop
Valve
(Liquid)
Accumulator
Capillary Tube
Tl Thermistor
Outdoor unit
Indoor unit
Motor
Fan
TXV
Hex
LEGEND:
Tl = Thermistor (Outdoor Liquid Temperature)
Td = Thermistor (Discharge Temperature)
Ta = Thermistor (Outdoor Air Temperature)
LP sensor = Low Pressure Sensor
HPS = High Pressure Switch
Tm = Thermistor (Outdoor Coil Temperature)
COOLING CYCLE
