SERVICING
49
Long Radius Street Ell
45°
Street Ell
Short Radius
Street Ell
45°
Ell

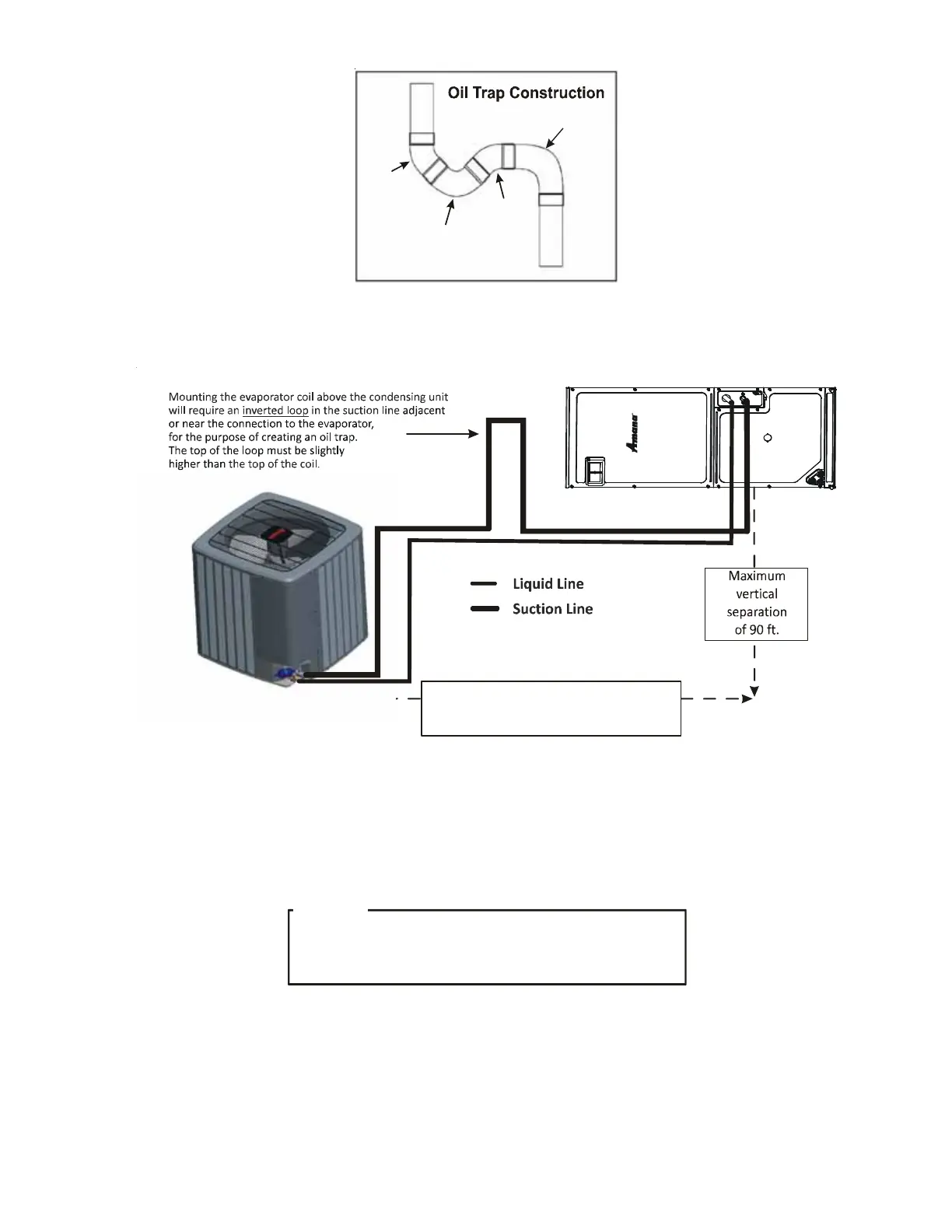

Figure 3-1. Oil Trap
SECTION 4. OUTDOOR UNIT IS BELOW THE INDOOR UNIT
Condenser BELOW Evaporator
Maximum line set
equivalent length of 250 ft*.
The maximum line set actual length is 200 ft.
*Accounts for pressure losses of any elbows, bends, etc.
1. The maximum elevation (vertical) difference between the outdoor unit and the indoor unit is 90 feet.
2. Suction line must be installed in a manner to prevent liquid migration to the outdoor unit from the
indoor unit.
The condenser unit is shipped with a predetermined factory charge level as shown in the following chart. For longer line sets greater
than 15 feet, add 0.6 ounces of refrigernat per foot.
NOTICE
T
OTAL
R
EFRIGERANT
=
F
ACTORY
C
HARGE
+ (0.6
OZ
./
FT
. * A
DDITIONAL
F
EET
OF
A
CTUAL
L
INE
S
ET
).
