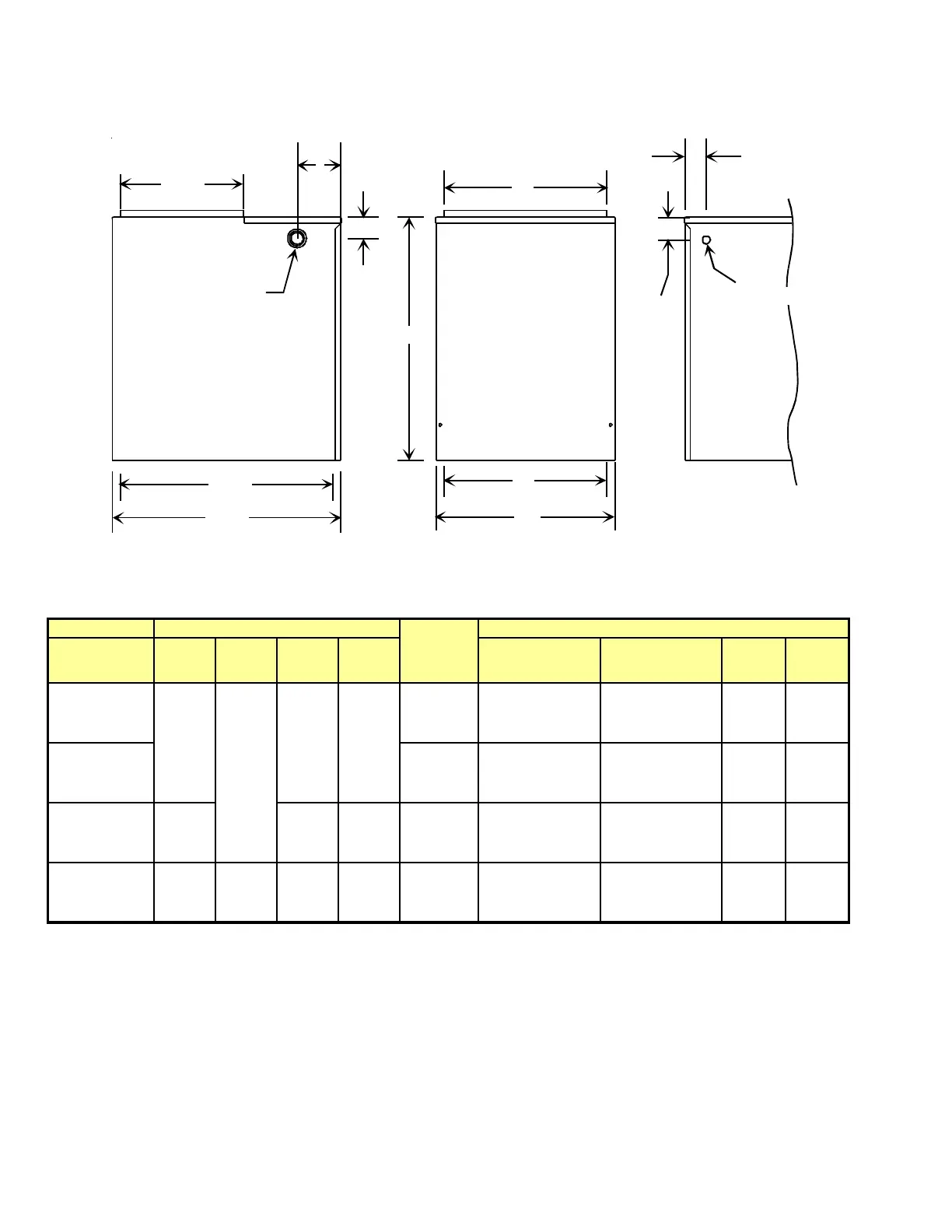

BBA BLOWER COIL SPECIFICATIONS
11 3/8
2
2 1/16
2
7/8 Knockout
3 Knockouts
1 - 3/32
1 - 23/64
1 - 23/32
21 1/8
19 5/8
"W"
"B"
"H"
"A"
4
Dimensions, inches (mm) Shipping Physical Information
MODEL W H A B
Weight
lbs.(kg)
Blower Wheel
(D x W)
Blower Motor
(HP)
MCA
1
MOP
1
BBA24A2A
16 - 1/2 15 15
63
(28.6)
9 x 7 1/4 1.9 15
BBA36A2A
(419)
22 - 1/4
(565)
(381) (381)
68
(30.8)
10 x 7 1/3 3 15
BBA48A2A
20 - 1/2
(521)
19
(483)
19
(483)
78
(35.4)
10 x 10 1/3 3.8 15
BBA60A2A
24 - 1/2
(622)
26 - 1/4
(667)
23
(584)
23
(584)
90
(40.8)
11 x 10 1/2 4.9 15
1
Minimum Circuit Ampacity (MCA) and Maximum Overcurrent Protection (MOP) for blower without supplemental heat
installed. Refer to unit nameplate for MCA and MOP with approved accessory heaters installed.

Amana BBA24A2A Specifications

General

Brand	Amana
Model	BBA24A2A
Category	Control Unit
Language	English
