Disassembly
WARNING
To avoid the risk of electrical shock, personal injury, or
death, disconnect power to oven and discharge
capacitors before following any disassembly procedure.

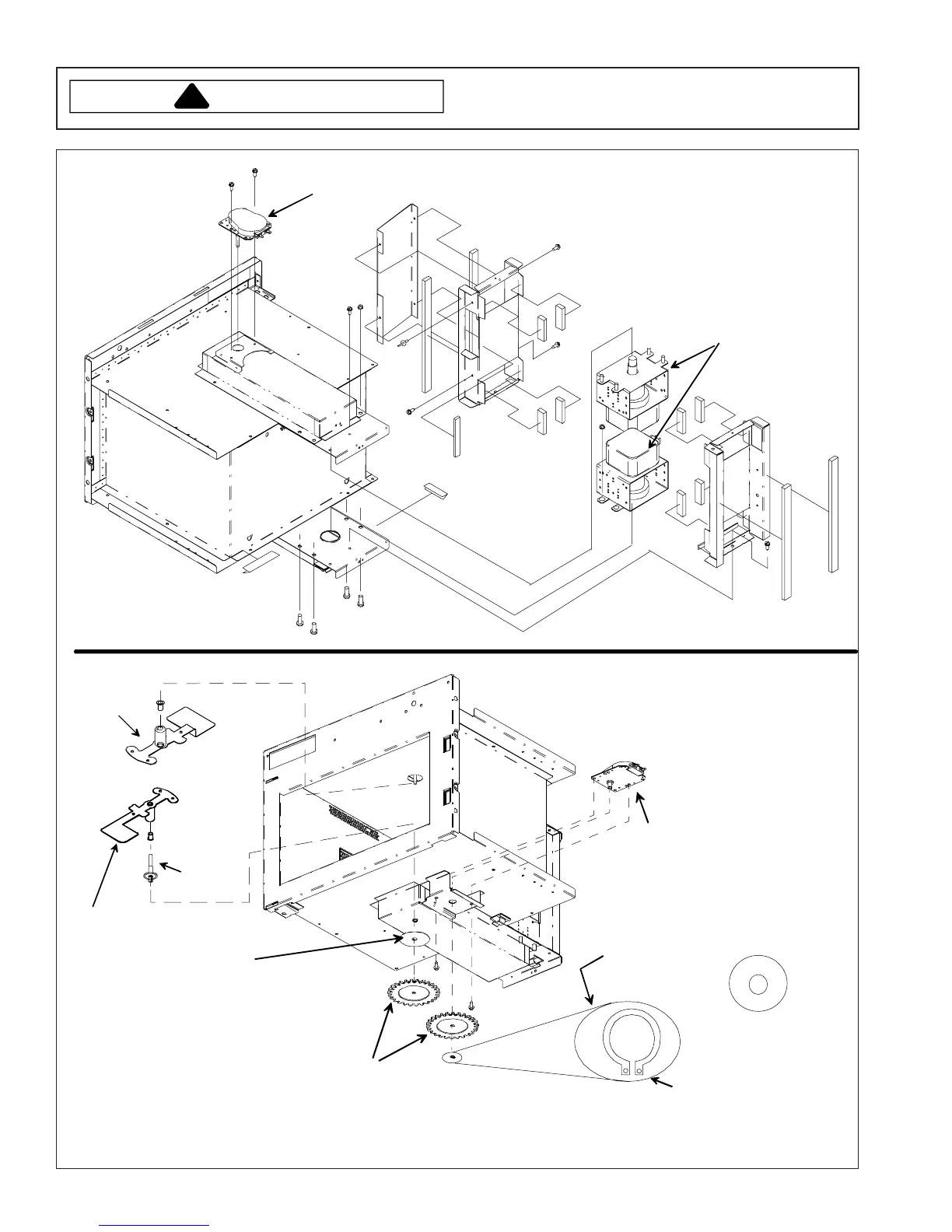

Figure 2
Washer
NOTE: Raised rib on edge of washer
must face away from cavity.
Gear
NOTE: Ribbed side of gear
must face oven cavity.
Snap Ring
Antenna
Motor
Original
Clip
Magnetrons
Antenna
Motor
Antenna
assembly
bottom
Antenna
assembly
top
Replacement
clip
Shaft
To Next Page
