20

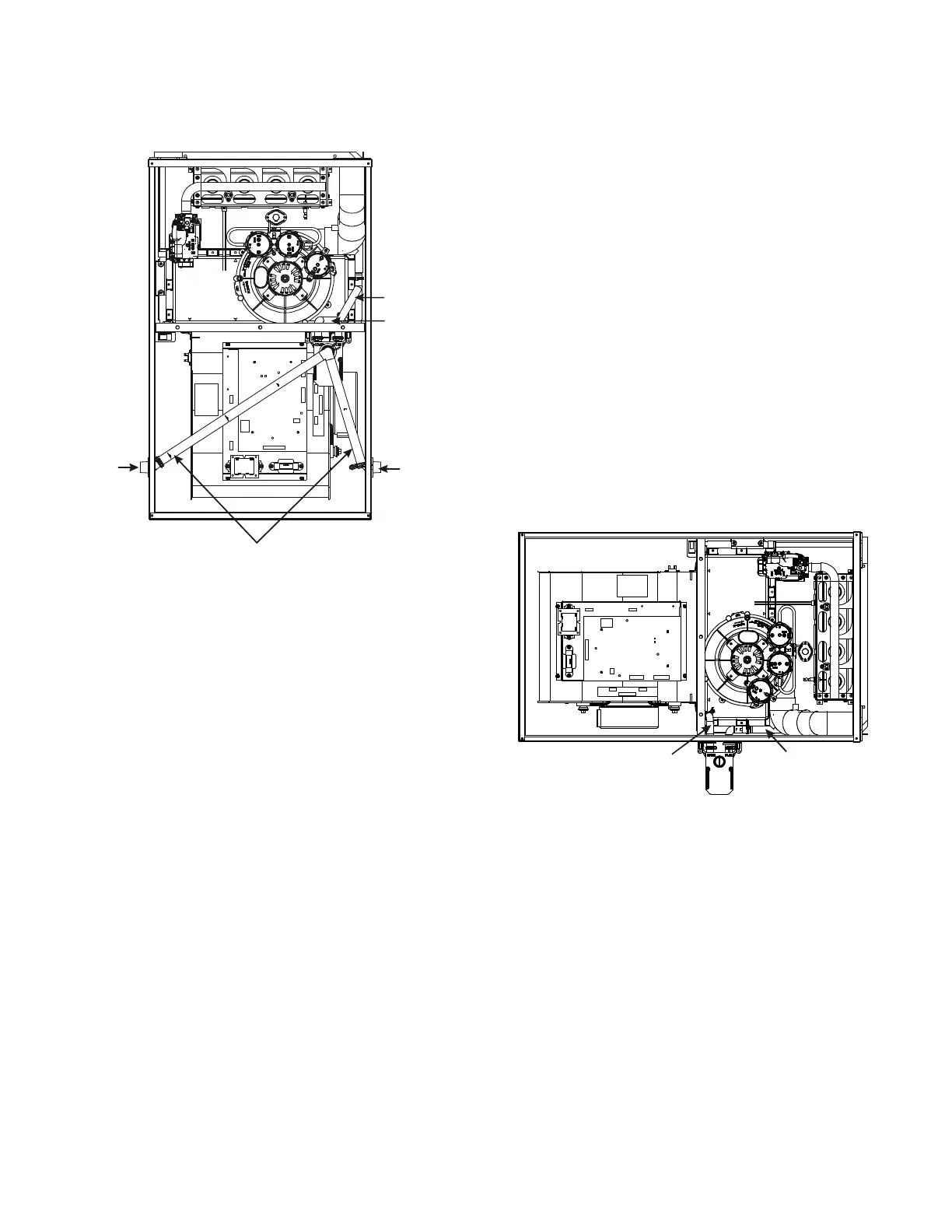

Installer selects right or left side drain
and installs this hose accordingly.
Hose #1
Hose #2
45 degree
barb-pipe
adapter
45 degree
barb-pipe
adapter
Minimum 5 ½” clearance is required for the drain trap
beneath the furnace.
Secure the trap to the cabinet using two screws
Minimum 5 ½” clearance is required for the drain trap
beneath the furnace.
*Also see Front Cover Pressure Switch Tube Location on
page 11
To Next Page
