Disassembly

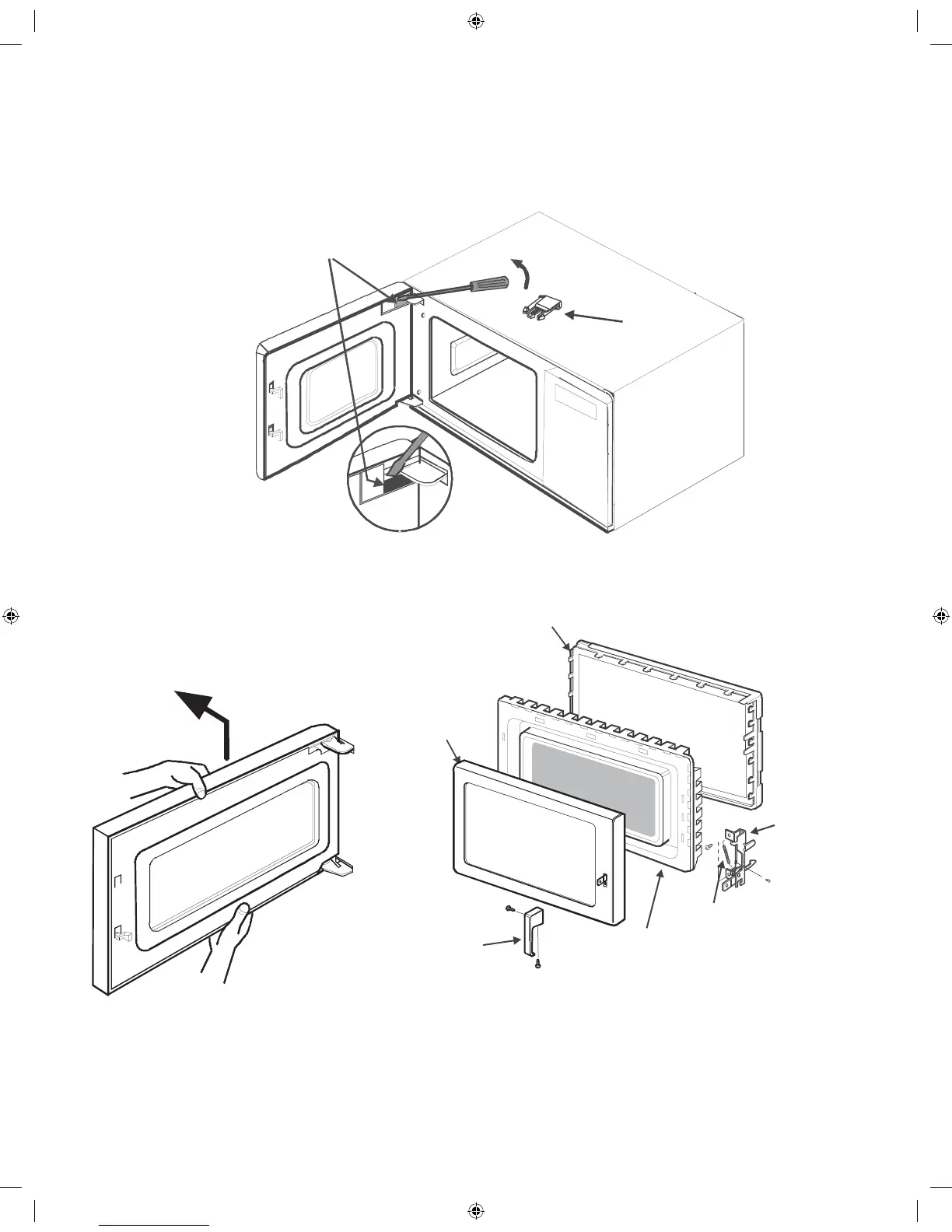

1. Disconnect power to oven.
2. Open oven door, remove top hinge cap, and slowly lift door to disengage the hinge pins at top and bottom.
Top hinge cap
Top
hinge
cap
3. To reinstall door, place top pin into slot rst, then align bottom pin.
4. Reinstall top hinge cap.
Outer
Door
panel
Door frame/
choke assembly
Choke
cover
Latch
assembly
Spring
* Door
Handle
* Apply thread lock compound to threads, tighten side screw rst.
Door Removal
