RS5290000 Rev. 0 14 February 1998
Installation Instructions
8. Ice 'N Water
ä
Dispensing Models
Loosen screw from water tube clamp. Loosen
6.4 mm plastic water tube union nut by hand.
Pull water tube away from union nut and through
tube clamp. Unplug top hinge wire connectors.
Connecting Water Supply
Materials Required
2.5 m of 6.4 mm flexible copper tubing
Important: Before installing ice maker, contact a
plumber to connect copper tubing to household
plumbing in compliance with local codes and
ordinances. Warranty will be void if
installation is improper or a self-piercing
valve is used.
Procedure
Caution
To avoid property damage, observe the
following:
1. Check for water leaks prior to
returning refrigerator to normal
location.
2. Start tubing nuts by hand to avoid
cross threading. Finish tightening
nuts using an adjustable wrench.
Do not overtighten.
3. Check carefully for water leaks 24
hours after installation.
1. Turn off water supply to refrigerator.
2. Seal open end of copper tubing with tape.
3. Route copper tubing up to refrigerator. Copper
tubing route must be above 2°C to prevent water
line from freezing.
4. Remove masking tape from end of copper
tubing.
5. Put other end of copper tubing into bucket. Turn
on water supply to refrigerator. Water will be
under considerable pressure. Allow water to run
through copper tubing. Turn off water supply to
refrigerator when flushing is complete.

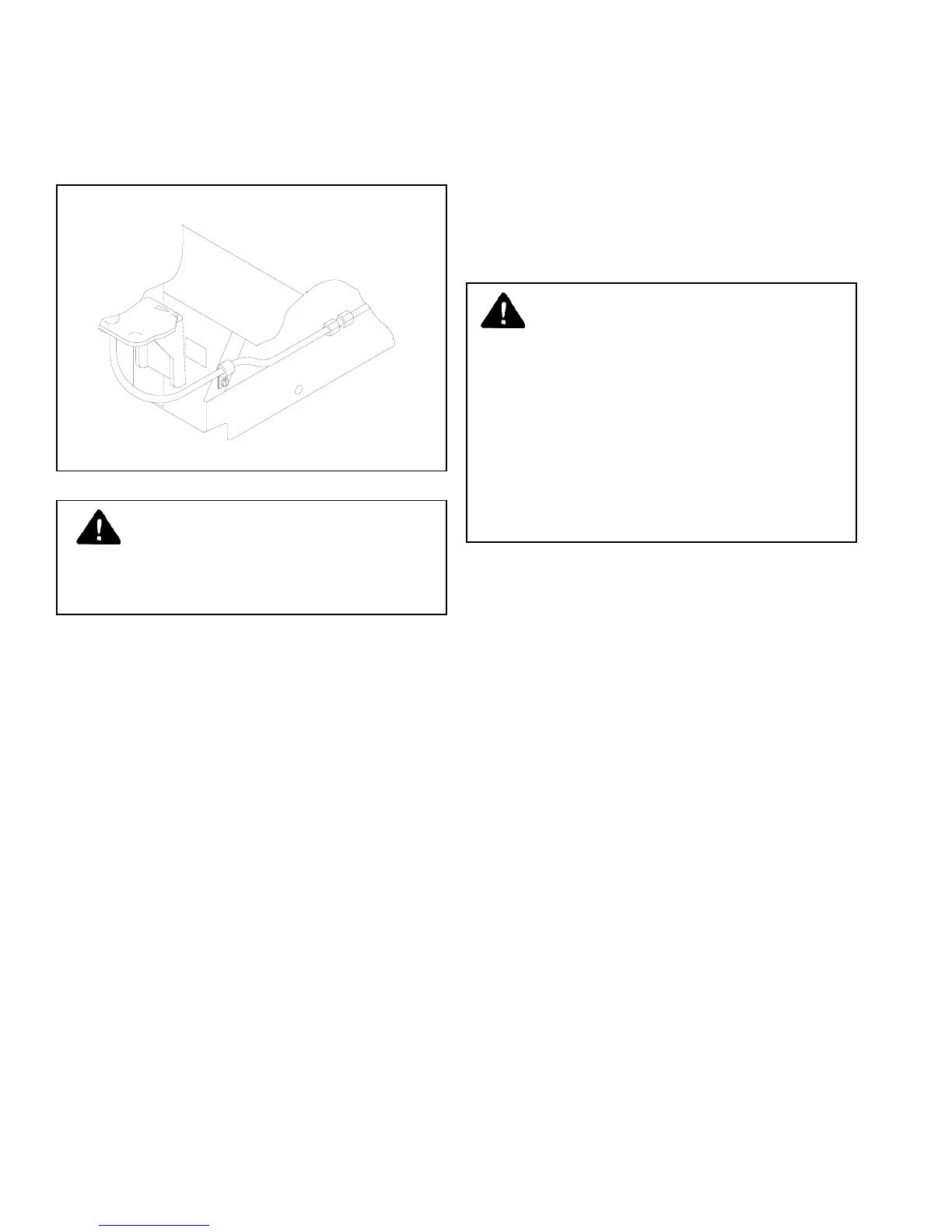

6. Remove and retain lower cover by removing
screws.
WARNING
To avoid electrical shock which can
cause severe personal injury or death,
green/yellow earthing wire must remain
attached to hinge. Do not dissassemble.
9. Remove top Deepfreeze
â
hinge by removing
screws.
10. Remove tape from Deepfreeze
â
door while
holding door securely.
11. Remove Deepfreeze
â
door by lifting while
opening. This will free Deepfreeze
â
door from
bottom hinge pin.
Ice 'N Water
ä
Dispensing Models
Slide plastic water tube through slot in bottom
door hinge as door is raised.
12. Remove bottom hinge by removing screws.
13. Install doors by reversing steps 1-12.
To Next Page
