Program Mode
Accessing Program Mode
Two programming modes are available. Mode A
allows reading refrigerator and freezer thermistor
temperatures. Mode B is used for all other
programmable functions.
1. Open refrigerator door.
2. Press
*
pad.
3. Press Vacation pad.
4. Press the following sequence of pads within 6
seconds: Max Cool, Fast Freeze, Max Cool, Fast
Freeze.
5. When access is granted, tone will sound three
time and control will be in Program Mode A.
Indicator light will illuminate.
6. Toggle to Program Mode B by pressing
*
pad.
Indicator light is off.
EEPROM Update in Control Memory
EEPROM is permanent programmable memory of the
control panel.
• Entry tone, door audio alarm and status are stored
in EEPROM after control panel is deactivated.
• Clean coil status is stored in EEPROM after every
defrost cycle as time until clean coil alarm is
activated.
• Information stored in EEPROM memory is not
affected by power loss.
Mode A Functions
Reading Temperature Display
Temperature display will show thermistor temperature
in binary coded decimal format (BCD). Indicator lights
1 through 4 represent the tens digit with 1 being the
most significant bit. Indicator lights 5 through 8
represent ones digit with 5 being the most significant
bit. Positive and negative are shown by indicator light
9; light glows to show negative value

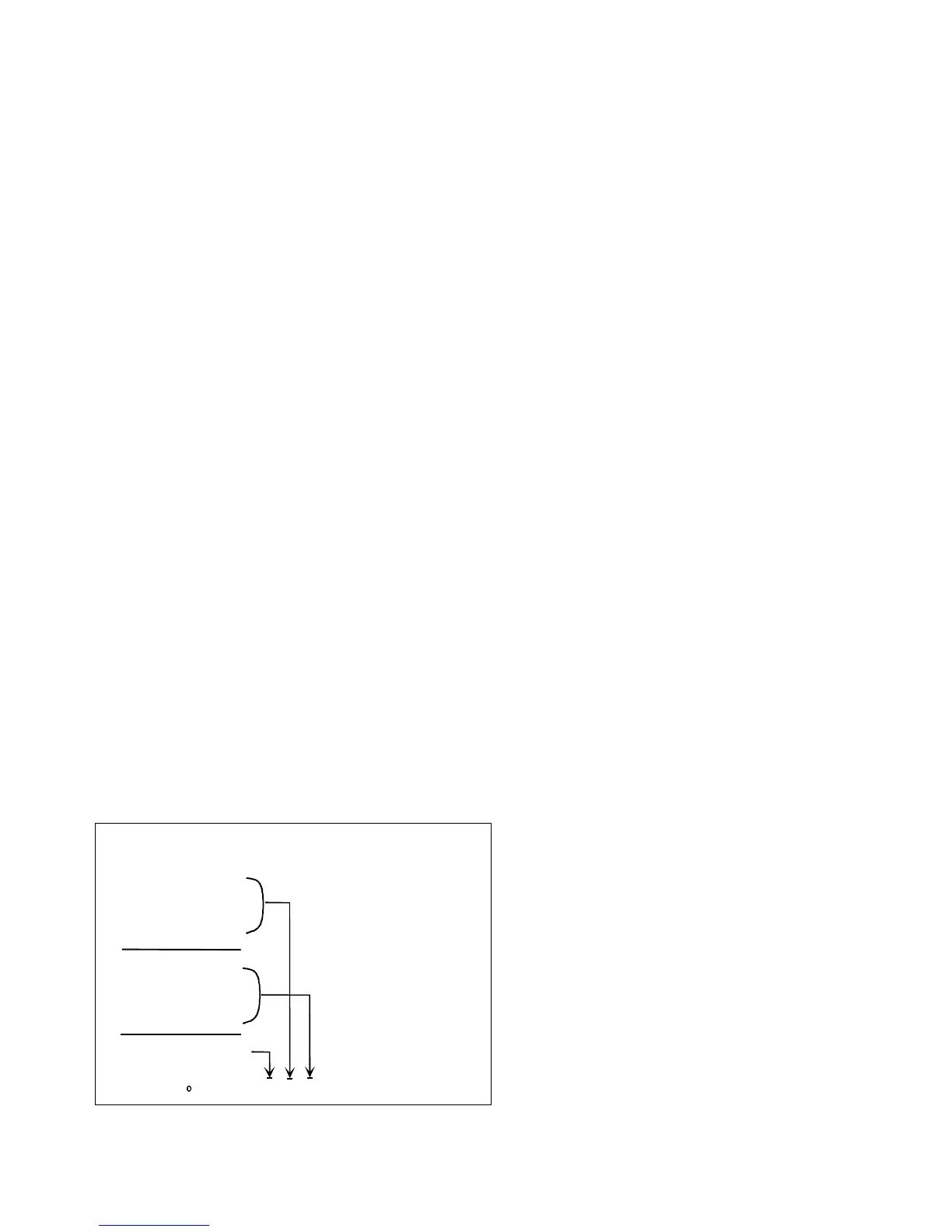

Indicator
Value
1
2
3
4
8
4
2
1
5
6
7
8
8
4
2
1
Coldest
+/-
3 6 Degrees F.
Add together all lit indicators
1 through 4 according to their
values to obtain tens column digit.
Example: If 3 and 4 are lit the tens
column total is 3 (2 + 1 = 3)
Add together all lit indicators
5 through 8 according to their
values to get ones column digit.
Example: If 6 and 7 are lit the
ones column total is 6 (4+2 = 6).
The coldest indicator is not lit
so example is +36 F.
NOTE: Temperature reads degrees Fahrenheit only.
Use conversion formula °C=5/9(°F-32).
Freezer Thermistor Temperature
1. Choose freezer thermistor temperature display by
pressing Freezer Temp pad.
2. Freezer thermistor temperature displays.
Refrigerator Thermistor Temperature
1. Choose refrigerator thermistor temperature
display by pressing Fresh Food Temp pad.
2. Refrigerator thermistor temperature displays.
Mode B Functions
Automatic Keyboard Function
Activate and deactivate keyboard by toggling
Display Off pad. If high temperature indicator glows,
keyboard will disable after 10 minutes. If high
temperature indicator is off, keyboard is always
enabled. DO NOT LEAVE KEYBOARD IN ENABLED
MODE AFTER PROGRAMMING IS COMPLETE.
Door Alarm Delay
1. Press Alarm Off pad. Door open indicator will
glow. One temperature indicator should glow
indicating present delay setting in minutes
(indicator 1 means 1 minute, 2 means 2 minutes,
etc.) Default delay is 3 minutes.
2. Press Warmer pad to decrease delay by 1 minute.
3. Press Colder pad to increase delay by 1 minute.
Max Cool Run Time Duration
1. Press Max Cool pad. Max Cool light will glow. One
temperature indicator should glow indicating
present Max Cool run time duration in 2 hour
increments (indicator 1 means 2 hours, 2 means 4
hours, etc.) Default duration is 10 hours.
2. Press Warmer pad to decrease Max Cool duration
by 2 hours.
3. Press Colder pad to increase Max Cool duration by
2 hours.
Fast Freeze Run Time Duration
1. Press Fast Freeze pad. Fast Freeze light will glow.
One temperature indicator should glow indicating
present Fast Freeze run time duration in 4 hour
increments (indicator 1 means 4 hours, 2 means 8
hours, etc.) Default duration is 24 hours.
2. Press Warmer pad to decrease Fast Freeze
duration by 4 hours.
3. Press Colder pad to increase Fast Freeze duration
by 4 hours.
