Amana SR520T User Manual

RS5290000 Rev. 0 56 April 1998
Water Flow
“T” Model Side x Side
Ice & Water Dispenser

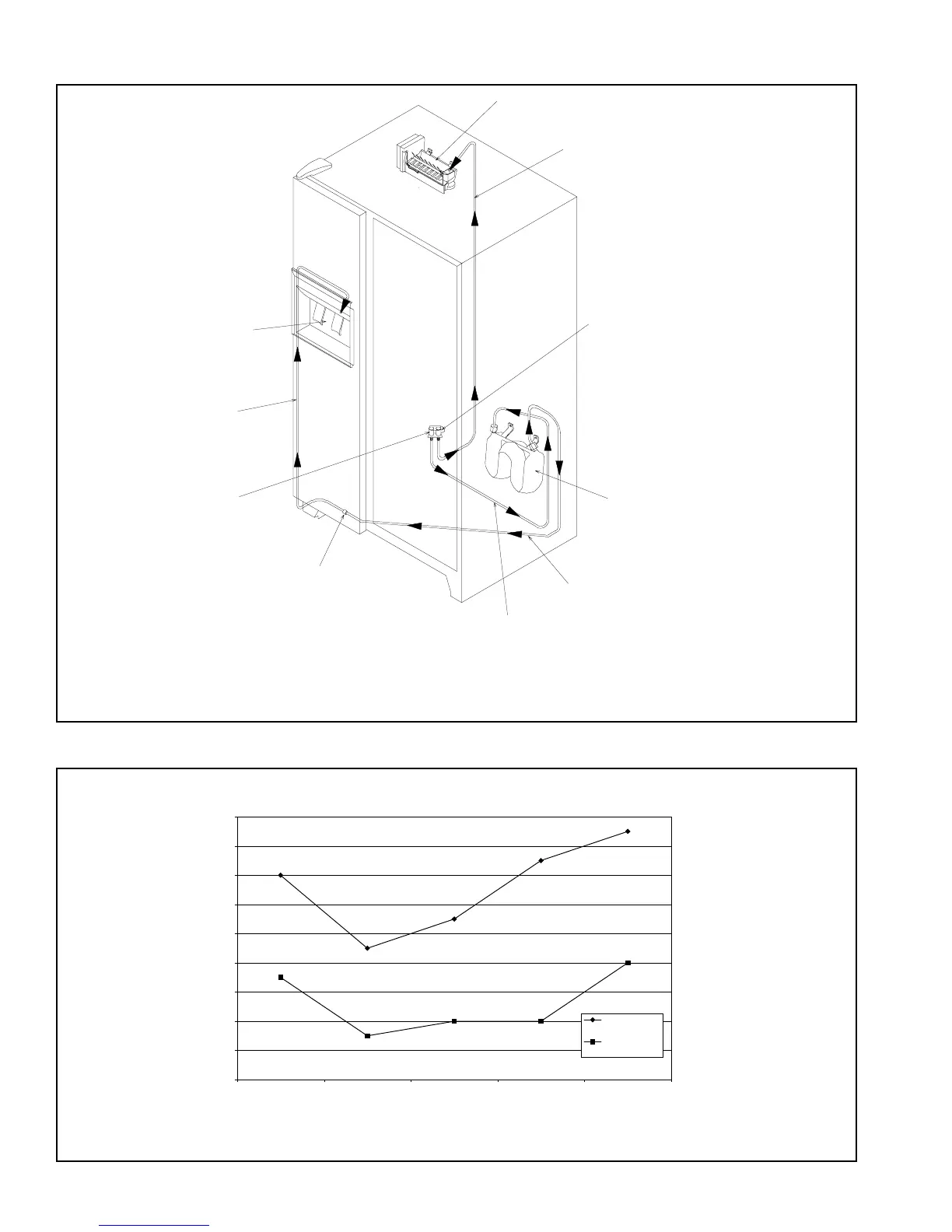

Water Flow Diagram
Dispenser Water Temperature Chart
Water Temperature Chart (Approximate)
0
2
4
6
8
10
12
14
16
18
12345
Number of 8-ounce Glasses of Water
Water temperature has stabilized for at least 12 hours in water reservoir
Fresh food compartment temperature is 3-4 degrees Celsius
Temperature in Celsius
90° Ambient
Normalized 39°
64° Ambient
Normalized 39°
SOLENOID
VALVE
(DOUBLE)
1/4" O.D.
PLASTIC
TUBING
ICE & WATER
DISPENSER
1/4" O.D. X 5/16" O.D.
PLASTIC COMPRESSION
UNION
ICE MAKER
1/4" O.D.
PLASTIC
TUBING
WATER
RESERVOIR
5/16" O.D.
PLASTIC
TUBING
INCOMING WATERINCOMING WATER
LINE CONECTIONLINE CONECTION
(HOSE COUPLING(HOSE COUPLING
X 1/4" O.D.X 1/4" O.D.
COPPER TUBECOPPER TUBE
FITTINGFITTING
1/4" O.D.
PLASTIC
TUBING
