4.3 Control levers (ill. 6)
1. Throttle hand lever
For starting and stopping the engine, bring lever into idling position.
2. Empty hopper
To empty the hopper, pull the lever to the rear in order to bring it into
the operational position. Then push the lever forward to reposition.
3. Lowering/lifting the hopper
To lift the hopper, pull the lever to the rear. To lower the hopper, push
the lever to the front.
ATTENTION!
Never drive with the hopper raised.
Danger of tipping over!

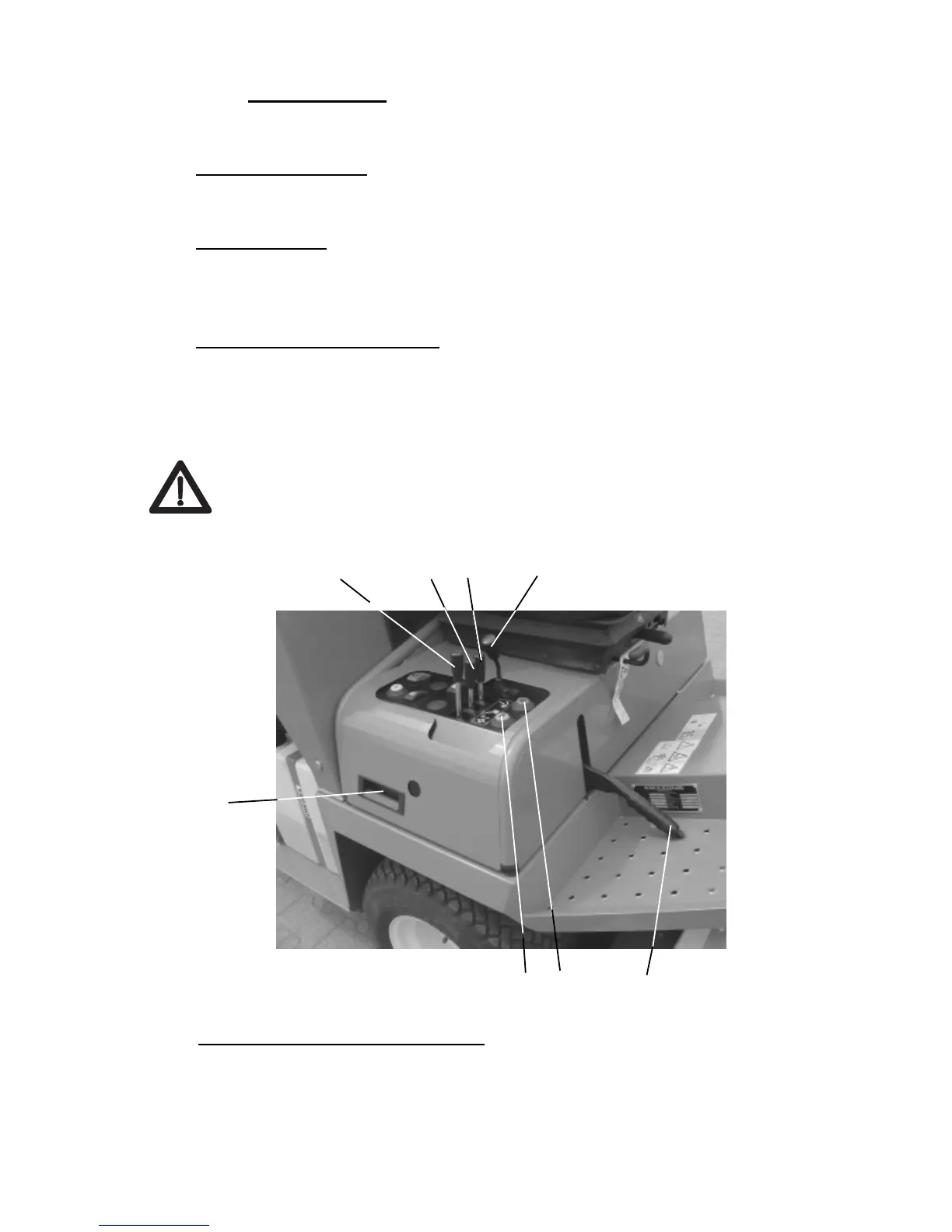

ill. 6
4. Lifting/lowering the mowing unit
To lift the mowing unit, pull the lever to the rear, to lower, push the
lever to the front. In operational position (mowing etc. . . . ), the lever
has to catch in the front position. Hereby the mowing unit remains in a
floating position to follow the ground contours.
7
5
6
4
1
2
3
8
