41
7.2.5

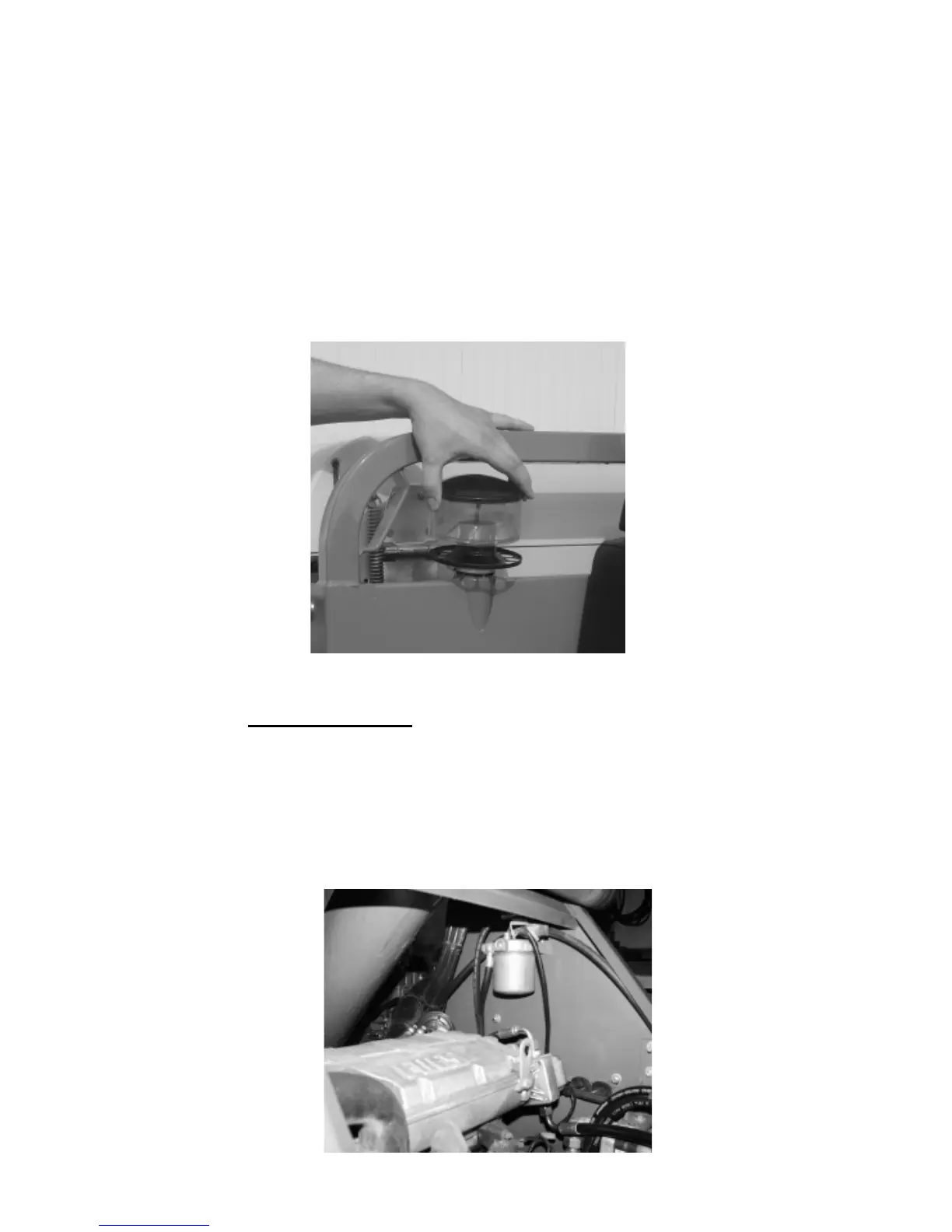

Fuel filter (ill. 19)
The fuel filter should be changed every 250 working hours, or at least,
however
, once a year
.
For further hints, please refer to the instruction manual of the engine
manufacturer LOMBARDINI.
The air filter is equipped with a primary filter which should be cleaned daily
.
•
Remove thumb nut
•
Remove cover
•
Clean dust container (ill. 18)
•
Reassemble the primary filter in the reverse order
.
ill.18
ill. 19
40
42
