Ambient Weather WH31LA User Manual

Version 1.0 ©Copyright 2020, Ambient LLC. All Rights Reserved. Page 3
4. Setup Guide
4.1 Batteries and Dip Switches
The leak detector requires 2 x AAA batteries (not included). We recommend Energizer Lithium
batteries for longer life and a wider operating temperature range.

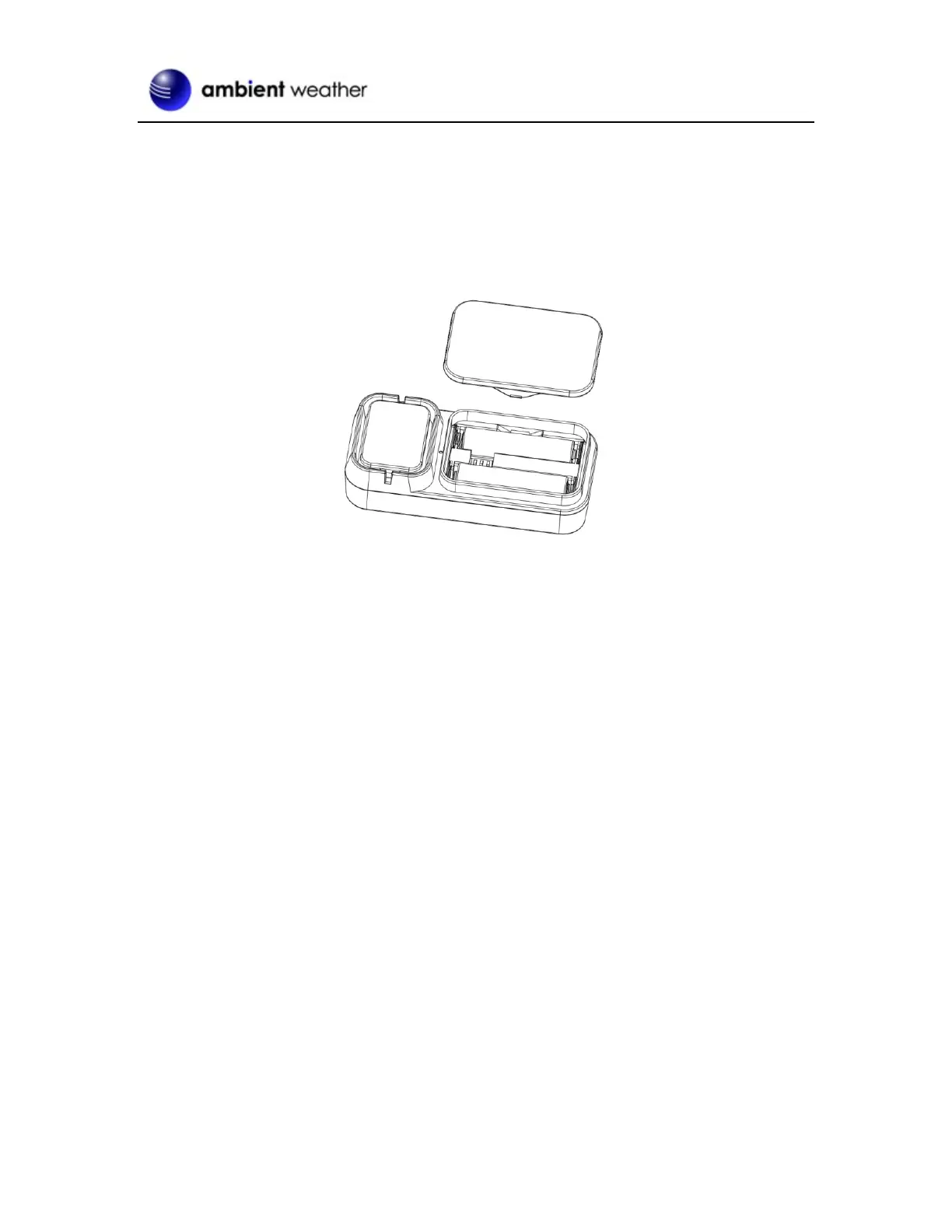

 Remove the battery door as shown in Figure 2.
Figure 2
 Before inserting the batteries, find the dip switches instruction above the battery compartment
and set the sensor sensitivity level and channel number:
Sensitivity Level: To change the sensor sensitivity of detection (High or Low), change Dip Switch 3,
as referenced in Figure 3.
High sensitivity: The water leakage alarm will be triggered when the detected water leak capacitance
value equals to or over 60PF and be muted when the value equals to or lower 50PF.
Low sensitivity: The water leakage alarm will be triggered when the detected water leak capacitance
value equals to or over 90PF and be muted when the value equals to or lower 80PF.
Channel Number: This device supports up to four sensors. To set each channel number, change Dip
Switches 1 and 2 , as referenced in in Figure 3.
