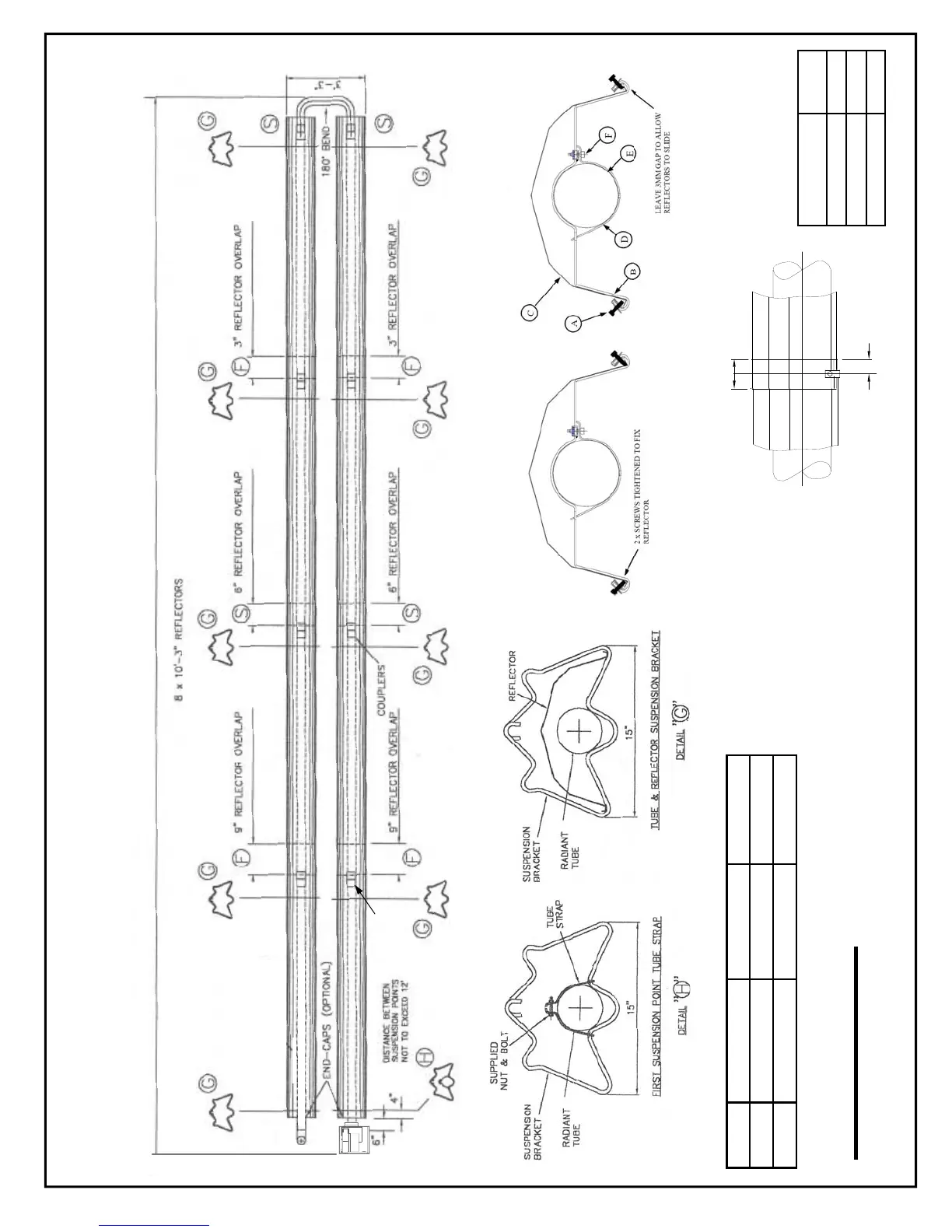

“VPLUS” SERIES INFRARED GAS HEATER
1st COUPLER*
AMBIRAD
FIXED JOINT DETAIL SLIDING JOINT DETAIL
SERIES COMBUSTION TUBE REMAINING TUBES REFLECTORS
SC 4” ALUMINISED STL. 4” MILD STEEL ALUMINIUM
ER 4” ALUMINISED STL. 4” MILD STEEL STAINLESS STEEL
“U80”
REFLECTOR OVERLAP
2" (50) MINIMUM
C
L
* NOTE:
20’ MINIMUM OF ALUMINISED STEEL COMBUSTION TUBES CONNECTED
BY HIGH TEMPERATURE STAINLESS STEEL COUPLING AS SHOWN ON
PAGE 34, FOR ALL VPLUS170, 200 AND 225 HEATERS
MODEL NUMBER
BTU/HR
VPLUS170-U80 169,000
VPLUS200-U80 200,000
VPLUS225-U80 222,500
42’1½” NOMINAL OVERALL ASSEMBLED LENGTH
