Amco Veba 601T - Page 180

D-54

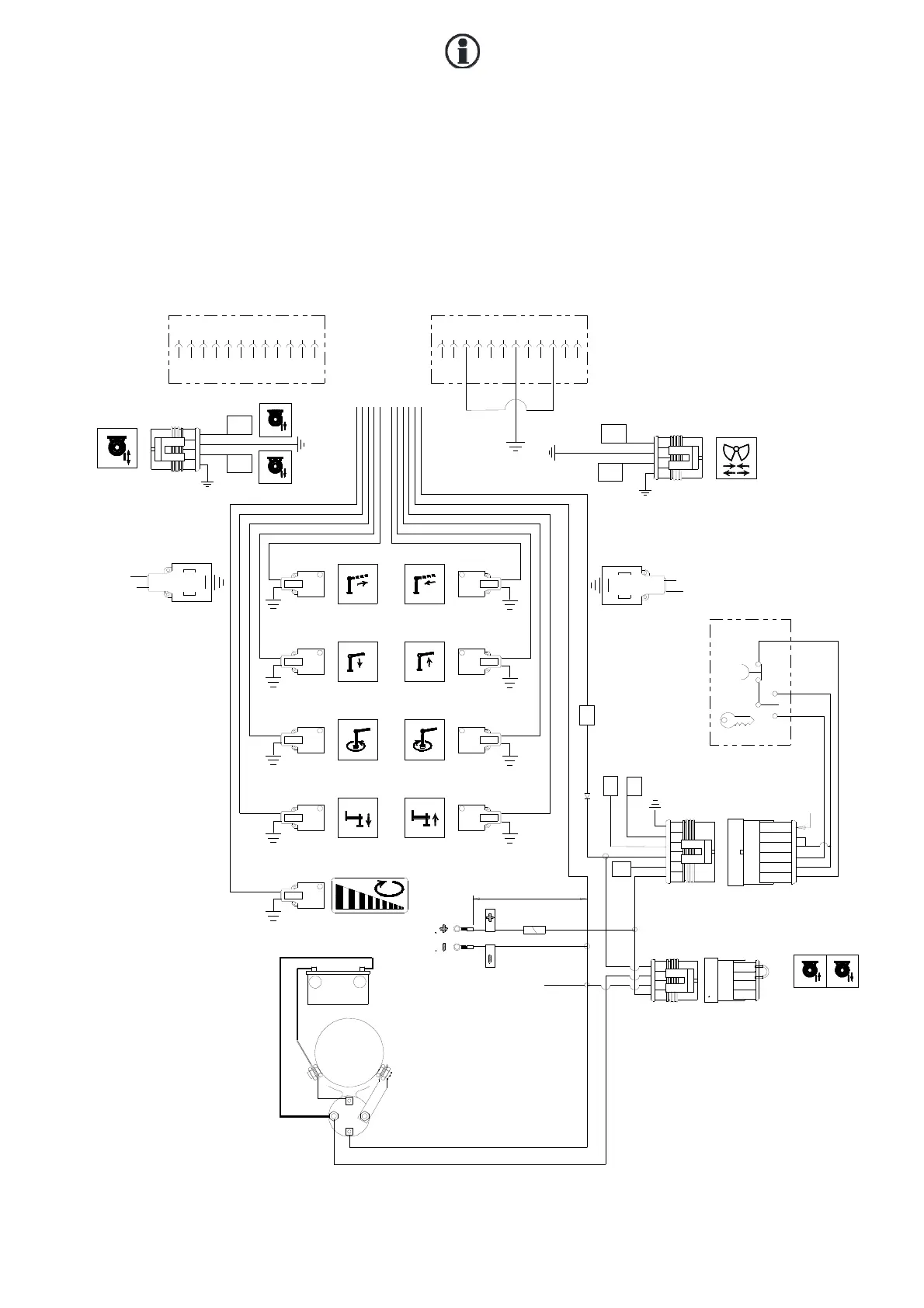

SCHEMA ELETTRICO ETR
COMANDI RRS
[3.31.0183]
ELECTRIC DIAGRAM, ETR
RRS CONTROLS
[3.31.0183]
600T
STROMKREISSCHEMA ETR
RRS STEUERUNG
[3.31.0183]
12345
MAN RADIO
6
STOPFEN PLUG TAPPO
A1
A3
A9
B2
B4
B11
A4
A10
A12
+
-
PWR
54312
B9
B8
B6
FUSE
10A
6
3214
IN 5404
3
2
1
4
A2
A11
500
1234
B1
1
2
1
2
3
2
1
4
A6
A7
1 2 3 6 7 11 12 4 5 10 9 8
WHITE CONNECTOR
WEISSE ANSCHLUSS
CONNETTORE BIANCO
580.10120
HETRONIC
A
1 2 3 6 7 11 12 4 5 10 9 8
CONNETTORE NERO
BLACK CONNECTOR
SCHWARZE ANSCHLUSS
B
RADIO
STOP
STOP
M
-
+
+
-
