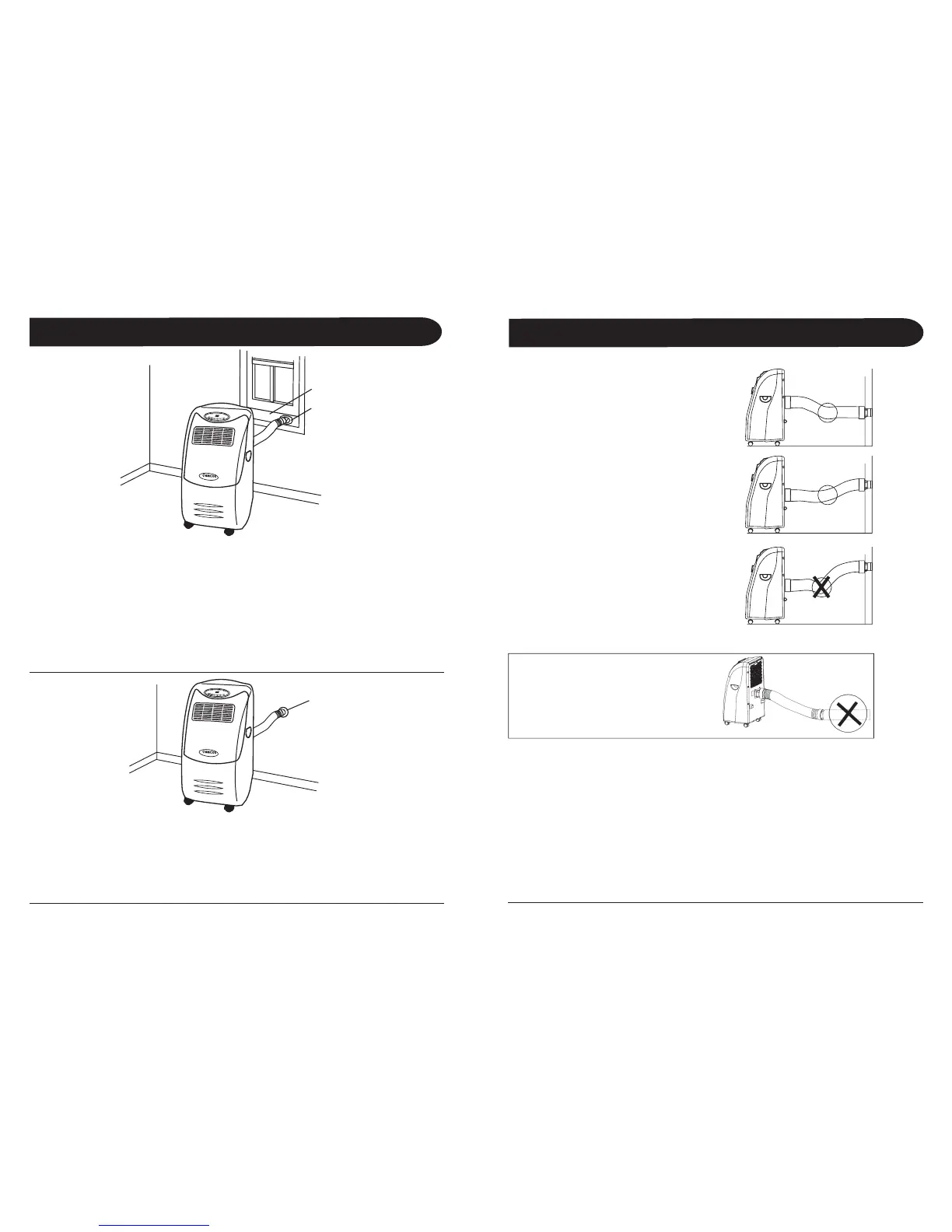

Mounting the Exhaust Pipe
• The supplied Exhaust Hose can be
extended from 1 foot to 5 feet
for mounting. It is recommended that
you use the shortest possible length of Hose.
• Take care to prevent any kink or
bend in the middle of the Exhaust
Hose, as this will trap hot exhaust air,
which will radiate back into the room.
Use a vacuum cleaner or tap the filter lightly to remove loose dust and dirt from the filters
and then rinse them thoroughly under running water (no hotter than 104ºF)
Dry thoroughly before replacing.
Notice! Never operate the unit without the filters.
In order for this unit to function
properly, it must be vented to the
Fitting the Exhaust Hose through
the window is easy. Please see
1. Extend Hose at least 6" and
insert it into back of the unit,
tightening into place by turning
2. Attach Slide Bar Connector,
extending hose at least 6".
Then tighten Hose by turning
3. Place Adjustable Slide Bar in
the window and expand so it
5. Make sure the Hose has
Slide Bar has 3 sections which
allows installation in windows up
1. Make a hole (5.1" in diameter)
2. Insert the Round Connector
(part #13) into the hole and
hold in place by using 4 small
3. Extend one end of the Exhaust
Pipe (part #11) and screw into
4. Extend other end of exhaust
pipe and screw in Adaptor (part
#10) by turning clockwise.
5. Push Adaptor to fit firmly
over the opening on the back
** When not in use, cover the
The length of the Exhaust Pipe is specially
designed according to the specification of
Do not replace or extend it with your own hose
as this could cause the unit to malfunction.
To Next Page
