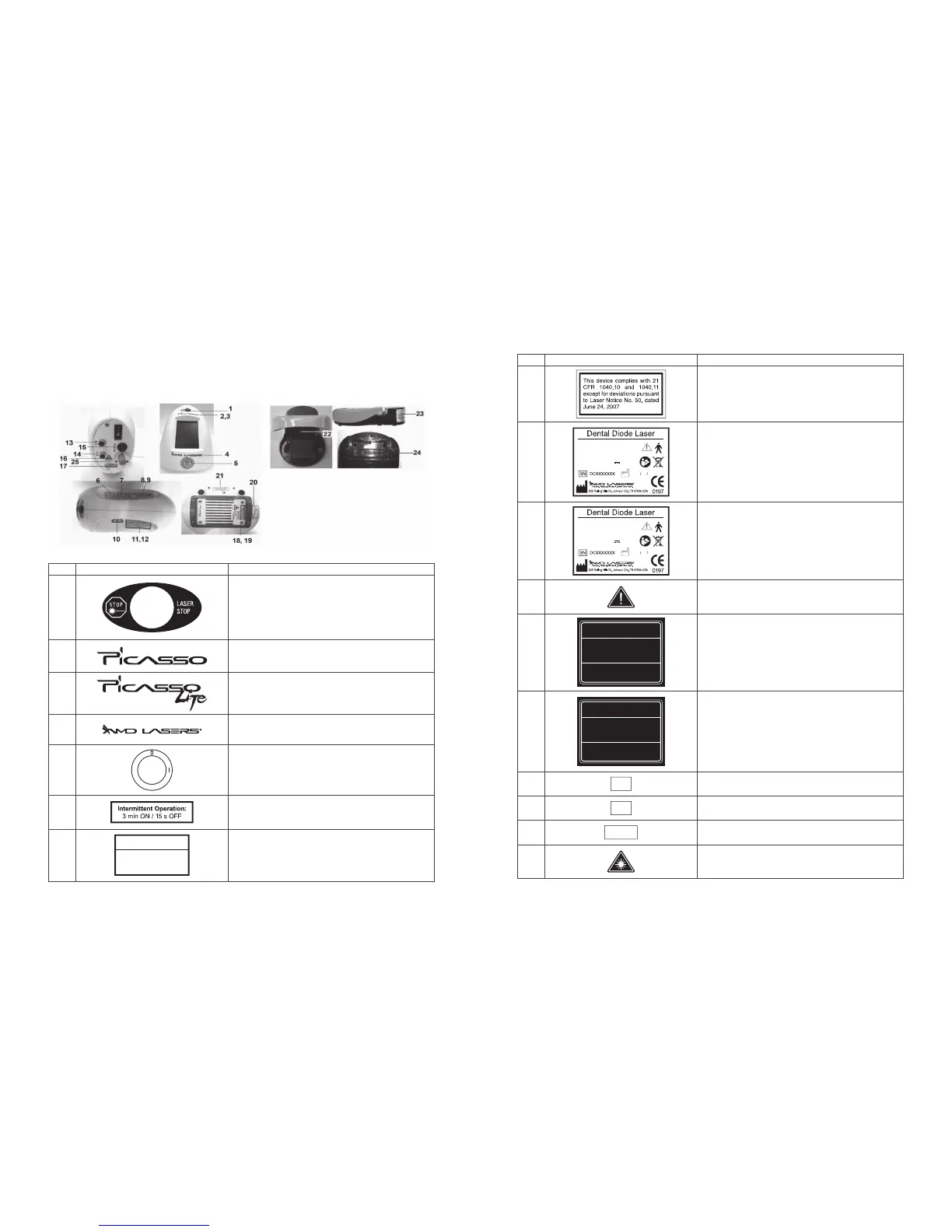

ANNEX A: LABELS
BELOW LIST THE LABELS AND THEIR PRESCRIPTIVE PLACE
ITEM SYMBOL DESCRIPTION
1
Emergency Laser Stop
2
Picasso Logo
3
Picasso Lite Logo
4
AMD LASER Logo
5
Laser Key Switch
6A
Intermittent Operation Label (Picasso Lite)
6B
0.5W~4.9W
5.0W~7.0W
Duty Cycle 5 min continuous
4 min in standby or off
Continuous
Operation
Intermittent
Operation
Intermittent Operation Label (Picasso)
ITEM SYMBOL DESCRIPTION
7
CDRH Laser Notice 50 Compliance Label
8
Model:
Wavelength:
Output Energy:
Input:
Picasso
810 nm ± 10 nm
0.5 W ~ 7.0 W
9V 5A
Manufacture Label (Picasso)
9
Model:
Wavelength:
Output Energy:
Input:
Picasso Lite
810 nm ± 10 nm
0.5 W ~ 2.5 W
9V 5A
Manufacturer Label (Picasso Lite)
10
Warning Label
11
810 nm, Max 7.0 W
Pulse Duration: 20 ms–9.9 sec
630–670 nm, Max 5 mW
Continuous Radiation
Working Beam:
Aiming Beam:
VISIBLE AND INVISIBLE LASER
RADIATION
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
CLASS 4 LASER PRODUCT
IEC 60825-1:2007
IEC 60601-2-22:2007
IEC Explanatory Label (Picasso)
12
810 nm, Max 2.5 W
Pulse Duration: 30 ms
630–670 nm, Max 5 mW
Continuous Radiation
Working Beam:
Aiming Beam:
VISIBLE AND INVISIBLE LASER
RADIATION
AVOID EYE OR SKIN EXPOSURE TO
DIRECT OR SCATTERED RADIATION
CLASS 4 LASER PRODUCT
IEC 60825-1:2007
IEC 60601-2-22:2007
IEC Explanatory Label (Picasso Lite)
13
R.C.
Remote Control
14
F.S.
Foot Switch
15
DC 9V, 5A
SPEC for DC Input
16
Warning for Laser Aperture Port
