AMD 760G User Manual

7
7

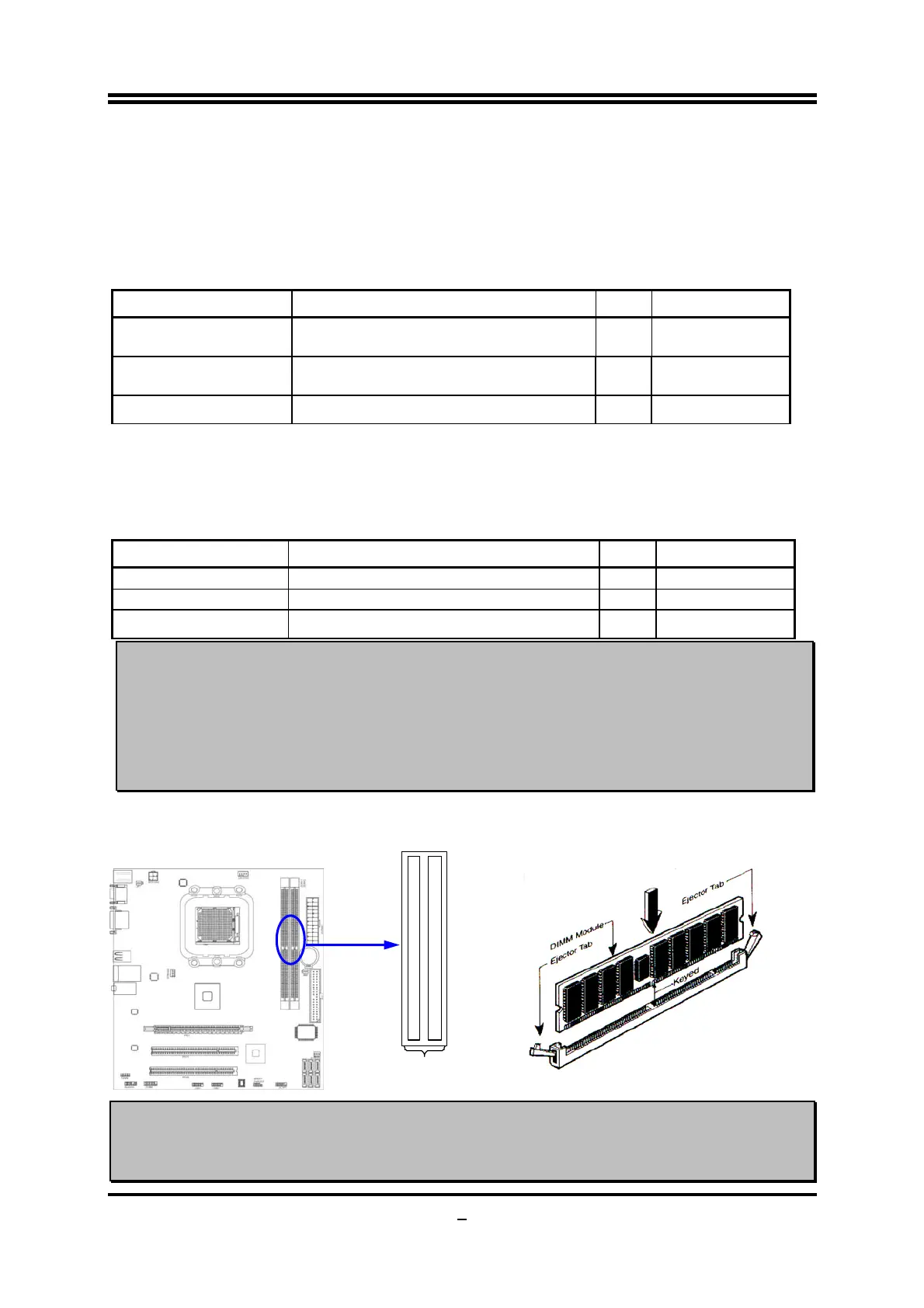

2-2 Install Memory
Model
PA76GM5-LF
provides two 240-pin DDRII DUAL INLINE MEMORY
MODULES (DIMM) socket for DDRII memory expansion to maximum memory
volume of 8GB DDRII SDRAM.
Valid Memory Configuration for PA76GM5-LF
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1(DDRII 1)
DDRII 400/DDRII 533/DDRII 667/DDRII
800/DDRII 1066
X1 4GB
Bank 2, 3(DDRII 2)
DDRII 400/DDRII 533/DDRII 667/DDRII
800/DDRII 1066
X1 4GB
Total Memory (Max.4GB)
2 8GB
Model
PA76GM5D3-LF
provides two 240-pin DDRIII DUAL INLINE MEMORY
MODULES (DIMM) socket for DDRIII memory expansion to maximum memory
volume of 8GB DDRIII SDRAM.
Valid Memory Configuration for PA76GM5D3-LF
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DDRIII 1) DDRIII 800/DDRIII 1066/DDRIII 1333 X1 4GB
Bank 2, 3 (DDRIII 2) DDRIII 800/DDRIII 1066/DDRIII 1333 X1 4GB
Total Memory (Max.4GB)
2 8GB
Dual channel Limited!
1. Dual channel function only supports when 2 DDRII Modules plug in both DDRII 1 &
DDRII 2 for Model PA76GM5-LF or 2 DDRIII Modules plug in both DDRIII1 & DDRIII2
for Model PA76GM5D3-LF.
2. Memory modules must be of the same type, same size, and same frequency for dual
channel function.
Install DDRII modules of PA76GM5-LF or DDRIII modules of PA76GM5D3-LF to
your motherboard are not difficult, you can refer to figure below.
DIMM
2
(BANK2+BANK3)
DIMM 1 (BANK0+BANK1)
Dual Channel
Su
pp
orted
NOTE!
When you install DIMM module fully into the DIMM socket the eject
tab should be locked into the DIMM module very firmly and fit into its
indention on both sides.

AMD 760G Specifications

General

Chipset	AMD 760G
Chipset Manufacturer	AMD
PCI Express Version	2.0
Socket Type	AM3
CPU Socket	Socket AM2/Socket AM2+/Socket AM3
Memory Type	DDR3
Max Memory	16GB
USB Ports	12
SATA Ports	6
Integrated Graphics	ATI Radeon 3000
