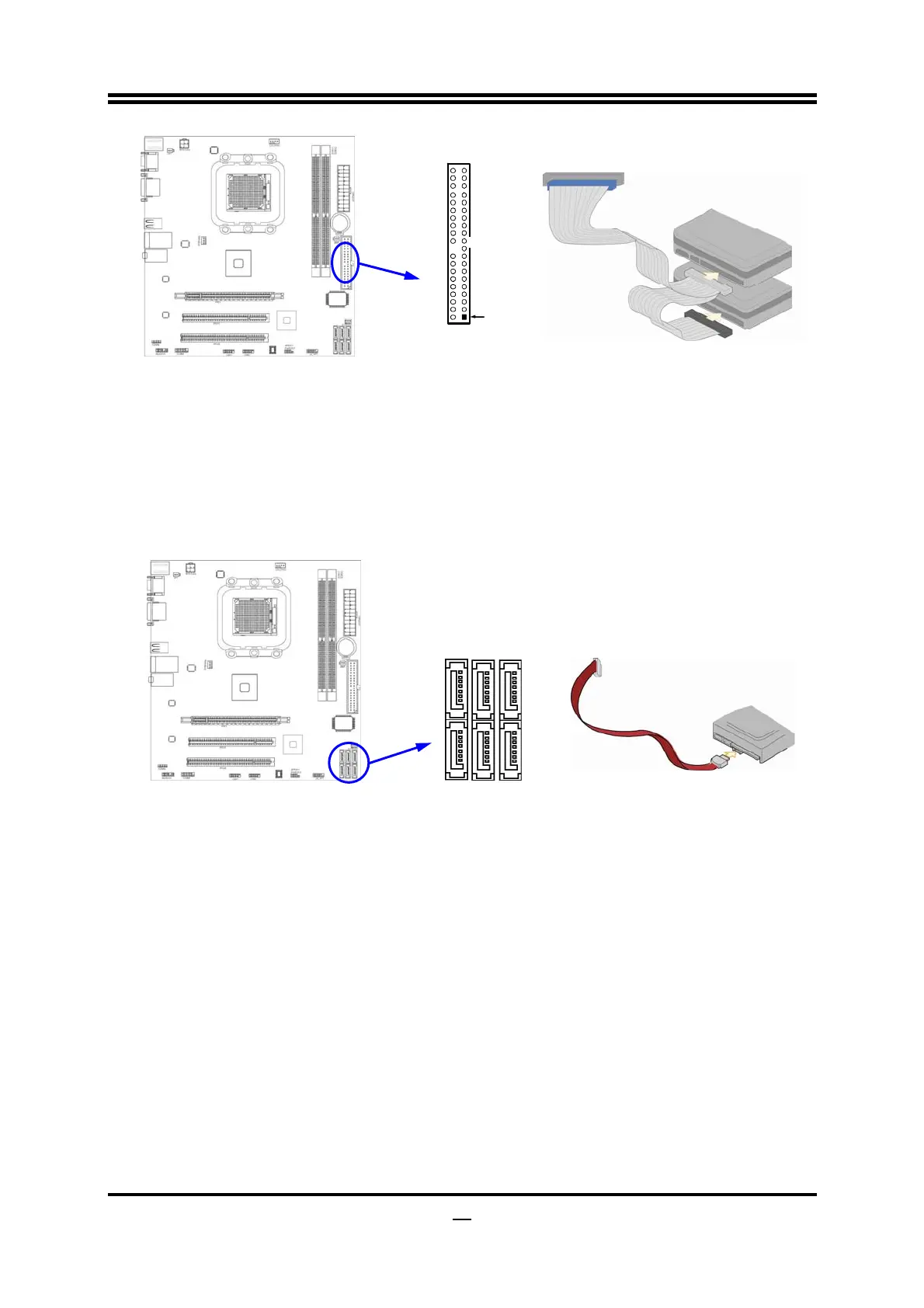

IDE1 Connector
Pin 1
IDE1
•
Two hard disks can be connected to each connector. The first HDD is referred to
as the “Master” and the second HDD is referred to as the “Slave”.
•
For performance issues, we strongly suggest you don’t install a CD-ROM or
DVD-ROM drive on the same IDE channel as a hard disk. Otherwise, the system
performance on this channel may drop.
(8) Serial-ATAII Port connector: SATA1,SATA 2,SATA3, SATA4, SATA5, SATA6
This connector supports the provided Serial ATA2 IDE hard disk cable to
connecting the motherboard with serial ATAII hard disk.
(9) D-Sub 15-pin Connector: VGA
VGA connector is the 15-pin D-subminiature female connector; it is for the display
devices, such as the CRT monitor, LCD monitor and so on.
(10) Digital Visual Interface: DVI
This interface standard designed to maximize the visual quality of digital display
devices such as flat panel LCD computer displays and digital projectors.
