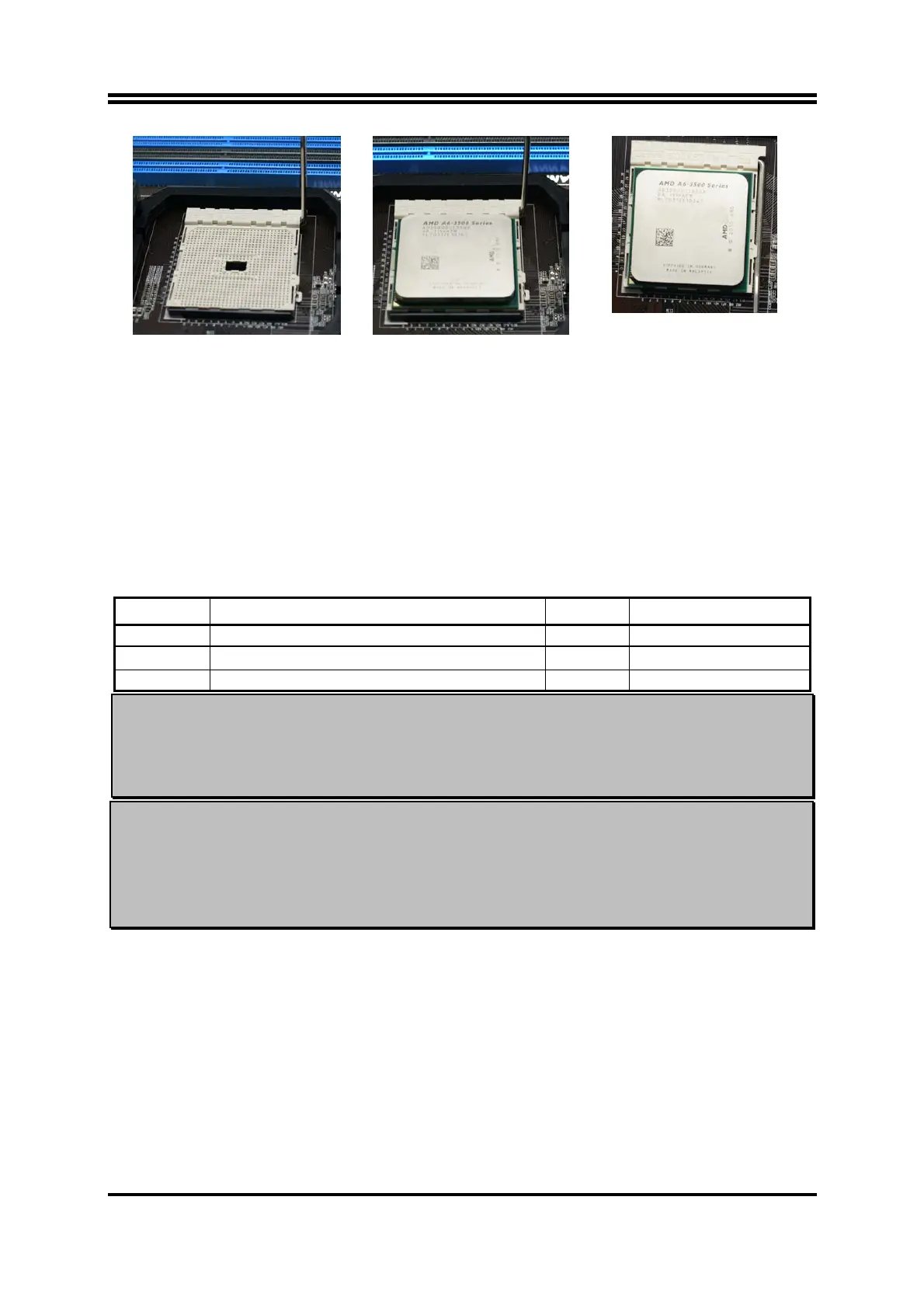

4. Open the socket by
pulling the level
sideways away from the
socket and then upwards
to a 90-degree angle.
5. Insert compatible APU
into APU socket and see
to it that APU Pin-1
should be matched into
APU socket Pin-1 during
installation.
6. Put the level to the
original place of the
socket. Make sure that
the notched corner
should point towards
the end of the level.
2-4 Memory Installation
This motherboard provides two 240-pin DDR III SDRAM DUAL INLINE MEMORY
MODULES (DIMM) socket for DDRIII memory expansion to maximum memory
volume of 8GB.
Valid Memory Configuration
Bank 240-Pin DIMM PCS Maximum Capacity
DIMM1
DDR III 800/1066/1333/1600/1866
X1 4 GB
DIMM2
DDR III 800/1066/1333/1600/1866
X1 4GB
Total System Memory (Max.4GB) 2 8GB
Recommend DIMM Module Combination
1.
One DIMM Memory Module ----Plug in DIMM 1.
2.
Two DIMM Memory Modules---Plug in DIMM1 and DIMM2 for Dual channel
function.
Dual channel Limited!
1. Dual channel function only supports when 2 memory modules pluged in both
DIMMI1 & DIMM 2.
2. Memory modules plugged in DIMMI1 & DIMM 2 must be of the same type, same
size, and same frequency for dual channel function.
Install DDRIII modules to your motherboard is not difficult, you can refer to figure
below to see how to install DDRIII 800/1066/ 1333/1600/1866 SDRAM module.
