43
22914B/0—September 1999 A Guide to Building a PC with an AMD Athlon™ Processor
Step 24. Check the Processor Module Installation

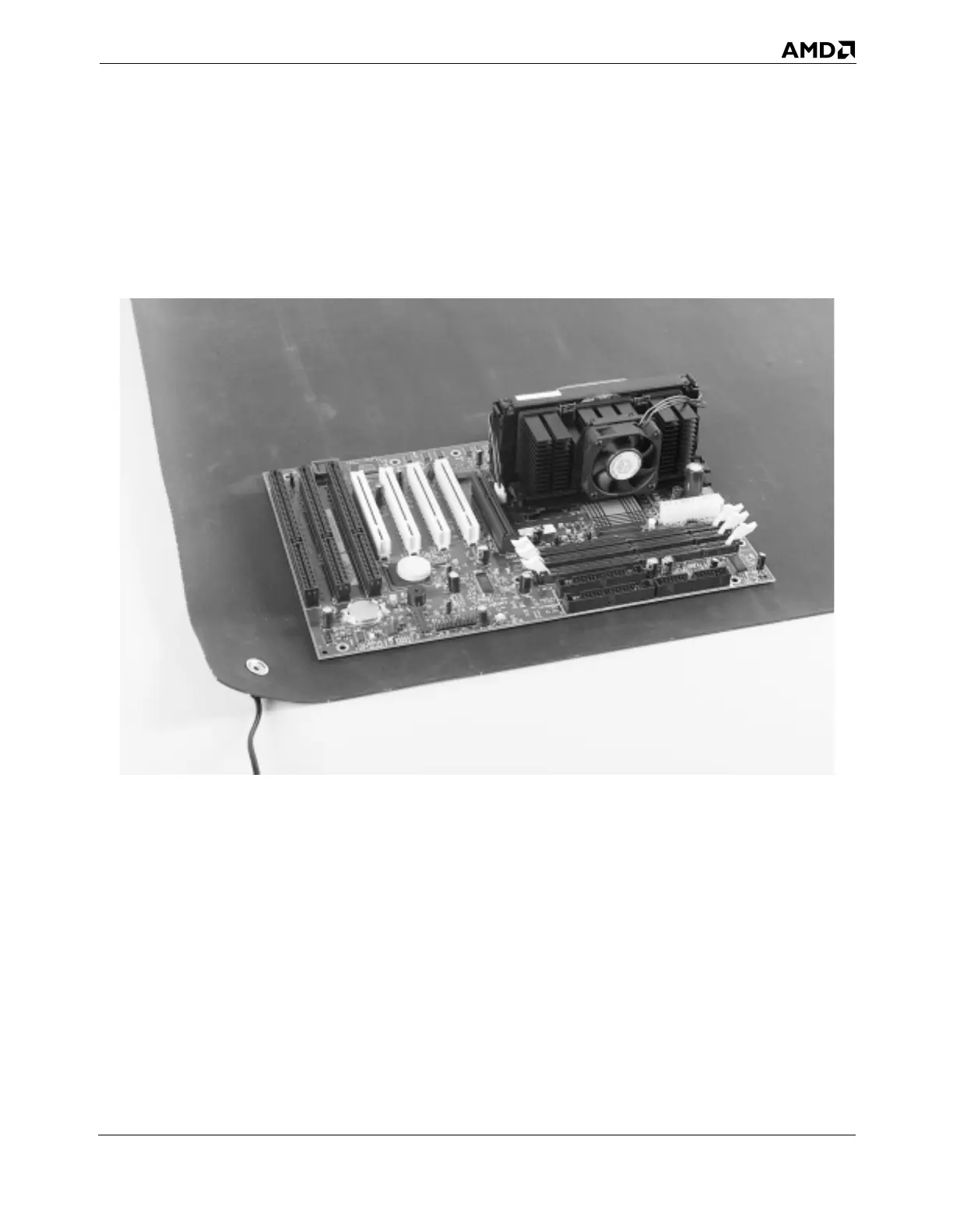

When you are finished, the processor module should look like Photo 35. Notice the
relative location of the processor module case and retention brackets. If properly
installed, the processor module will be securely attached to the system board.
Photo 35. Processor Module Installed
