Step 28. Connect and Route Power Cables
The first cable to install is the pass-through cable for the processor exhaust cooling
fan. This cable has male and female connectors and is designed to go between the end
of the power lead from the power supply and the power connector on one of the drives.
As you can tell from Photo 40, the ends of the power cables are very different. The
cable can only be installed one way because of the keys.
Install this cable between the power supply and the CD-ROM drive. The CD-ROM
drive does not draw much power on a sustained basis.

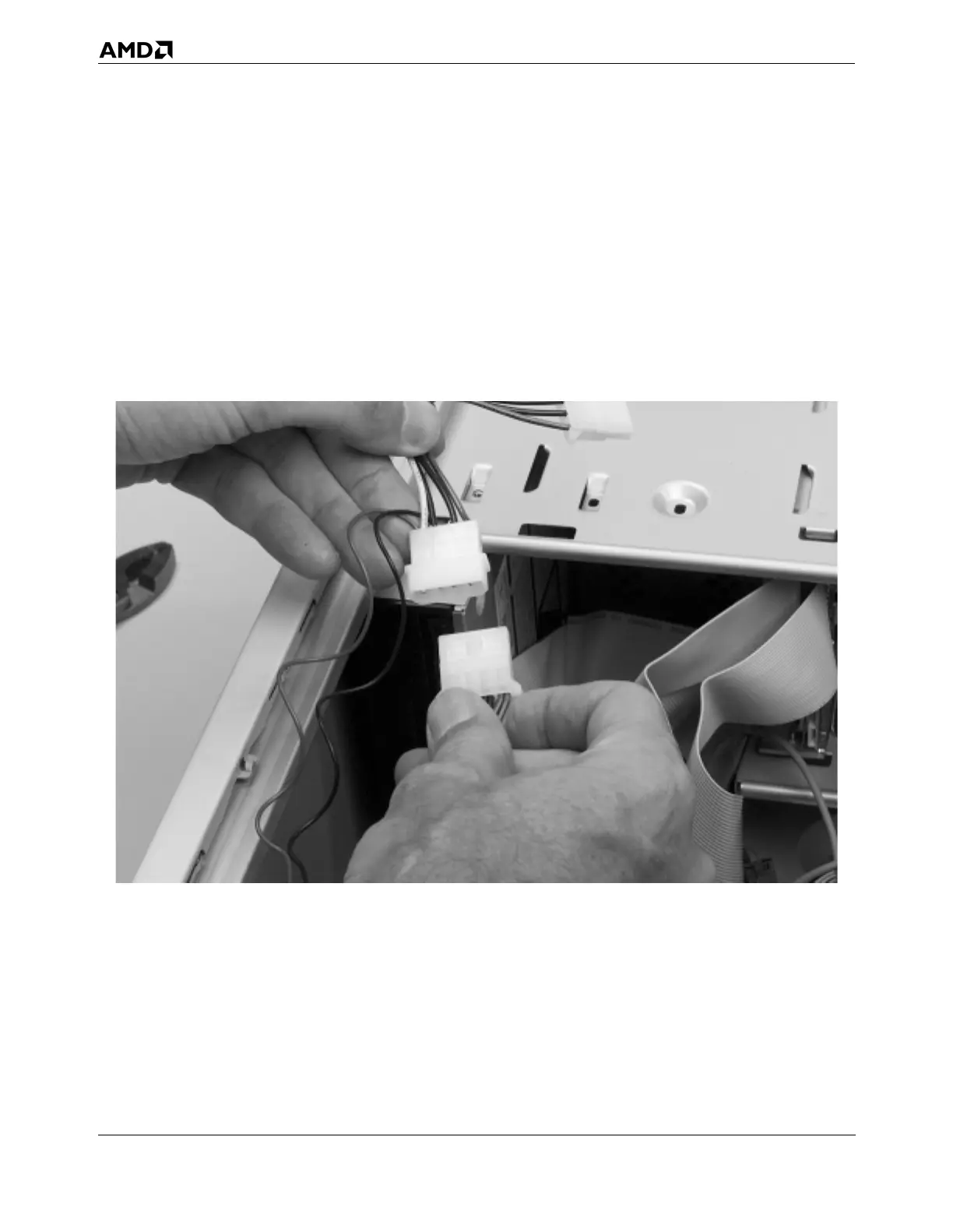

Photo 40. Power Cable Pass-Through for the Exhaust Fan
