AMD FM2+ User Manual

PKQl9 FM2• CPUs M'I! ONLV compR1b1t ..en, socttt FM2• mo~s
•aa FM:l •"'--Ra811•FM:l•H
Pacote AM3 ♦ CPUs~ONLV«lfflpadblltwlthsocntAM3• ~
•aa-.,i,- ■■ Ra811•-.*•
Paclc.lpo AM4 CPUs we OHLV compntb61! with socket AM4 ~rds
•a•-"'--Ra811•-*•

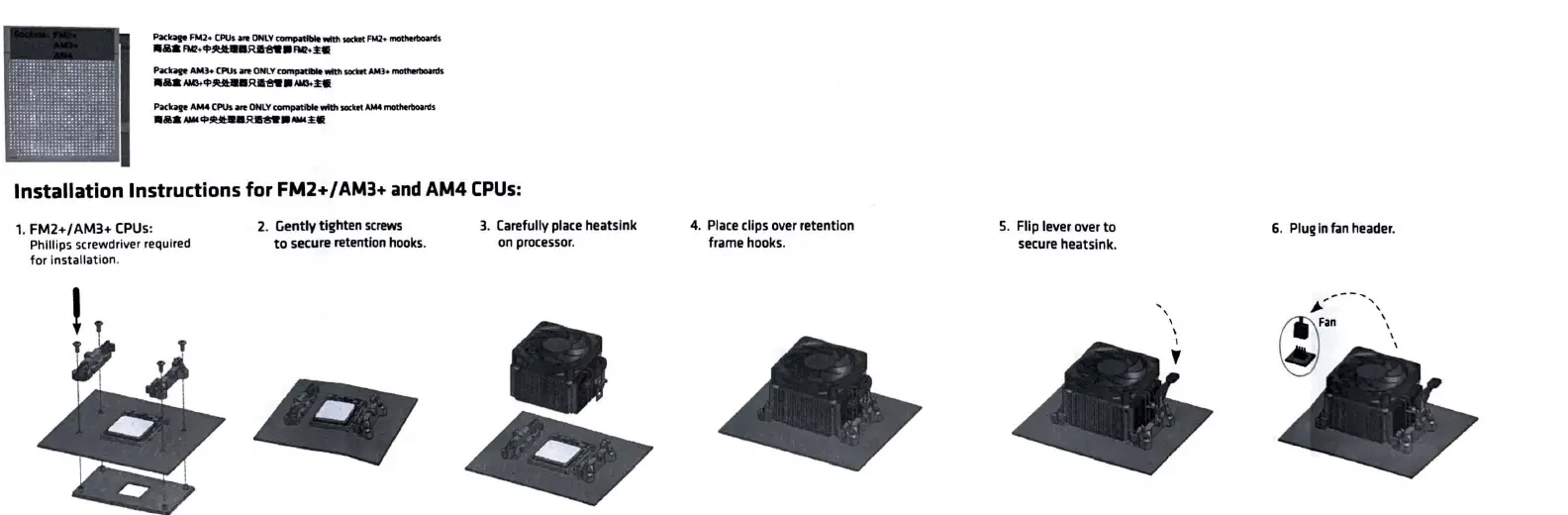

Installation Instructions for FM2+/ AM3+ and AM4 CPUs:
1. FM2+/AM3+ CPUs:
Phillips screwdriver required
for installation .
2. Gently tighten screws
to secure retention hooks.
3. Carefully place heatslnk
on processor .
4. Place clips over retention
frame hooks.
5. Flip lever over to
secure heatsink.
'
6. Plug in fan header .
\
\

AMD FM2+ Specifications

General

Socket Type	FM2+
Memory Support	DDR3
Supported Processors	AMD A-series and Athlon processors
Chipset Compatibility	A88X, A78, A68H
Memory Channels	Dual-channel
PCI Express Version	PCIe 3.0
Integrated Graphics Support	Yes (with compatible APUs)
TDP	Up to 95W, depending on the APU/CPU
