AMD FM2+ User Manual

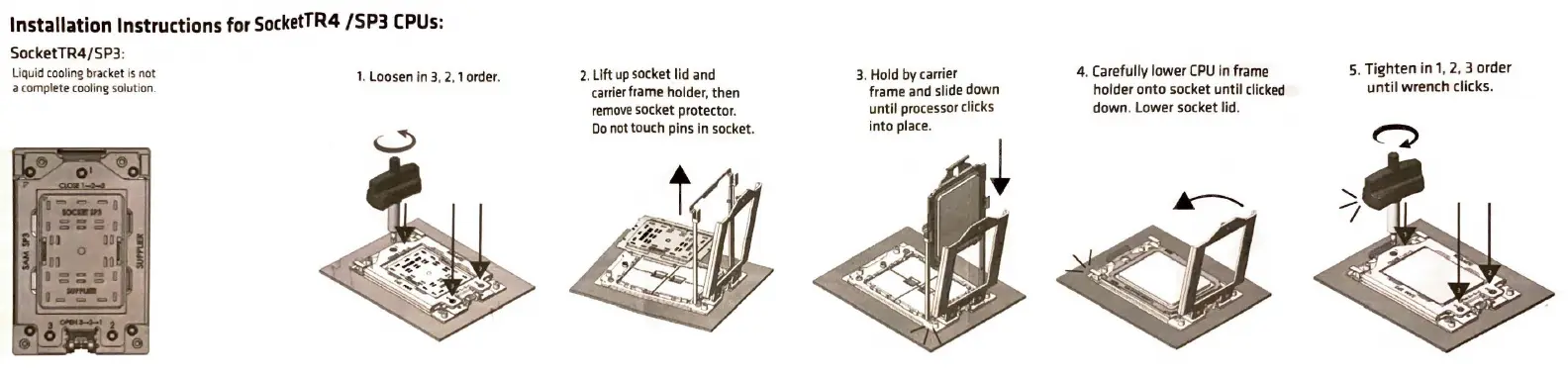

Installation Instruct io ns fo r SocketTR4 /SP3 CPUs :
So cketTR4/SP3:
Liquid cooling bracket is not
a complete co oling soluti on .
1. Loosen in 3, 2, 1 ord er.
2. Lift up socket lid and
carrier frame holder, then
remove socket protector.
Do not touch pin s in socket.
3. Hold by carrier
frame and slide down
until processor clicks
into place.
4. Carefully lower CPU in frame
holder onto socket until clicked
down. Lower socket lid.
S. Tighten in 1, 2, 3 order
until wrench clicks.

AMD FM2+ Specifications

General

Socket Type	FM2+
Memory Support	DDR3
Supported Processors	AMD A-series and Athlon processors
Chipset Compatibility	A88X, A78, A68H
Memory Channels	Dual-channel
PCI Express Version	PCIe 3.0
Integrated Graphics Support	Yes (with compatible APUs)
TDP	Up to 95W, depending on the APU/CPU
