AMD Radeon RX 5700 User Manual

3
Installation Overview
Once you have determined that your system meets the recommended minimum
requirements, perform the following tasks to install your new graphics card.
Detailed installation instructions are provided in the following sections.
If replacing an existing graphics card, uninstall the old graphics driver and software
before installing the new Radeon™ RX 5700 / Radeon™ RX 5700 XT graphics card.
NOTE: If you are using a motherboard containing an on-board graphics solution and do not intend to
use it as part of a multiple monitor configuration, disable it.
1. Turn o and disconnect your computer system from AC power.
2. If needed, remove any existing graphics card(s).
3. Install the new graphics card.
4. Reassemble and connect your computer system and display(s).
5. Start the computer system, install the AMD drivers and configuration software.
6. Restart the computer system.
Installing the Graphics Card

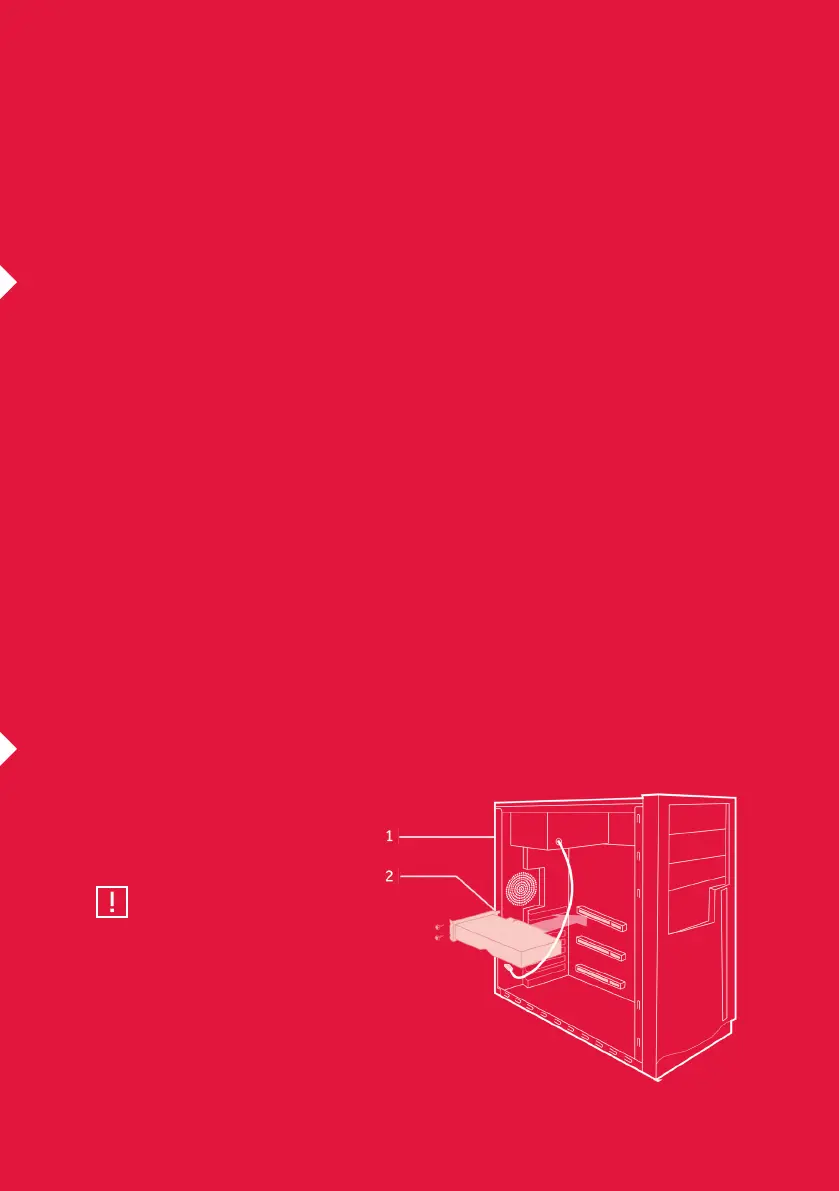

Power Connection Location
Hardware & Software
Installation
CAUTION:
Wait approximately 20 seconds after
unplugging the power cord before
disconnecting a peripheral cable or removing
a component from the motherboard to
avoid possible damage to the motherboard.
1. Power supply.
2. Graphics card.

AMD Radeon RX 5700 Specifications

General

Process Size	7 nm
Transistors	10.3 billion
Memory Size	8 GB
Memory Type	GDDR6
Base Clock	1465 MHz
Boost Clock	1725 MHz
Memory Clock	1750 MHz
Memory Bandwidth	448 GB/s
TDP	180 W
GPU	Navi 10
Die Size	251 mm²
Memory Interface	256-bit
Effective Memory Clock	14 Gbps
Compute Units	36
Stream Processors	2304
Texture Units	144
ROPs	64
DirectX	12
OpenGL	4.6
OpenCL	2.0
Vulkan	1.2
Shader Model	6.4
Bus Interface	PCIe 4.0 x16
PCI Express Version	4.0
Display Outputs	1x HDMI 2.0b, 3x DisplayPort 1.4
Architecture	RDNA
Power Connectors	1x 6-pin + 1x 8-pin
