INSTAllATION AND OPERATION MANUAl, MODEl AK-950
GPS 1 NAV SWITCHING & ANNUNCIATOR PANEl
PIN AK-950- GNS430/500W/530/530W
r
69
Ali Relays Coils {-ve)
{Ait GND Input = NO Positions)
{Open Circuit Input = NC Positions)
VLOC Ann.
~
62
VLOC White Annunc.
; GPS Annunc
2
66
GPS Green Annunc.
WPT Annunr
3
76
WPT Amber Annunc.
ÏfERM Ann.
4
77
TERM Green Annunc.
APR Annunc.
5
r--
73
APR Green Annunc.
MSG Ann.
6
75
MSG Amber Annunc.
OBS Annunc.
7
72
AUTO White Annunc.
AUTO Ann.
8
74
OBS Green Annunc.
COl Mom Sw
r·
67
COl Mom Switch
OBS Mom Sv
71
71
OBS Mom Switch
1
40
~- OC CROUNO
T
P4~~~1 ri· 78 -- + 14/28 VDC POW[R INPUT
+14/28V0CL) o-- vy
2A
1. Refer 16 GPS Monufaclurer's lnslallalion Monuol for Aclual lnslall'llion.
2. Ali Wires ore 24 AWG minimum.

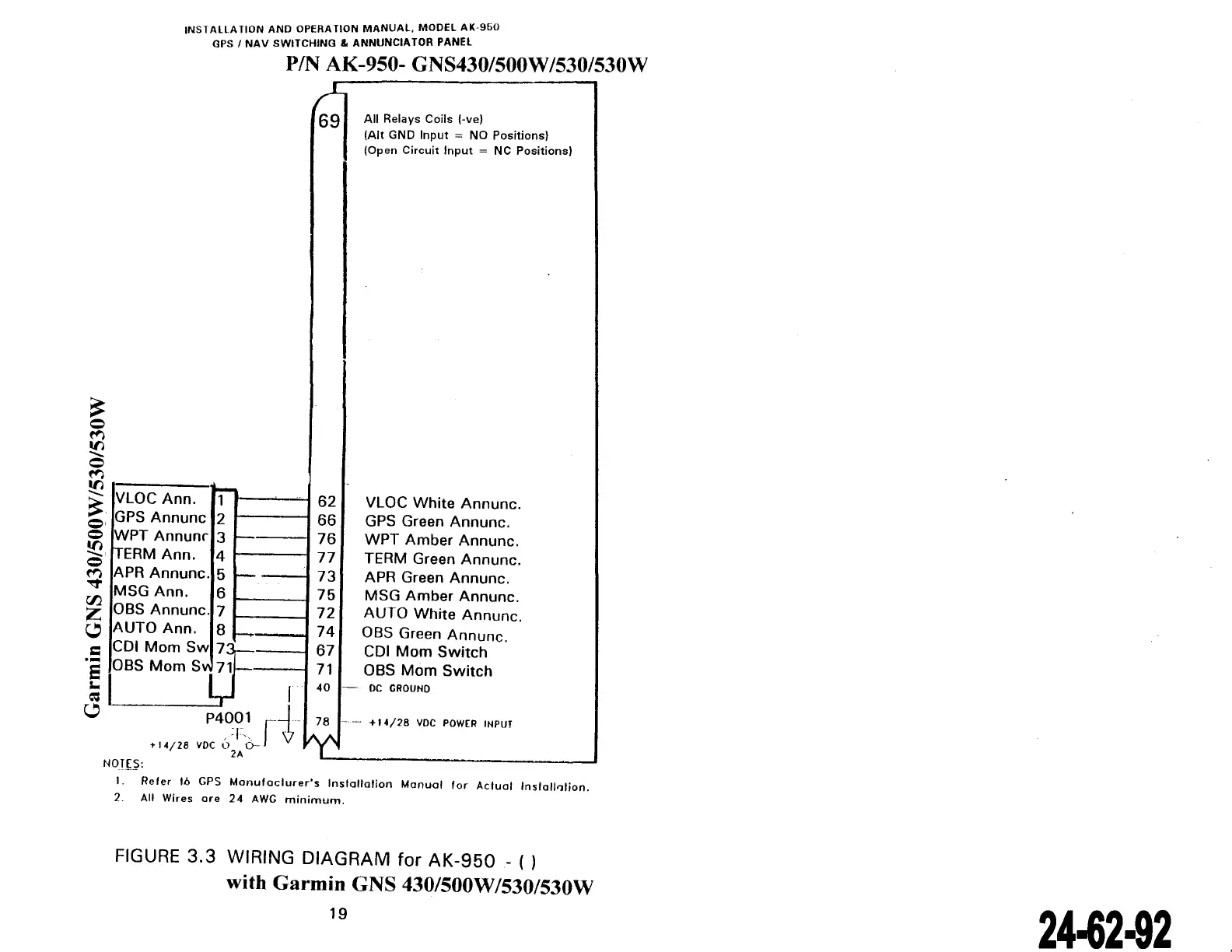

FIGURE 3.3 WIRING DIAGRAM for AK-950 - ( )
with Garmin GNS 430/500W/530/530W
