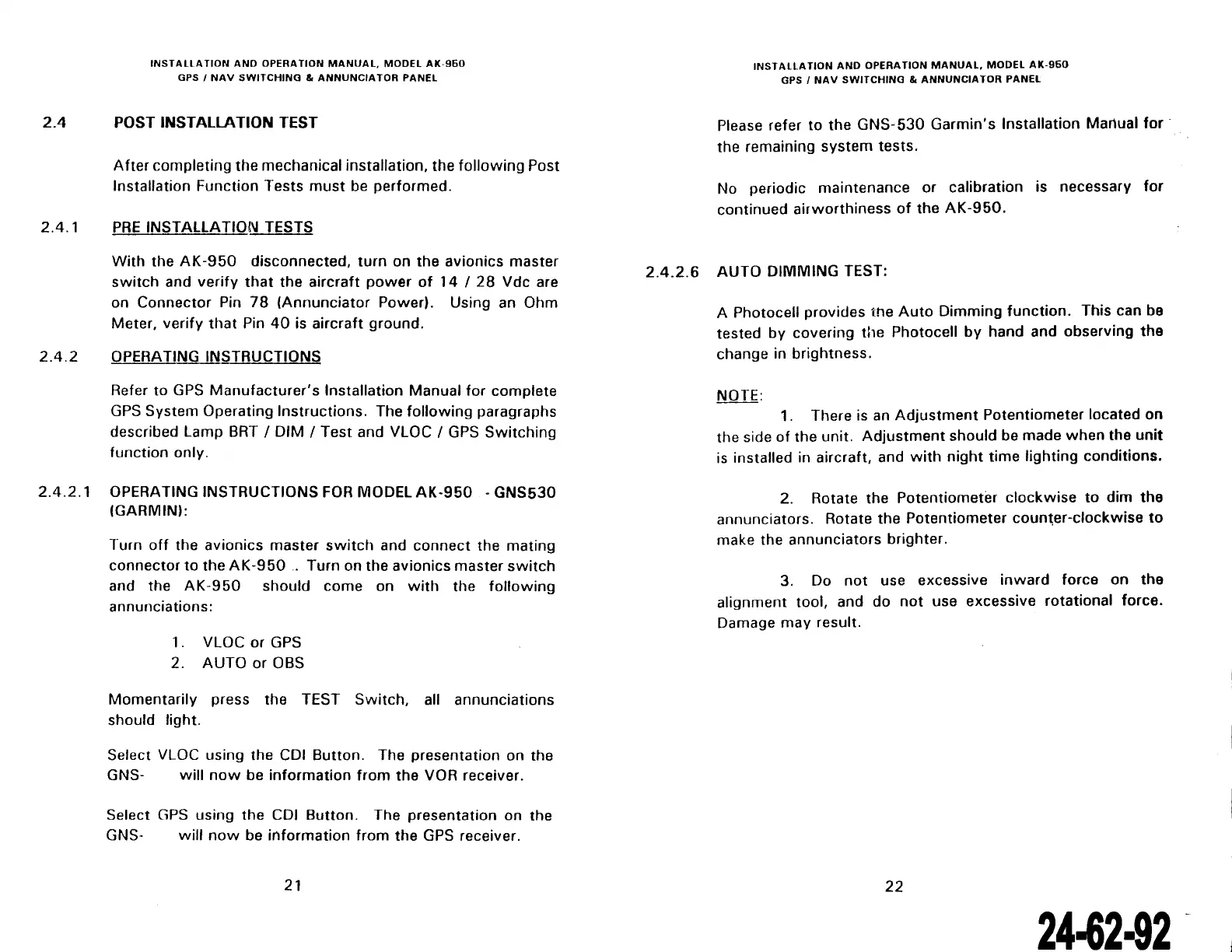

2.4
INSTAllATION
AND OPERATION
MANUAl,
MODEL
AK~960
OPS
1 NAV
SWITCHINO
& ANNUNCIATOR
PANEl
POST INSTALLATION TEST
After
completing
the mechanical installation, the
following
Post
Installation Function Tests
must
be
performed.
2.4.1
PRE
INSTAllATION
TESTS
2.4.2
With
the
AK-950
disconnected,
turn
on the avionics
master
switch
and
verity
that
the
aircraft
power
of
14
1 28 Vdc are
on
Connector
Pin
78
(Annunciator
Power). Using an
Ohm
Meter,
verity
that
Pin
40
is
aircraft
ground.
OPERATING INSTRUCTIONS
Re
fer
to
GPS
Manufacturer'
s Installation Manual
for
complete
GPS
System Operating
Instructions.
The
following
paragraphs
described
lamp
BAT 1 DIM 1
Test
and
VlOC
1 GPS
Switching
function
only.
2.4.2.1
OPERA TING INSTRUCTIONS
FOR
MO
DEl
AK-950
-
GNS530
(GARMIN):
Turn
off
the avionics
master
switch
and
connect
the
mating
connector
ta
the
AK-950
..
Turn
on
the avionics
master
switch
and the
AK-950
should corne on
with
the
following
annunciations:
1 . VLOC
or
GPS
2.
AUTO
or
OBS
Momentarily
press the TEST
Switch,
ali annunciations
should
light.
Select VLOC using the COl
Button.
The
presentation
on the
GNS-
will
now
be
information
from
the VOR receiver.
Select
GPS
using the COl
Button.
The presentation on the
GNS-
will
now
be
information
from
the
GPS
receiver.
21
INSTAllATION
AND OPERATION
MANUAl,
MODEl
AK~960
OPS
1 NAV
SWITCHINO
& ANNUNCIATOR PANEL
Please
ret
er ta the GNS-
530
Garmin' s Installation Manual
for
·
the remaining
system
tests.
No periodic maintenance
or
calibration is necessary
for
continued
airworthiness
of
the
AK-950.
2.4.2.6
AUTO
DIMMING
TEST:
A Photocell provides the
Auto
Dimming
function.
This can be
tested
by
covering
the
Photocell
by
hand and observing
the
change in
brightness.
NOTE:
1 . There is
an
Adjustment
Potentiometer
located
on
the side
of
the unit.
Adjustment
should be made
when
the
unit
is installed in aircraft, and
with
night
time
lighting
conditions.
2. Rotate the PotentiometElf
clockwise
ta
dim
the
annunciators. Rotate the
Potentiometer
coun~er-clockwise
ta
make the
annunciators
brighter.
3. Do
not
use excessive
inward
force
on
the
alignment
tool, and
do
not
use excessive rotational
force.
Damage
may
result.
22
24-62·92
-
