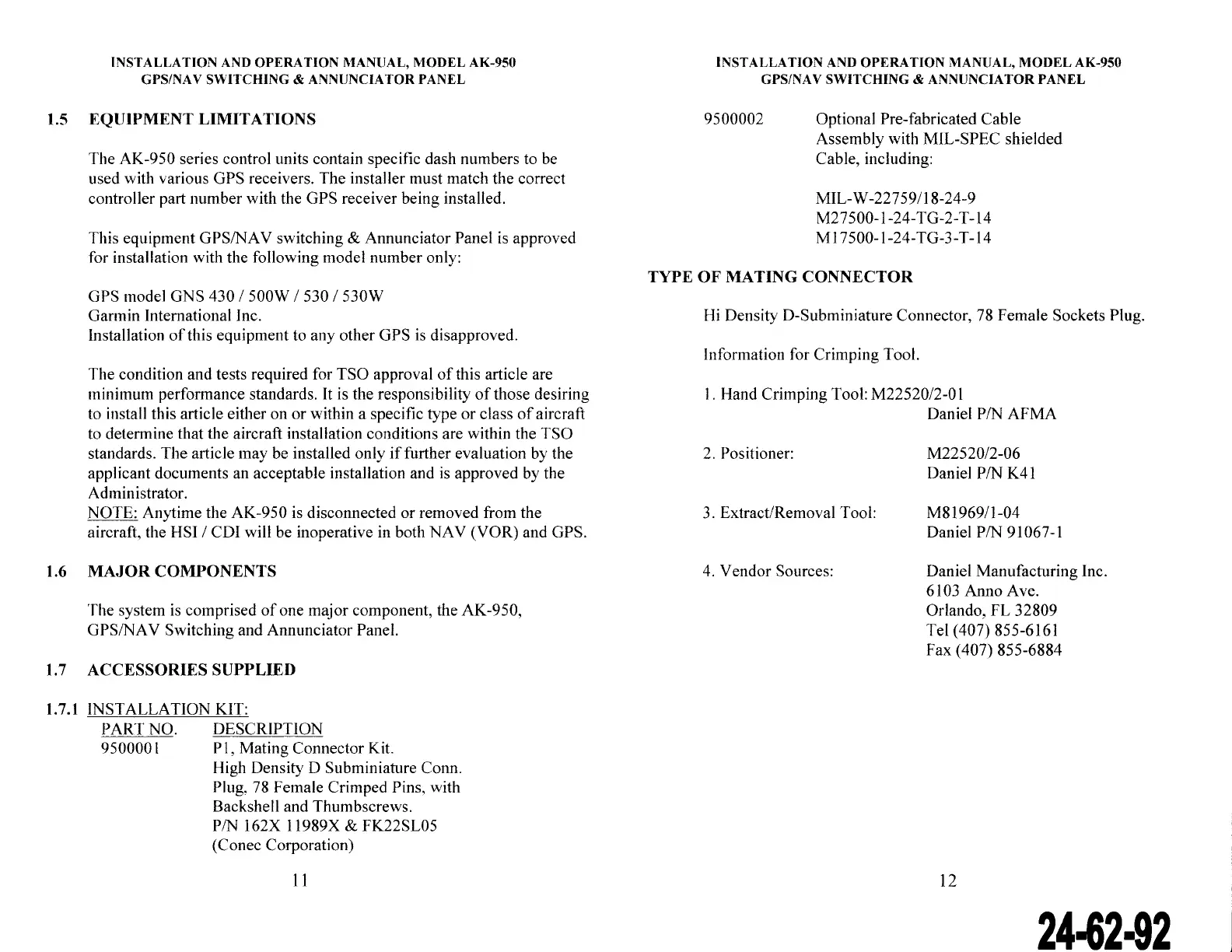

INSTALLATION AND OPERATION MANUAL, MODEL AK-950
GPS/NA V SWITCHING
& ANNUNCIA
TOR
PANEL
1.5
EQUIPMENT
LIMITATIONS
The
AK-950 series control units contain specifie dash numbers to be
used with various GPS receivers.
The
installer must match the correct
controller part number with the GPS receiver being installed.
This equipment GPSINA V switching & Annunciator Panel is approved
for installation with the following mode!
number
only:
GPS madel
GNS
430 1 500W 1 530 1 530W
Garmin International Inc.
Installation
of
this equipment to any other GPS is disapproved.
The condition and tests required for
TSO
approval
of
this article are
minimum performance standards.
It
is the responsibility
ofthose
desiring
to install this article either on
or
within a specifie type
or
class
of
aire raft
to determine that the aircraft installation conditions are within the
TSO
standards.
The
article may be installed only
if
further evaluation by the
applicant documents an acceptable installation and is approved by the
Administrator.
NOTE: Anytime the AK-950 is disconnected
or
removed from the
aircraft, the HSI
1
CDI
will be inoperative in both
NA
V (VOR) and GPS.
1.6
MAJOR
COMPONENTS
The
system is comprised
of
one major component, the AK-950,
GPS/NA V Switching and Annunciator Panel.
1.7
ACCESSORIES SUPPLIED
1.7.1 INSTALLATION KIT:
PART
NO. DESCRIPTION
9500001 P
1,
Mating Connector Kit.
High Density D Subminiature Conn.
Plug, 78 Female Crimped Pins, with
Backshell and Thumbscrews.
PIN 162X 11989X & FK22SL05
(Canee
Corporation)
11
INSTALLA
Tl
ON AND
OPERATION
MANU AL,
MO
DEL AK-950
GPS/NA V SWITCHING
& ANNUNCIATOR PANEL
9500002 Optional Pre-fabricated Cable
Assembly with MIL-SPEC shielded
Cable, including:
MIL-W-22759118-24-9
M27500-1-24-TG-2-T-14
MI
7500-1-24-TG-3-T-14
TYPE
OF
MATING
CONNECTOR
Hi Density D-Subminiature Connector, 78 Female Sockets Plug.
Information for Crimping Tool.
1.
Hand Crimping Tool:
M22520/2-0l
2. Positioner:
3. Extract/Removal Tool:
4.
V endor Sources:
Daniel PIN
AFMA
M22520/2-06
Daniel PIN K41
M81969/1-04
Daniel PIN 91067-1
Daniel Manufacturing Inc.
6103
Anno
Ave.
Orlando,
FL
32809
Tel (407) 855-6161
Fax (407) 855-6884
12
24-62·92
