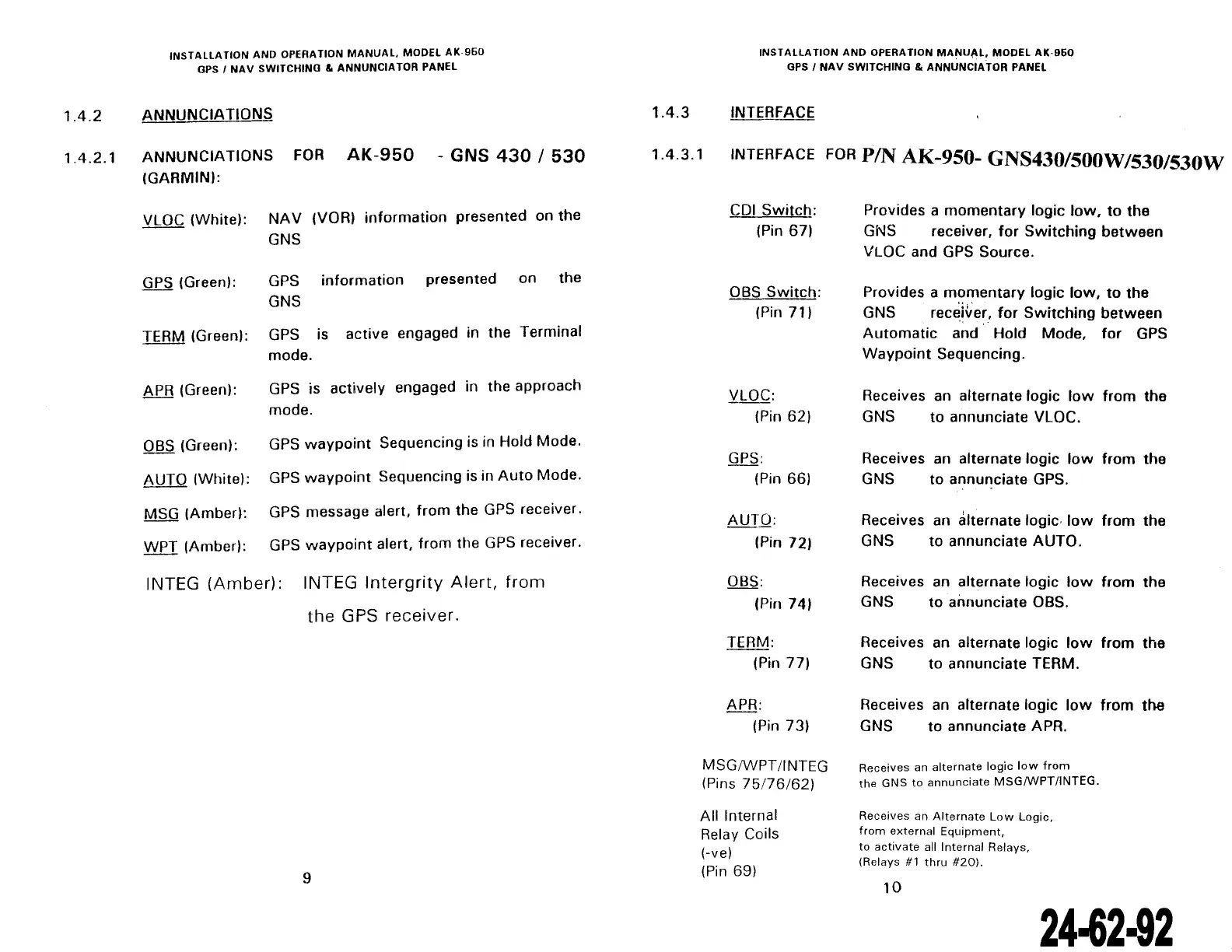

1.4.2
1.4.2.1
INSTALLATION AND OPERATION MANUAL, MODEL AK-960
OPS 1 NAV SWITCHINO & ANNUNCIATOR PANEl
ANNUNCIATIONS
ANNUNCIATIONS FOR AK-950 - GNS 430 / 530
IGARMINI:
VLOC (White): NA V (VORI information presented on the
GNS
GPS (Green): GPS information presented on the
GNS
TERM (Green): GPS is active engaged in the Terminal
mode.
APR (Green):
GPS is actively engaged in the approach
mode.
OBS (Green): GPS
waypoint Sequencing is in Hold Mode.
AUTO (White): GPS waypoint Sequencing is in Auto Mode.
MSG (Amber): GPS message alert,
from the GPS receiver.
WPT (Amber): GPS
waypoint alert, from the GPS receiver.
1 NTEG (Amber): 1 NTEG lntergrity Alert, from
the GPS receiver.
9
1.4.3
INSTAllATION AND OPERATION MANU~H. MODEl AK-960
OPS 1 NAV SWITCHINO & ANNUNCIATOR PANEl
INTERFACE
1.4.3.1
INTERFACE FOR PIN AK-950- GNS430/500W/530/530W
COl Switch:
(Pin 67)
OBS Switch:
(Pin 71)
VLOC:
(Pin 62)
GPS:
(Pin 66)
AUTO:
(Pin
72)
OBS:
(Pin
74)
TERM:
(Pin 77)
APR:
(Pin
73)
MSG/WPT/INTEG
{Pins 75/76/62)
Ali Internai
Relay Coils
{-ve)
(Pin 69)
Provides a momentary logic law, ta the
GNS receiver,
for Switching between
VLOC and GPS Source.
Provides a
momentary logic law, ta the
GNS
recèi~er, for Switching between
. . ' .
Automatic and Hold Mode, for GPS
Waypoint Sequencing.
Receives an alternate
logic law from the
GNS
ta annunciata VLOC.
Receives an alternate
logic law from the
GNS
ta annunciata GPS.
Receives an alternate logic-
law from the
GNS
ta annunciata AUTO.
Receives an alternate logic law from the
GNS
ta armunciate OBS.
Receives an alternate logic
law from the
GNS
ta annunciata TERM.
Receives
an alternate logic law from the
GNS ta annunciata APR.
Receives an alternate logic low from
the GNS to annunciate MSG/WPTIINTEG.
Receives an Alternate Low Logic,
from external Equipment,
to activate ali Internai Relays,
(Relays #1 thru #20).
10
