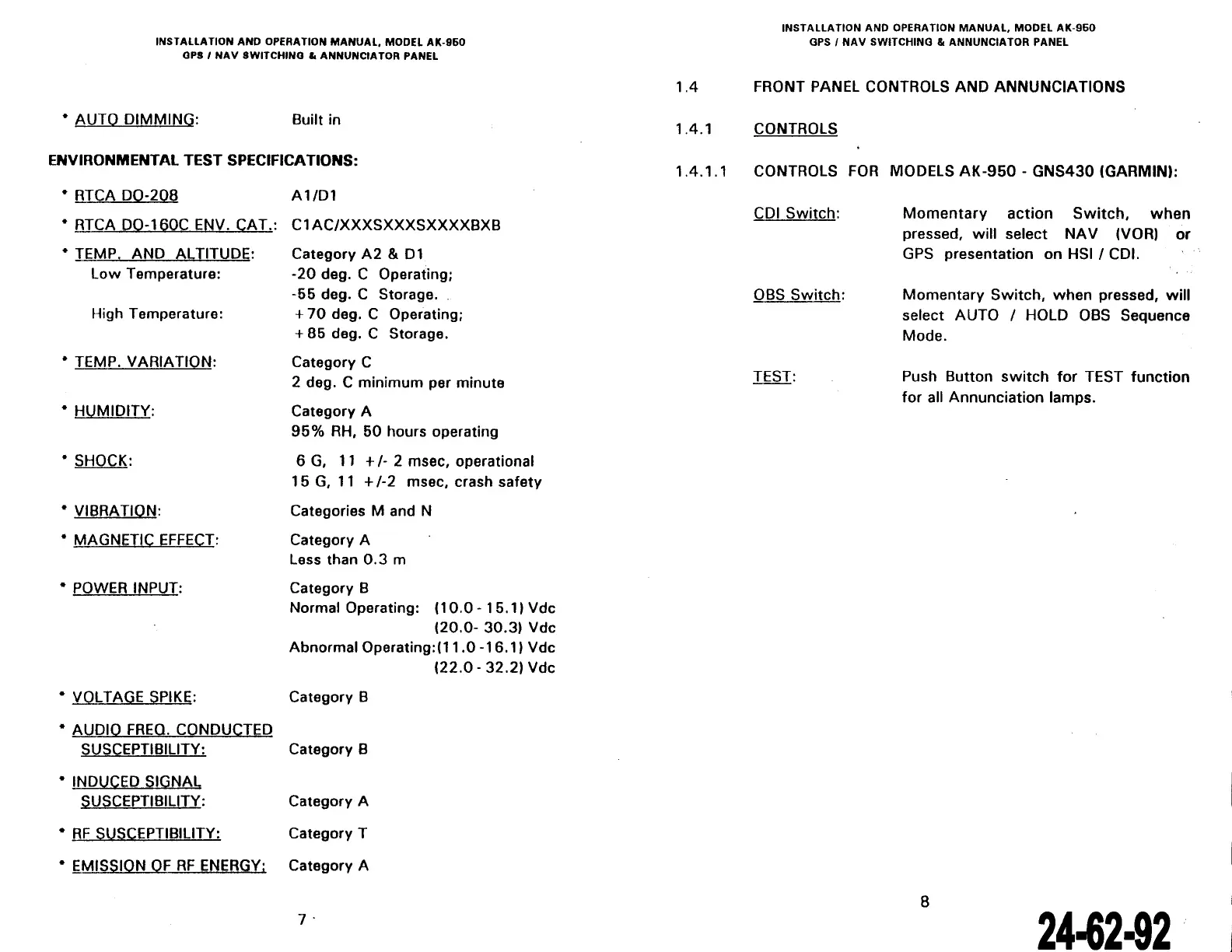

INSTALLATION AND OPERATION MANUAL, MODEL AK-960
OPS
1 NAV SWITCHINO lo ANNUNCIATOR PANEL
* AUTO DIMMING: Built in
ENVIRONMENTAL TEST SPECIFICATIONS:
* RTCA 00-208 A1/D1
* RTCA
D0-160C ENV. CAT.: C1AC/XXXSXXXSXXXXBXB
• TEMP. AND ALTITUDE:
Low Temperature:
High Temperature:
* TEMP. VARIATION:
* HUMIDITY:
* SHOCK:
* VIBRATION:
* MAGNETIC
EFFECT:
* POWER INPUT:
Category
A2 & 01
-20 deg. C Operating;
-55 deg. C Storage.
+ 70 deg. C Operating;
+ 85 deg. C Storage.
Category C
2 deg. C minimum per minute
Category A
95% RH, 50 hours operating
6
G, 11 + 1- 2 msec, operational
1 5
G, 11 + 1-2 rn sec, crash safety
Categories M and N
Category A
Less than
0.3 rn
Category B
Normal Operating:
(10.0- 15.11 Vdc
(20.0- 30.31 Vdc
Abnormal Operating:(11.0 -16.11 Vdc
(22.0- 32.21 Vdc
*VOLTAGE SPIKE: Category B
* AUDIO
FREO. CONDUCTED
SUSCEPTIBILITY: Category B
* INDUCED SIGNAL
SUSCEPTIBILITY: Category A
•
RF SUSCEPTIBILITY: Category T
• EMISSION
OF RF ENERGY; Category A
1.4
1.4.1
1.4. 1. 1
INSTALLATION AND OPERATION MANUAL, MODEL AK-960
GPS
1 NAV SWITCHING & ANNUNCIATOR PANEL
FRONT PANEL CONTROLS AND ANNUNCIATIONS
CONTROLS
CONTROLS
FOR MODELS AK-950 - GNS430 (GARMIN):
CDI Switch:
OBS Switch:
TEST:
Momentary action Switch, when
pressed, will select NA V (VOR) or
GPS presentation on HSI 1 COl.
Momentary Switch, when pressed, will
select AUTO
1 HOLD OBS Sequence
Mode.
Push Butten
switch for TEST function
for ali Annunciation lamps.
8
24-62·92
