IHITALLATION AND Ol"fRATION MAHUAL, MOOEL AK-160
01'8
1 NAV SWITCHIHO. AHNUNCIATOR PANEL
5
INSTALLATION ANO OPERATION MANUAL, MODEL AK-960
OPS
1 NAV 8WITCHINO .. ANNUNCIATOR PANEL

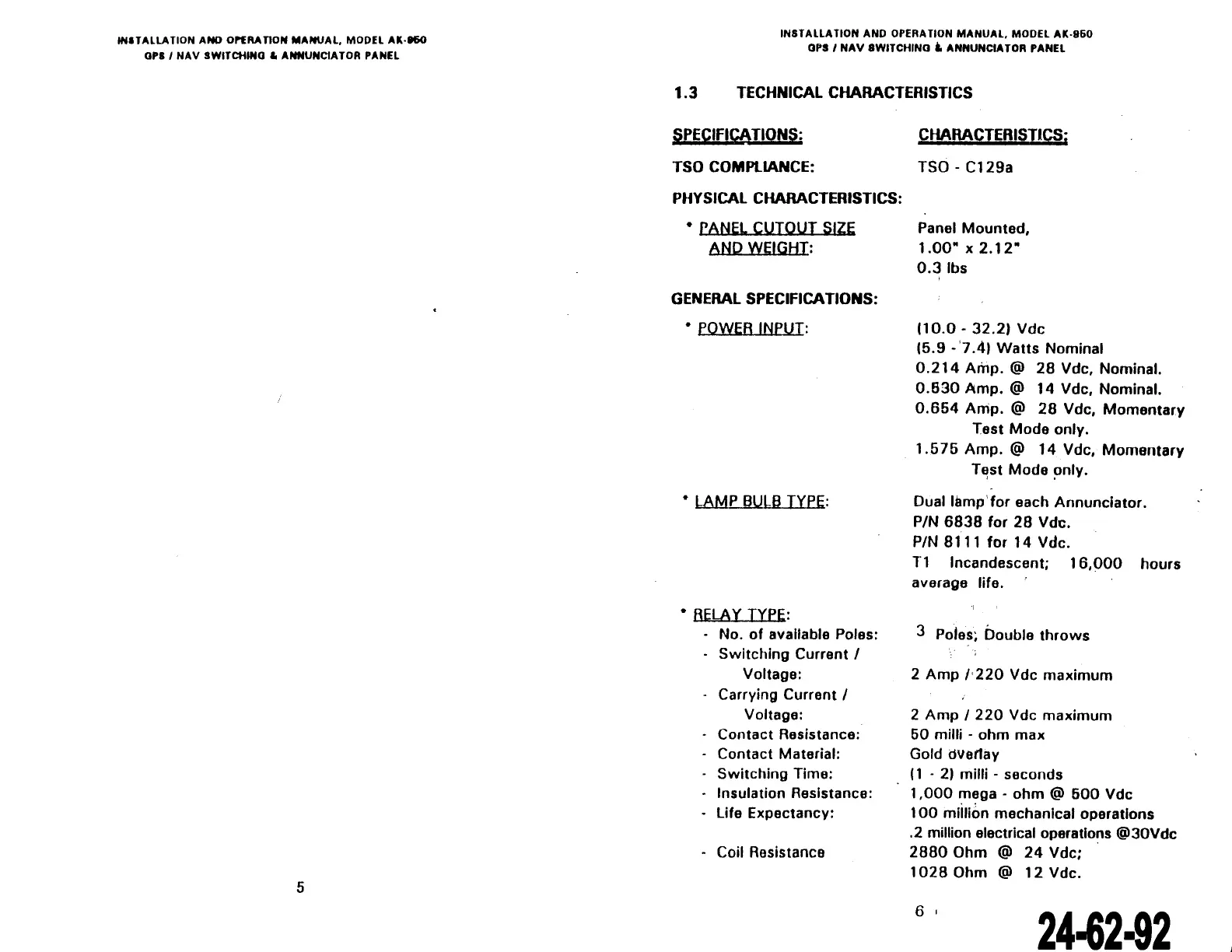

1.3
lECHNICAL CHARAClERISliCS
SPECIFIÇA
liONS:
lSO COMPLIANCE:
PHYSICAL CHARAClERISliCS:
• PANEL CUIOUT SIZE
AND WEIGHT:
GENERAL SPECIFICA liONS:
• POWER INPUT:
• LAMP
BULB TYPE:
• RELAY TYPE:
- No.
of avallable Peles:
-
Swltchlng Current 1
Voltage:
- Carrying Current
1
Voltage:
- Contact Resistance:
Contact Matorial:
-
Switching Timo:
- lnsulation Resistance:
- Life Expectancy:
- Coil Resistance
CHARAClERISliCS;
ISO- C129a
Panel Mounted,
1.00" x 2.12"
0.31bs
(10.0- 32.2) Vdc
(5.9 - '7 .4) Watts Nominal
0.214 Amp.@ 28 Vdc, Nominal.
0.630 Amp.@ 14 Vdc, Nominal.
0.654 Arrip. @ 28 Vdc, Momentary
Test Mode only.
1.575 Amp. @ 14 Vdc, Momentary
T~st Mode !Jnly.
Dual lamp'
for each Annunciator.
PIN 6838 for 28 Vdc.
PIN 8111 for 14 Vdc.
Tl Incandescent; 16,000 hours
average life.
3 Pales;
bouble throws
2 Amp /·220 Vdc maximum
2 Amp 1 220 Vdc maximum
60 milli - ohm max
Gold dVertay
( 1 - 2) milli - seconds
1,000 mega- ohm@ 600 Vdc
1 00 million mechanical operations
.2 million electrical operations @30Vdc
2880 Ohm @ 24 Vdc;
1028 Ohm @ 12 Vdc.
6 1
24-62·92
