Spiral Mixer Operating Manual
4

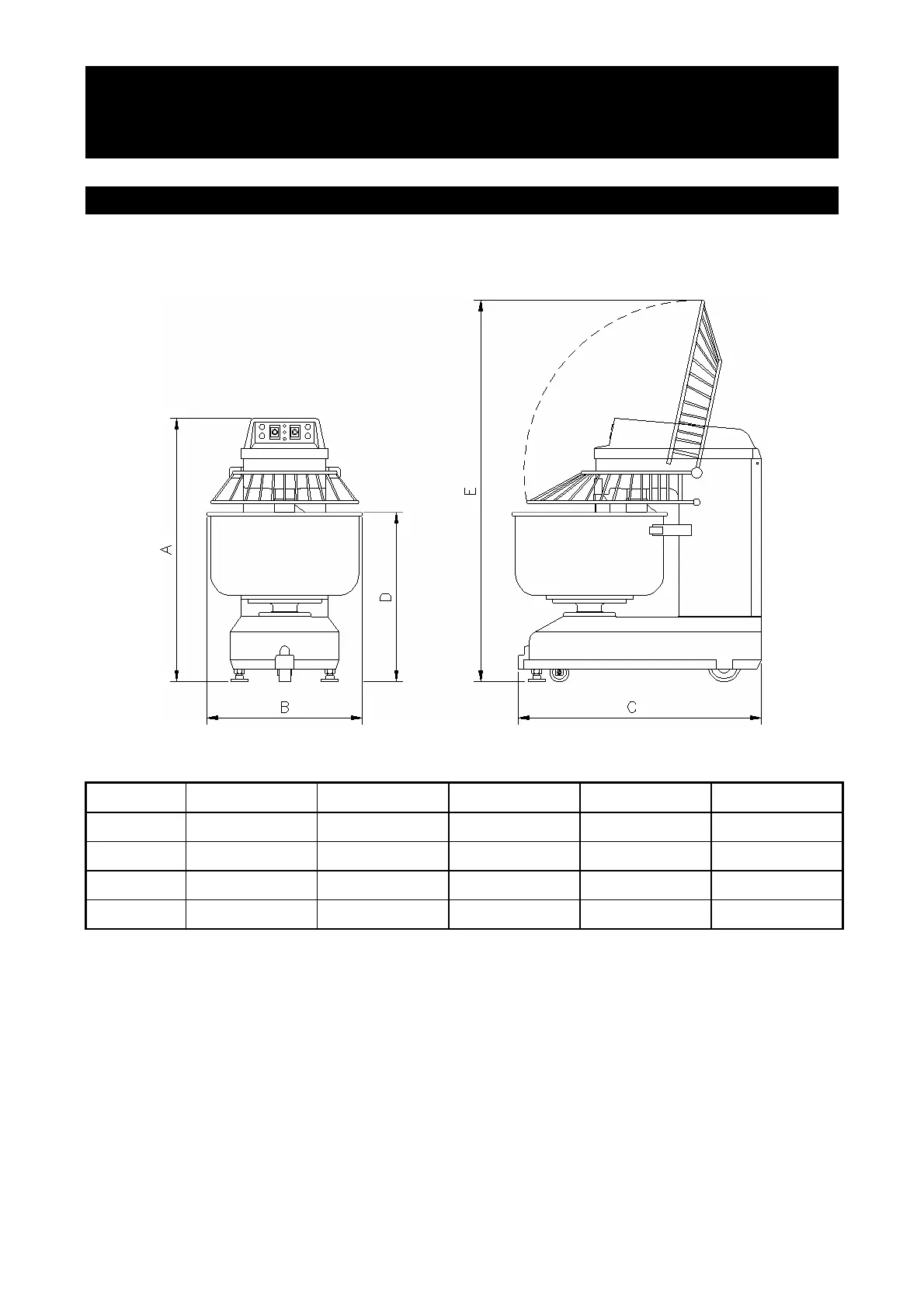

4. INSTALLATION DIAGRAM
A (in.) B (in.) C (in.) D (in.) E (in.)
AE-3050
45 22 41 31 58
AE-4065
45 26 41 32 60
AE-5080
47 28 45 32 67
AE-75K
51 32 48 34 71
5. INSTALLATION
Your American Eagle® SPIRAL MIXER is shipped fully assembled, and ready for installation.
The machine must be installed on a horizontally level floor. It should be placed in a location that is
convenient for both operation and maintenance. The machine’s safety features make it possible to
stand close to the machine during operation.
