10. TECHNICAL NOTES
DRIVEN BELT
z
The drive belt should be installed
with sufficient tension to avoid
excessive slack.
z
Agitator drive belts may be
adjusted by means of a screw.

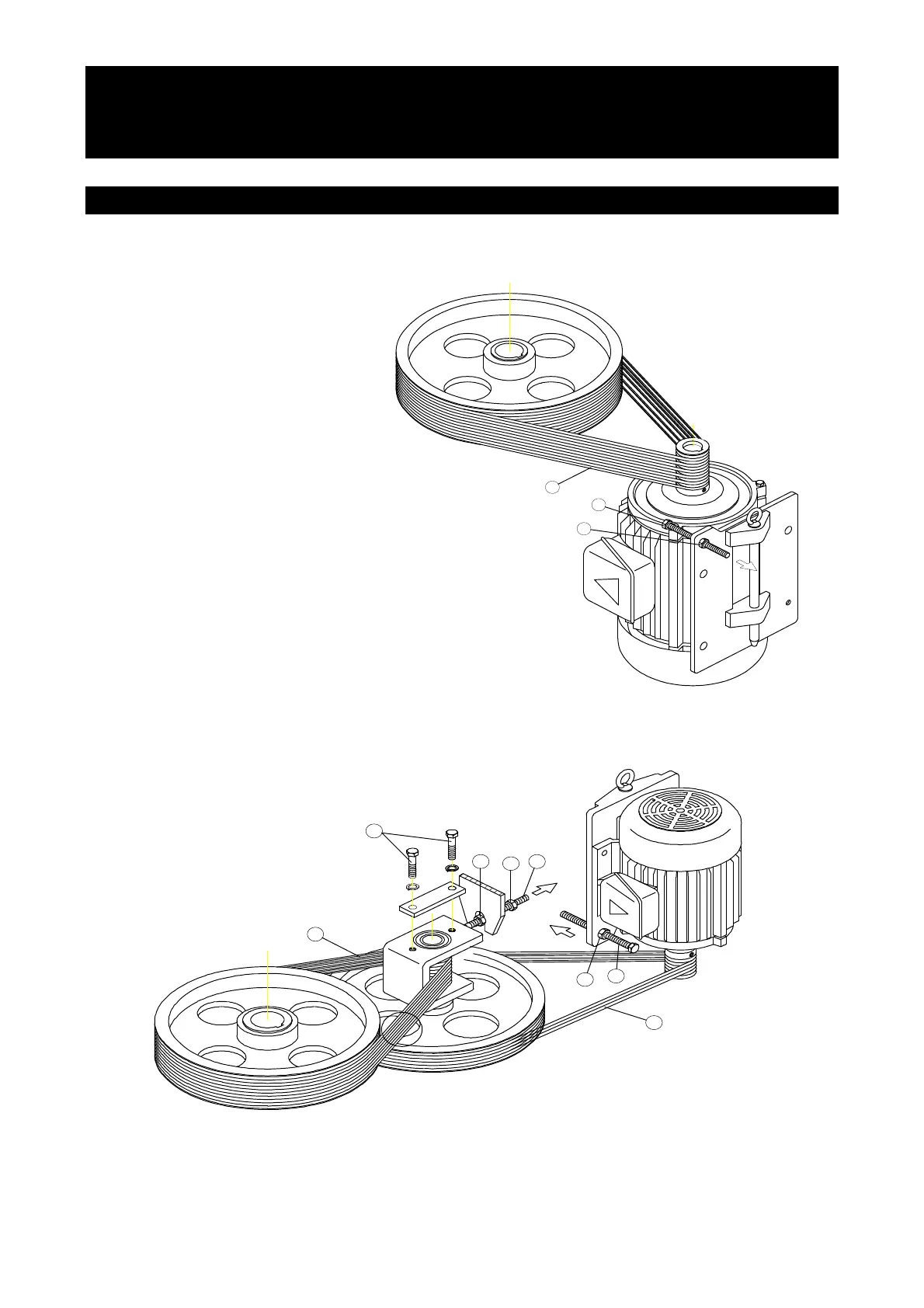

(See diagram, No.1)
2
1
3
z Bowl drive belts may be adjusted by adjusting the screw nut. (See diagram, No. 7 & 8)
z
Drive belts for the bowl drive motor may be adjusted by means of screw No. 2 on lower motor
support plate.
4
1
2
3
5
6
8
7
