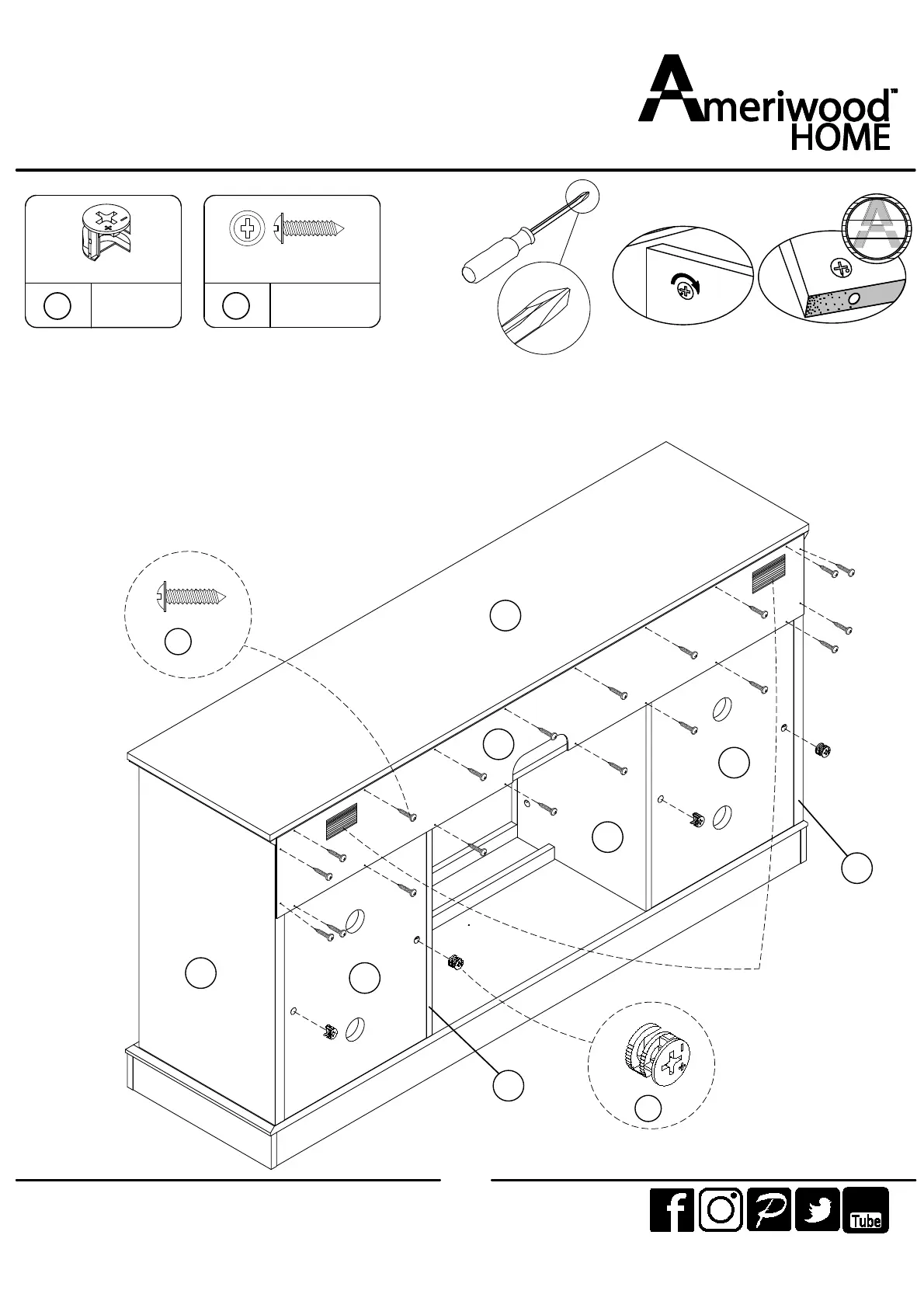

18.1 With 2 person, turn the sample with top panel (A)
facing up.
18.2 Insert and tighten (9) to secure (J) to (D), (E), (F) and
(G) as illustrated.
CAUTION: Before assemble below step, make sure the
sample is square and the warnings on (P) face rearward.
18.3 Install 8 screws (7) at 4 corner of (P) first then apply
for the rest to secure (P) to (A), (C), (D) & (E) as
illustrated.
× 4
9
Ø15 x 12mm
Assembly
UNLOCK
LOCK
Tip
Quick
Proper orientation of CAM LOCK
J
J
E
G
F
D
9
7
A
P
× 20
7
Ø3.5 x 14 mm
