Remote control (1)
L-Bracket (3)
Screw(3)
(included in the
fireplace package)
× 3
Ø4X12 mm

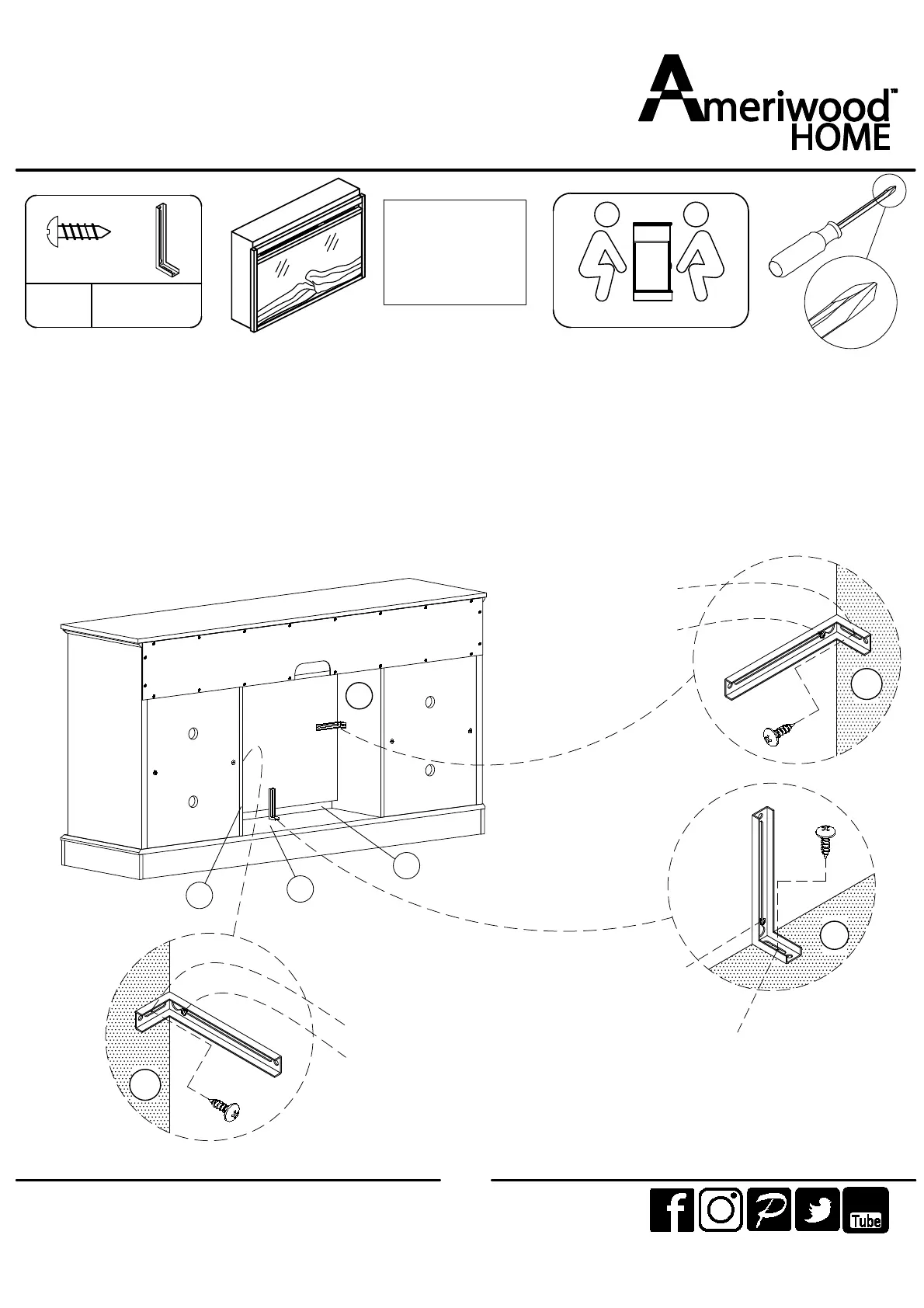

23.1 With 2 person, lift the fireplace, insert carefully into the back of the assembled mantel and center it in
the opening, make sure the fireplace rests on supporting rail (O) & (N) and sits flush with the front side
rails (H).
23.2 Slide the L-Brackets (3pcs) into pre-assembled bolts on rear panel of the fireplace.
23.3 Have one person from the front of the unit to hold the fireplace at the center and flush with the front
side rail (H), the other person can tighten pre-assembled bolts to secure the L-Brackets to mantel panels.
Make sure the bracket align with pre-drilled holes on bottom and 2 side panels as illustrated.
23.4 Fasten provided screws (3pcs) to secure the L-Brackets to bottom and 2 side panels as illustrated.
+
PRE-INSTALLED BOLT
ON FIREPLACE PANEL
Screw
PRE-DRILLED HOLE
B
F
G
PRE-DRILLED HOLE
PRE-INSTALLED BOLT
ON FIREPLACE PANEL
Screw
Screw
G
O
F
B
PRE-DRILLED HOLE
PRE-INSTALLED BOLT
ON FIREPLACE PANEL
Handling with 2 person
