STEP
8
1
Tube
You

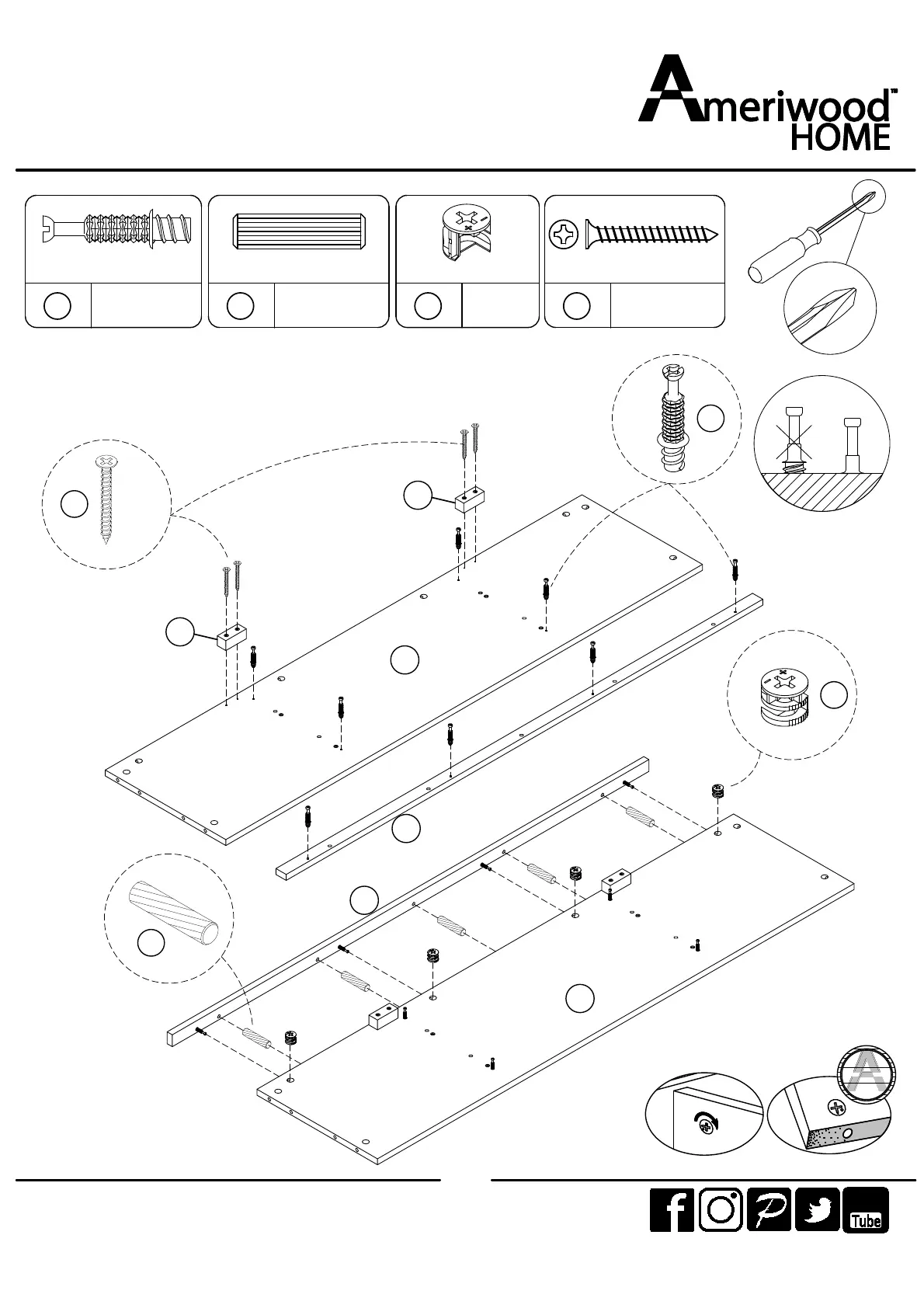

1.1 Attach (1) to (C), (M) as illustrated. Do NOT over tighten.
1.2 Attach (X) to (C) with (3) as illustrated.
1.3 Attach (M) to (C) with (2) & (9) as illustrated.
× 8
1
× 5
2
Ø6 x 25mm
Ø8 x 30 mm
× 4
9
Ø15 x 12mm
Assembly
UNLOCK
LOCK
Tip
Quick
Proper orientation of CAM LOCK
M
M
C
C
1
9
2
X
X
3
× 4
Ø4 x 30 mm
3
