113050-OLV Division 2 Sample System
Dryer
Contaminant Trap
(Optional)
Dryer Valve
Terminal Block
(Incoming power)
Back Pressure Regulator
(Optional)
7 Micron Filter
Sample Inlet
1/8” Tube
Liquid Separator
(Optional)
Bypass Outlet
1/4”Tube
Sample Outlet
1/8” Tube
Power, 1/2” Gland
Signal, 1/2” Gland
Communications,
1/2” Gland
3050-OLV Analyzer
Analyzer Power &
Signal Connections
Power Supply
Vortex Cooling
(Optional)

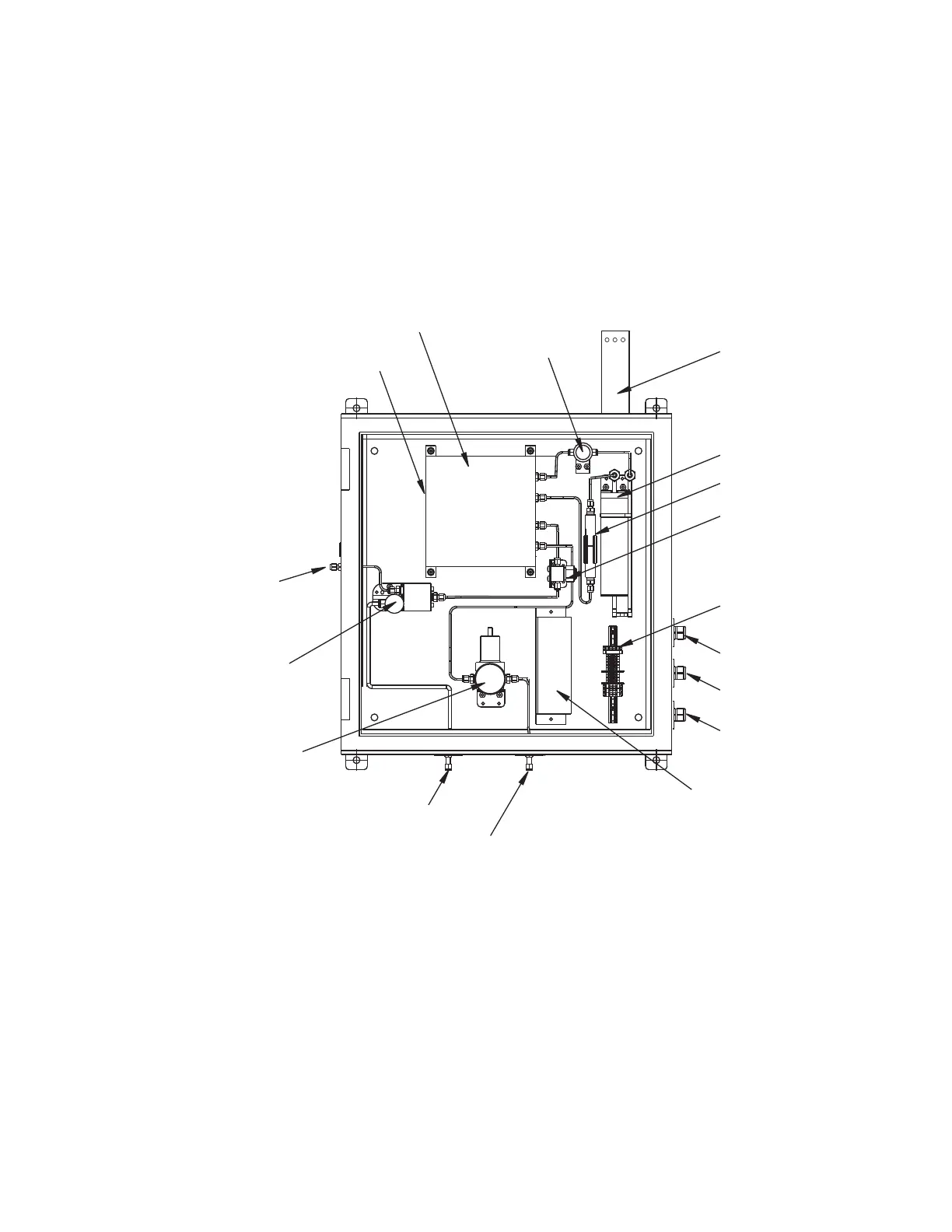

Figure 4: Sample system components and options
