T-900 Series Pump Operation Manual

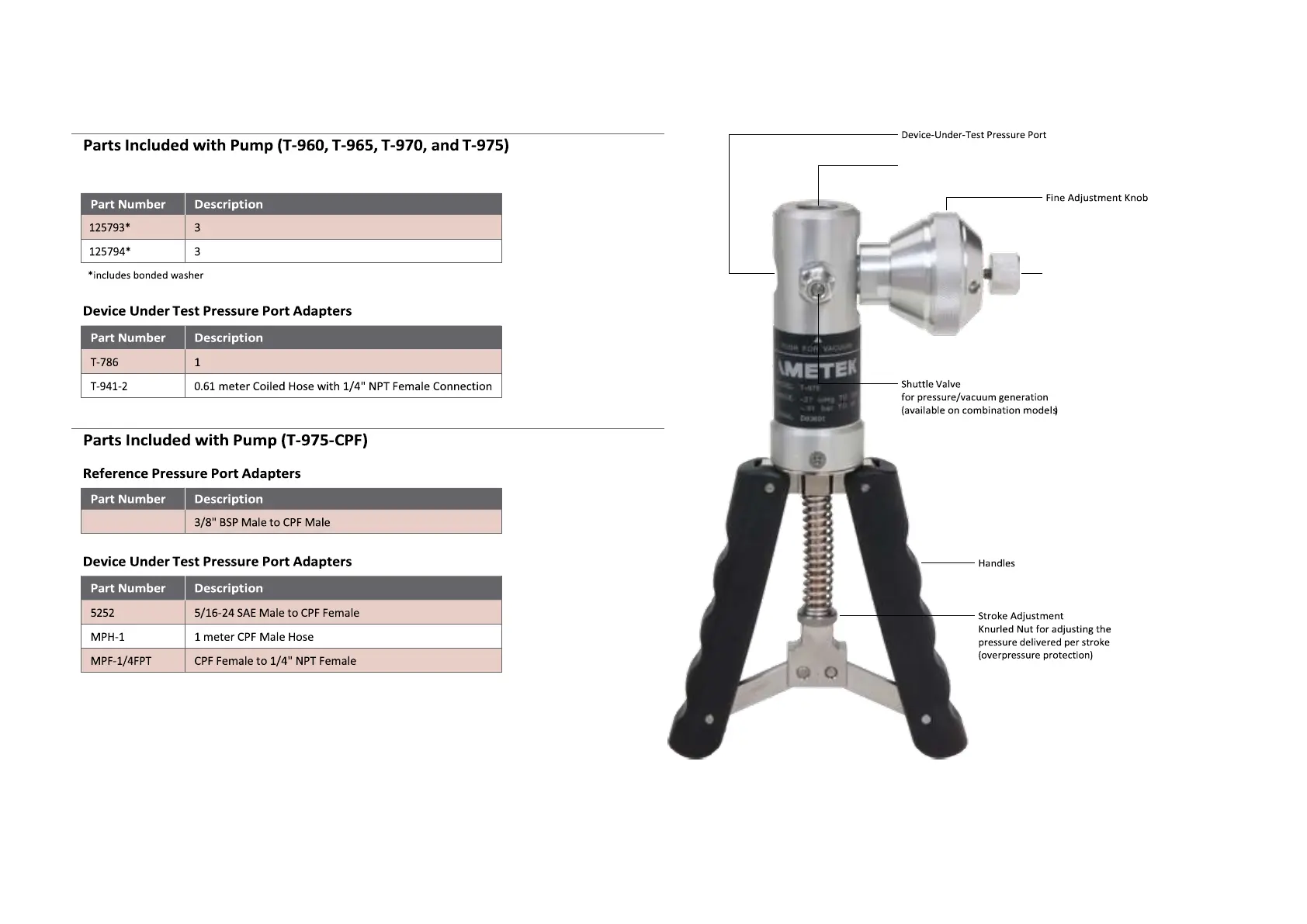

Each hand pump includes a fine adjustment knob for precise pressure adjustments. The reference instrument threads directly to the top of the pump (if using
a supplied quick connector). The device-under-test connects to the pressure hose via the supplied adapters.
Reference Pressure Port
 Reference Pressure Port Adapters
/8" BSP Male to 1/4" BSP Female
/8" BSP Male to 1/4" NPT Female

/4" NPT Male to 1/4" BSP Female

5238

Pressure Vent Valve
