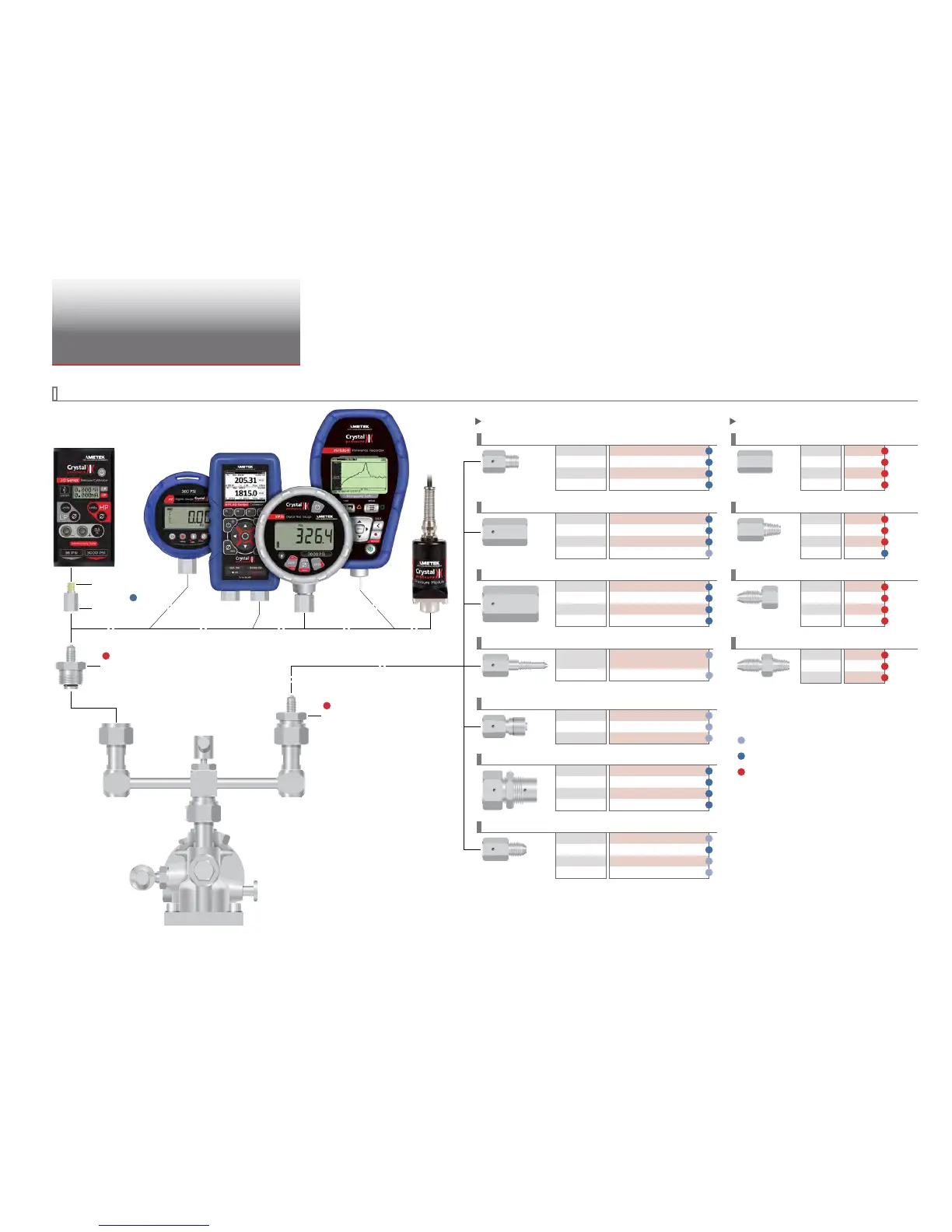

Connection Diagram
CRYSTAL REFERENCE INDICATORS
* These parts are included with the T-1-CPF pump.
Additional parts are supplied as part of a pump system, or may be ordered separately.
All BSP connections require bonded seals.
5255 *
5255 *
MPF-1/8QTM 1/8" Quick Test NPT Male
MPF-1/8MPT 1/8" NPT Male
MPF-1/4QTM 1/4" Quick Test NPT Male
MPF-1/4MPT
1/4" NPT Male
4501 1/8 NPT
4715
*
1/4 NPT
4502 3/8 NPT
4503
1/2 NPT
MPF-1/8QTF 1/8" Quick Test NPT Female
MPF-1/4QTF 1/4" Quick Test NPT Female
MPF-1/4FPT 1/4" NPT Female
MPF-1/2QTF 1/2" Quick Test NPT Female
MPF-1/8BSPF G 1/8" Female
MPF-1/4BSPF G 1/4" Female
MPF-3/8BSPF G 3/8" Female
MPF-1/2BSPF G 1/2" Female
MPF-MPF Female to Female
MPF-MPFTU T-Union (Female)
MPF-MPFBULK Bulkhead (Female to Female)
MPF-CAP Cap
MPF-M20QTF M20 x 1.5 Quick Test Female
MPF-M20X1.5F M20 x 1.5 Female
MPF-QCN Quick-Connect Nut
MPF-AN4M AN4 Male
MPF-1/4TBM 1/4" Tube Male
MPF-3/8TBM 3/8" Tube Male
MPF-1/2TBM 1/2" Tube Male
MPF-5/16TRM
for Foxboro, Rosemount,
and Yokogawa
MPF-1/4TRM for Honeywell
NPT MALE
NPT FEMALE
BSP
CPF
ADDITIONAL
TUBE
TRANSMITTER
Additional NPT sizes available in non-CPF MP adapters
Additional NPT sizes available in non-CPF MP adapters
4714 1/4 NPT
4494 3/8 NPT
4495 1/2 NPT
4496 3/4 NPT
4497 1/8 NPT
4498 1/4 NPT
4499 3/8 NPT
4500 1/2 NPT
4698 1/4 NPT
4492 3/8 NPT
4493 1/2 NPT
Medium Pressure MALE to NPT MALE
CPF Fittings Non-CPF MP Fittings
Medium Pressure FEMALE to NPT FEMALE
Medium Pressure FEMALE to NPT MALE
Medium Pressure MALE to NPT FEMALE
300 bar/5000 psi
5
700 bar/10000 psi
10
10
1000 bar/15000 psi
(Non-CPF MP adapters require wrench tightening.)
15
15
15
10
10
10
10
15
15
15
15
10
10
10
5
15
15
15
10
10
10
10
10
15
15
15
15
5
5
15
15
15
5
5
5
10
10
10
10
5
10
5
5
MPF-1/8MPT
Thread tape
required.
