Type T Pump Operation Manual
X

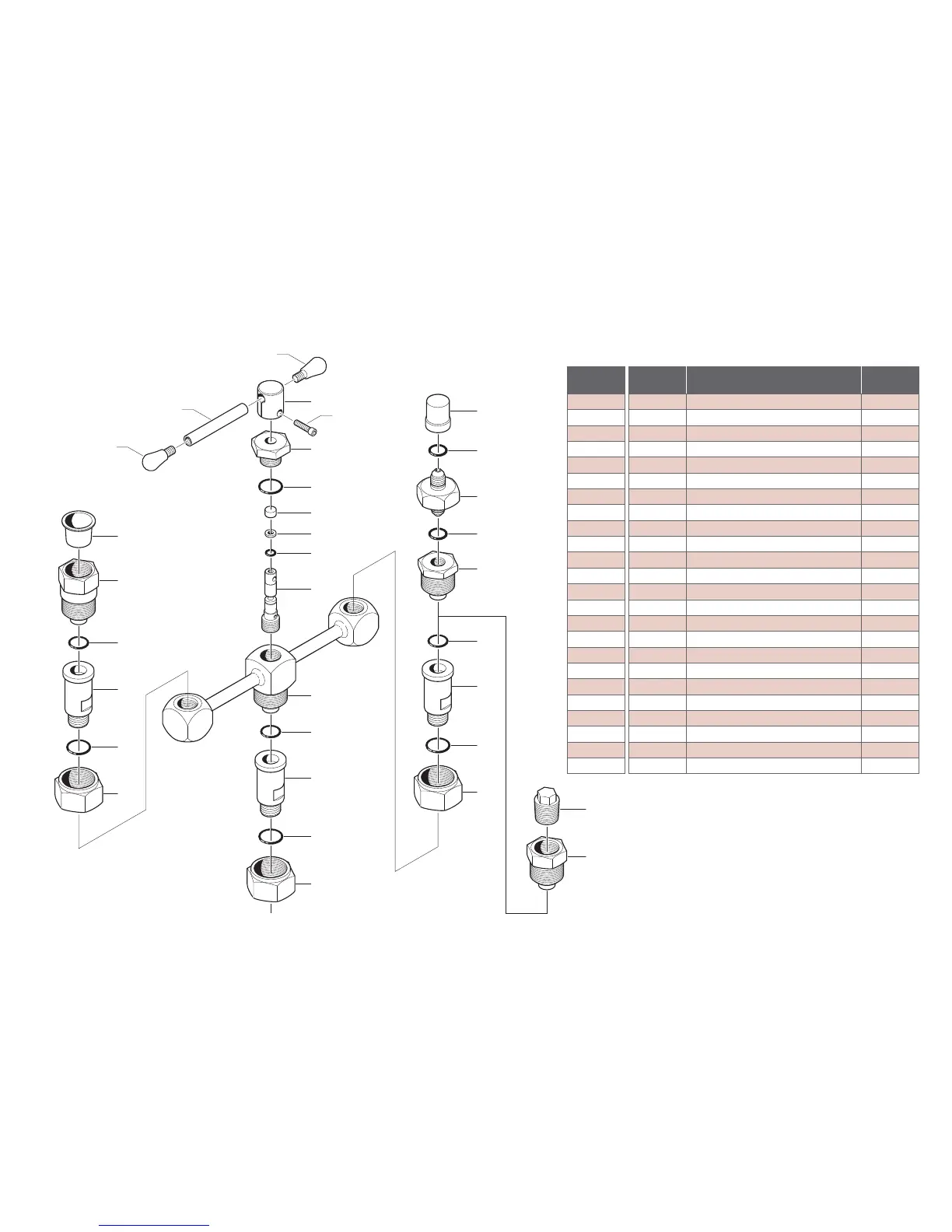

Figure 2 • Manifold Assembly and Parts List
4
1
2
9
11
12
13
14
15
16
17
3
4
5
6
3
5
6
6
18
20
21
23
22
19
19
3
4
5
8
7
7
10
Item
Number
Part
Number
Description
Units Per
Assembly
— T-149 Type T Manifold Assembly —
1 — Thread Protector, ½ NPT 1
2 T-135 Body, Union — ½ NPT 1
3 10-90027 O-ring (T-154) 3
4 T-126 Nipple, Union 3
5 10-90009 O-ring, Union Nipple (T-136) 3
6 T-146 Nut, Union 3
7 T-102 Knob, Handle 2
8 T-119 Handle, Fine Adjust 1
9 T-132 Handle Hub, Fine Adjust 1
10 T-174 Screw, Hub 1
11 T-113 Bushing, Fine Adjust Piston 1
12 10 - 90 011 O-ring, Fine Adjust (T-157) 1
13 T-190 Plug, Friction 1
14 10-90 017 Back-up Ring, Fine Adjust (T-179) 1
15 10-90001 O-ring, Fine Adjust (T-152) 1
16 T-114 Piston, Fine Adjust 1
17 T-125 Manifold, Oset Pipe 1
18 99-90001 Cap 1
19 10-90005 O-ring, Nipple (T-151) 2
20 T-185 Nipple,
7
/16 –20 UNF 1
21 T-186 Body, Union —
7
/16 –20 UNF 1
22 T-162 Plug, Pipe 1
23 T-134 Body, Union — ¼ NPT 1
