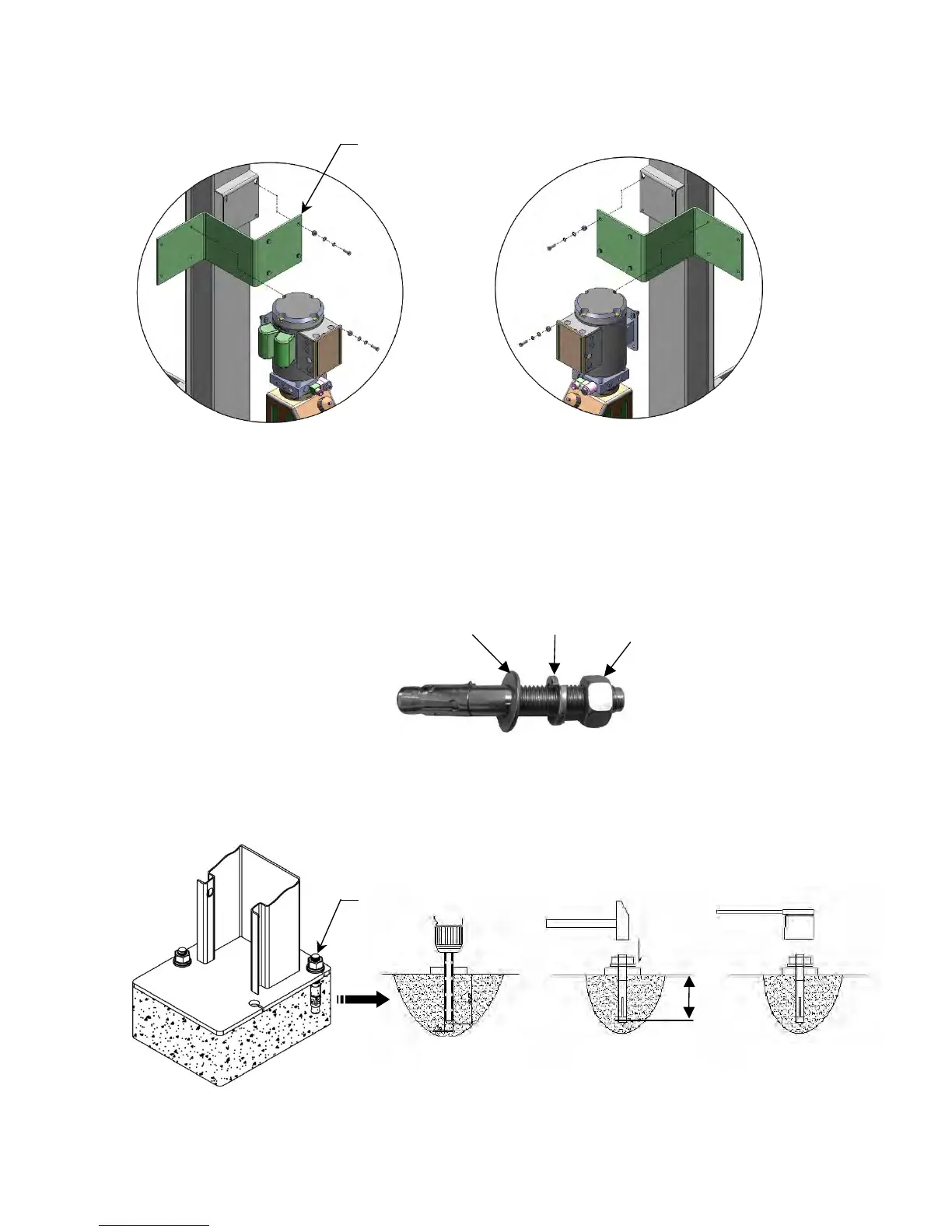

2. Install optional motor fixing bracket (See Fig. 40, Fig 41)
R. Fix the anchor bolts
1. 1. Prepare the anchor bolts (See Fig. 42)
1.2 Adjust the column with the leveling bar and leveling pad , drill the anchor hole and install
the anchor bolts. Tap the anchor bolts into the anchor hole with a hammer and tighten the
bolts.( See Fig.43)
78
Motor fixing bracket on the
side of cross beam A
Fig.40
Motor fixing bracket on the side
of cross beam B
Fig.41
Fig.42
Fig.43
Spring
washe
r
Washer
Nut
61
90mm
Note: The tightening torque for the anchor bolt is 150N.m.
Tap anchor bolts into the anchor hole at least 90mm deep.
Drilling
Bolting
Tighten
