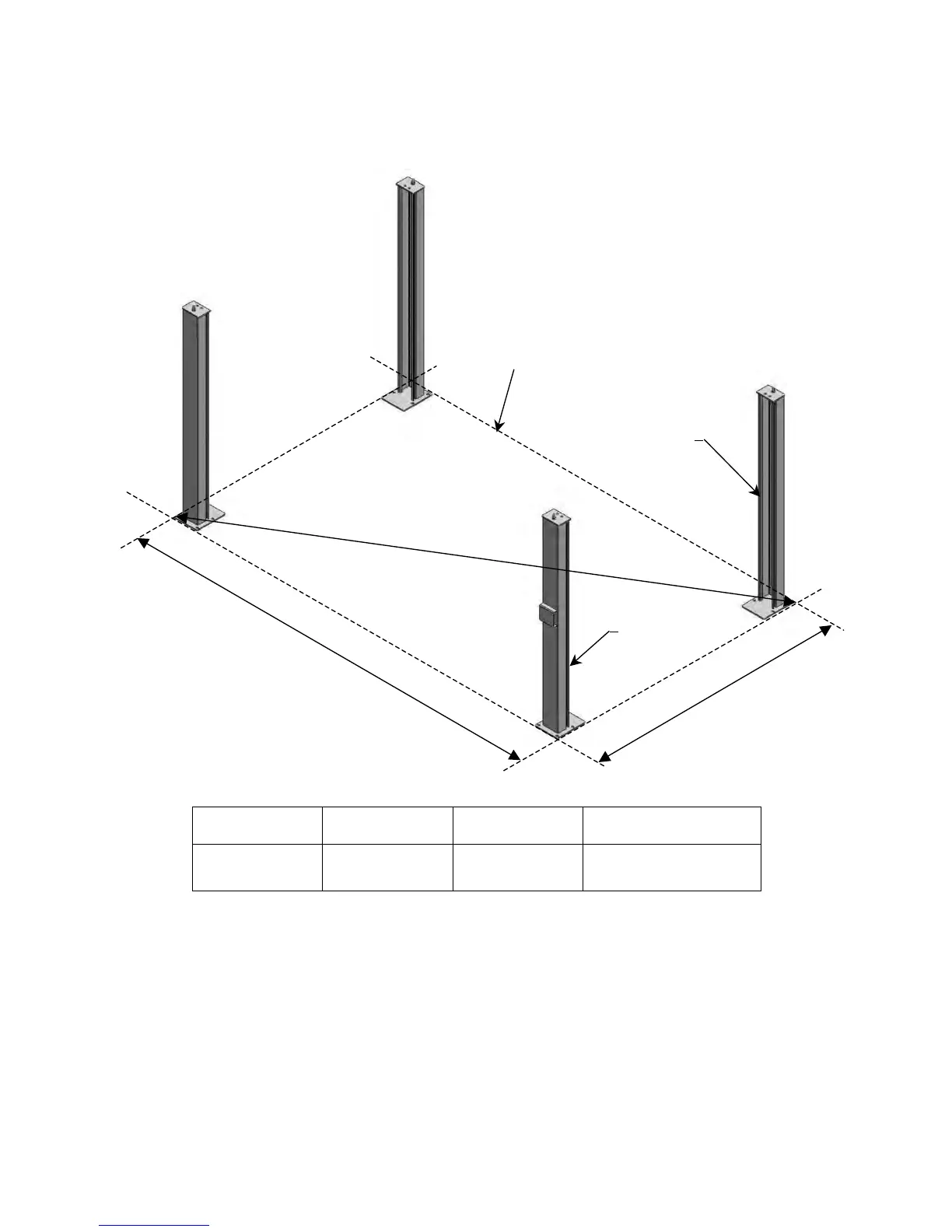

B. Use a carpenter’s chalk line to establish installation layout as per Table 1
Make sure the size is right and base is flat
(see Fig. 10).
Note: Reserve appropriate space in front and behind the installation site.
MODEL
A
B
C
A435-P
4400mm
173 1/4”
2784mm
109 5/8”
5207mm
205”
B
A
C
Use a carpenter’s chalk line to establish
installation layout
Fig.10
1
2
