F. Fix anchor bolts

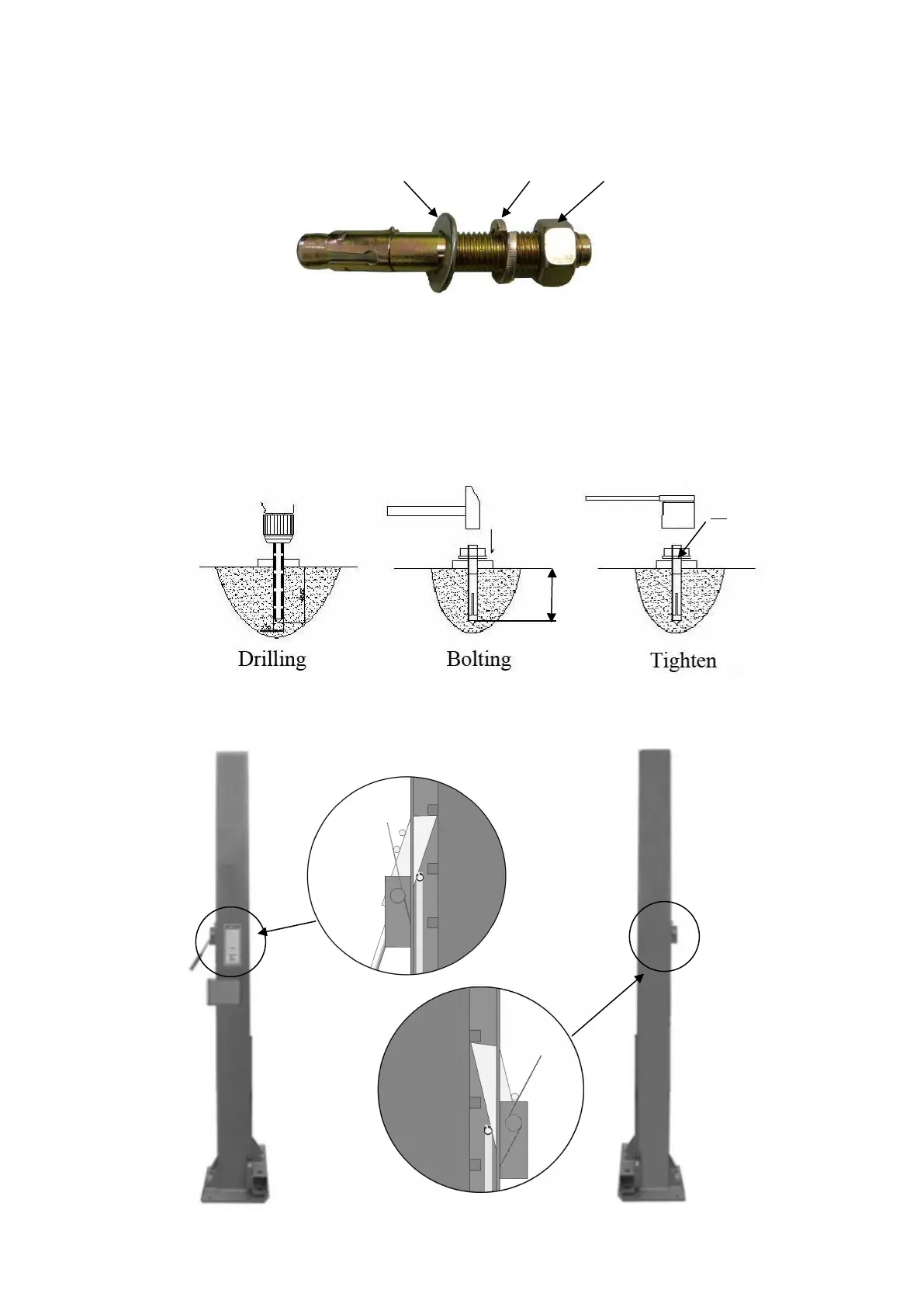

1. Prepare anchor bolts (See Fig. 14).
2. Using the prescribed rotary hammer drill, and drill all the anchor holes and install the
anchor bolts. Then tighten the anchor bolts (See Fig. 15).
Note: Torque of Anchors is 150N.m .Minimum embedment of Anchors is 3-1/2’’.
G. Lift the carriages up by hand and make them be locked at the same level
(See Fig. 16).
