H.Connecting the cables

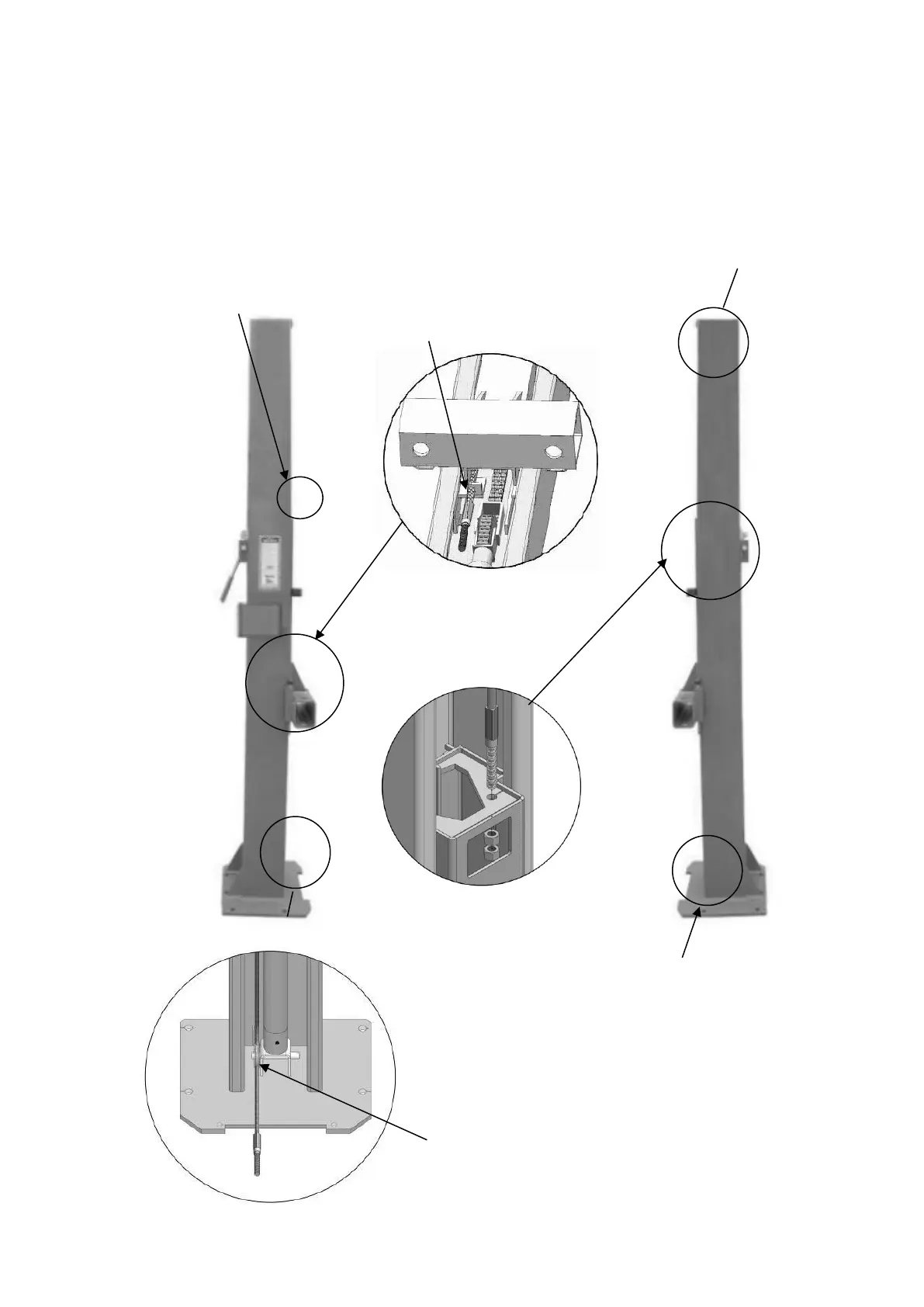

1． Connect the cables follow step a to f. (See Fig. 17).
b. Push the carriages higher
than chain pulley, cable pass
through the top end of the
carriages and pass through
the hole of the bottom steel
plate of the carriages
Fig.17
f. The fitting of cable pass
through the hole of the
bottom steel plate of the
carriages and screw the
nuts.
a. Cable pass through
the carriage
c. hang the cable on
small pulley and then
pull out the cable
d. Cable pass
through the
small pulley in
another
column
e. Pull out the
cable from
bottom to top
and hang the
cable on big
pulley
