AMGO BP-9 - Page 22

20
1
2
3
5
11
9
6
4
7
8
10

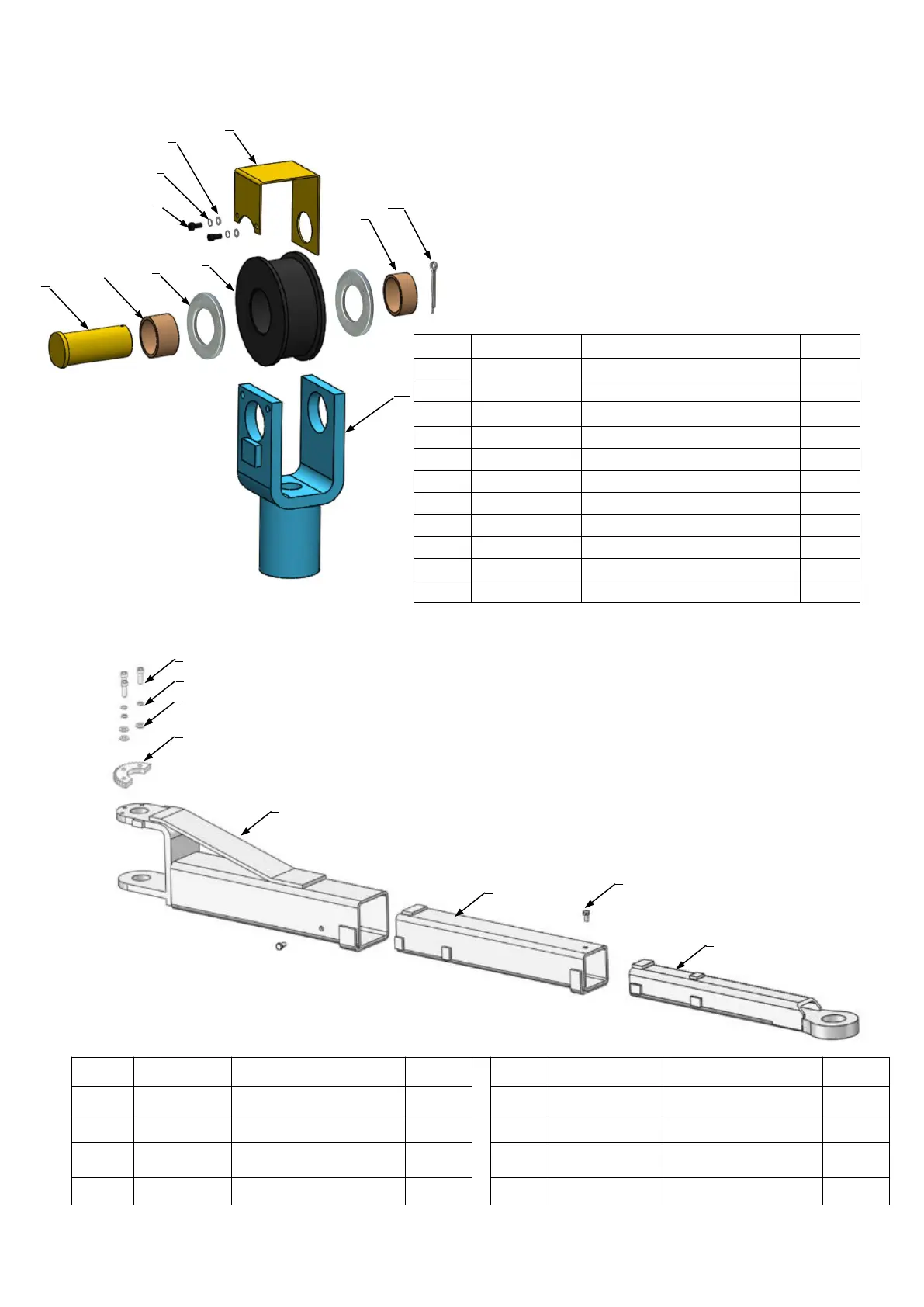

4.1 Chain pulley seat assy. exploded view（11203176）:
4.2.Lifting arm(1020143A) exploded view:
Item
Part#
Description
QTY.
1
11203040
Pin for chain pulley
2
2
10203004A
Bronze bush φ31*φ25.1*21
2
3
10640109
Washer φ44*φ25.2*2
4
4
1102023002
Chain Pulley φ105*41
2
5
81400335
Socket bolt M5*10
4
6
10209143
Spring Washer Φ5
4
7
10420152
Washer Φ5
4
8
11201152
Chain stop plate
2
9
10217020
Bronze bush φ31*φ25.1*16
2
10
10201005
Split pin(φ4*50)
2
11
11201004
Chain pulley seat
2
Item
Part#
Description
QTY.
Item
Part#
Description
QTY.
1
10209032
Socket bolt M8*25
12
5
11201047
Outer arm assy.
4
2
10209034
Lock washer φ8
12
6
11201048
Middle arm assy.
4
3
10209033
Washer φ8
12
7
10201149
Cap Head Bolt
M8*12
8
4
11209035
Moon gear
4
8
11201049A
Inner arm assy.
4
Fig. 30
1
2
3
4
5
6
7
8
Fig. 31
