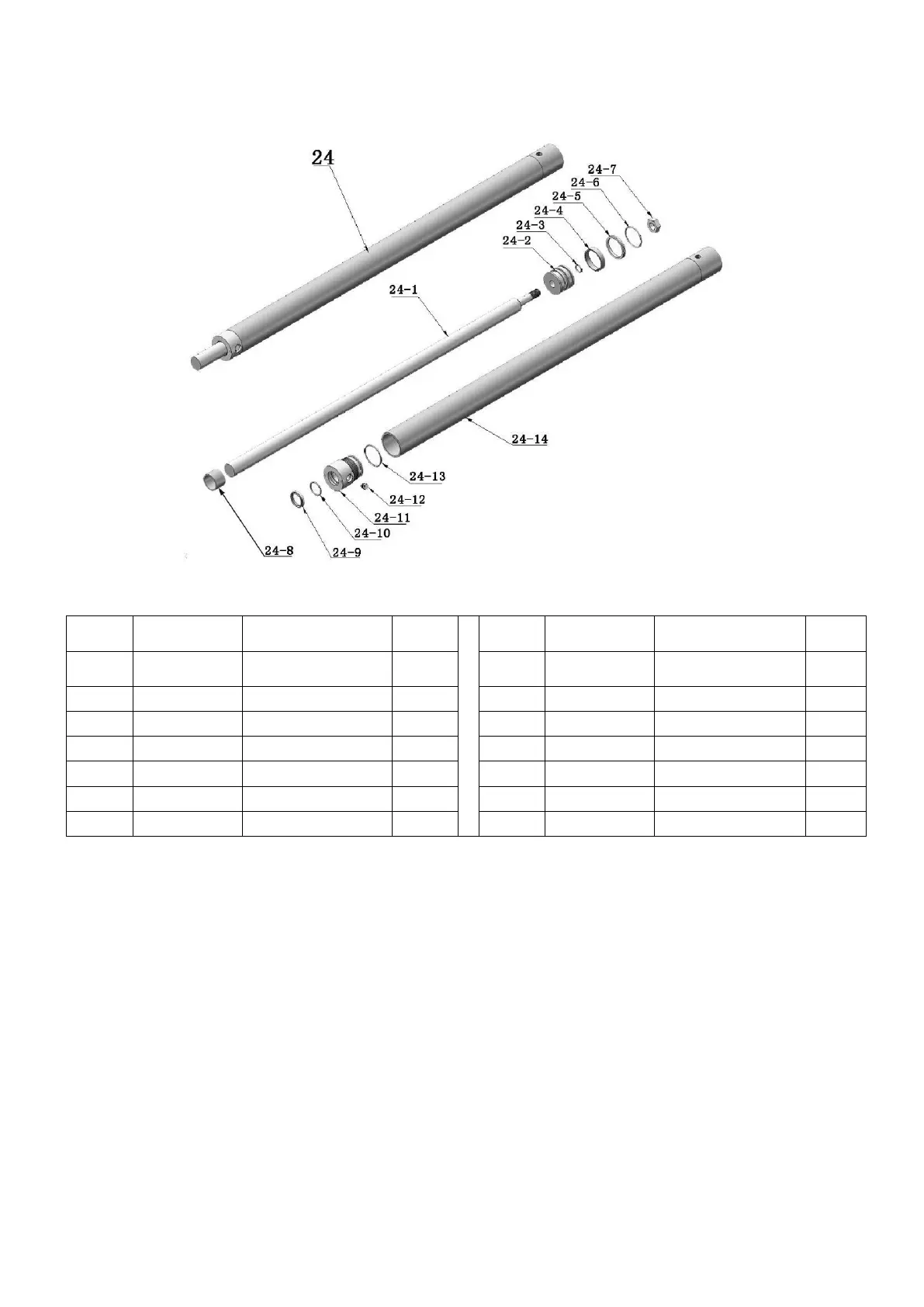

4.3.Cylinders(10201008A) exploded view:
Part list for Cylinder
Item
Part#
Description
QTY.
Item
Part#
Description
QTY.
24-1
11201027A
Piston rod
2
24-8
11201037
Piston rod
adjusting sleeve
2
24-2
11201028
Piston
2
24-9
10209078
Dusty ring
2
24-3
10206069
O ring
2
24-10
10201032
O ring
2
24-4
10201029
Support ring
2
24-11
11201033
End cover
2
24-5
10201030
Y ring OSI
2
24-12
10201034
Bleeding plug
2
24-6
10201031
O ring
2
24-13
10201035
O ring
2
24-7
10206071
Hex Nut
2
24-14
11201036A
Cylinder weldment
2
Fig. 32
