amiad TAF-500 - Parts Schedule & Drawing 2 Taf-500 Filter Section 2

TAF-500 06.2018 / 910101-000115 Page 13 of 16
1 1.1
1.2
1.3
3
2

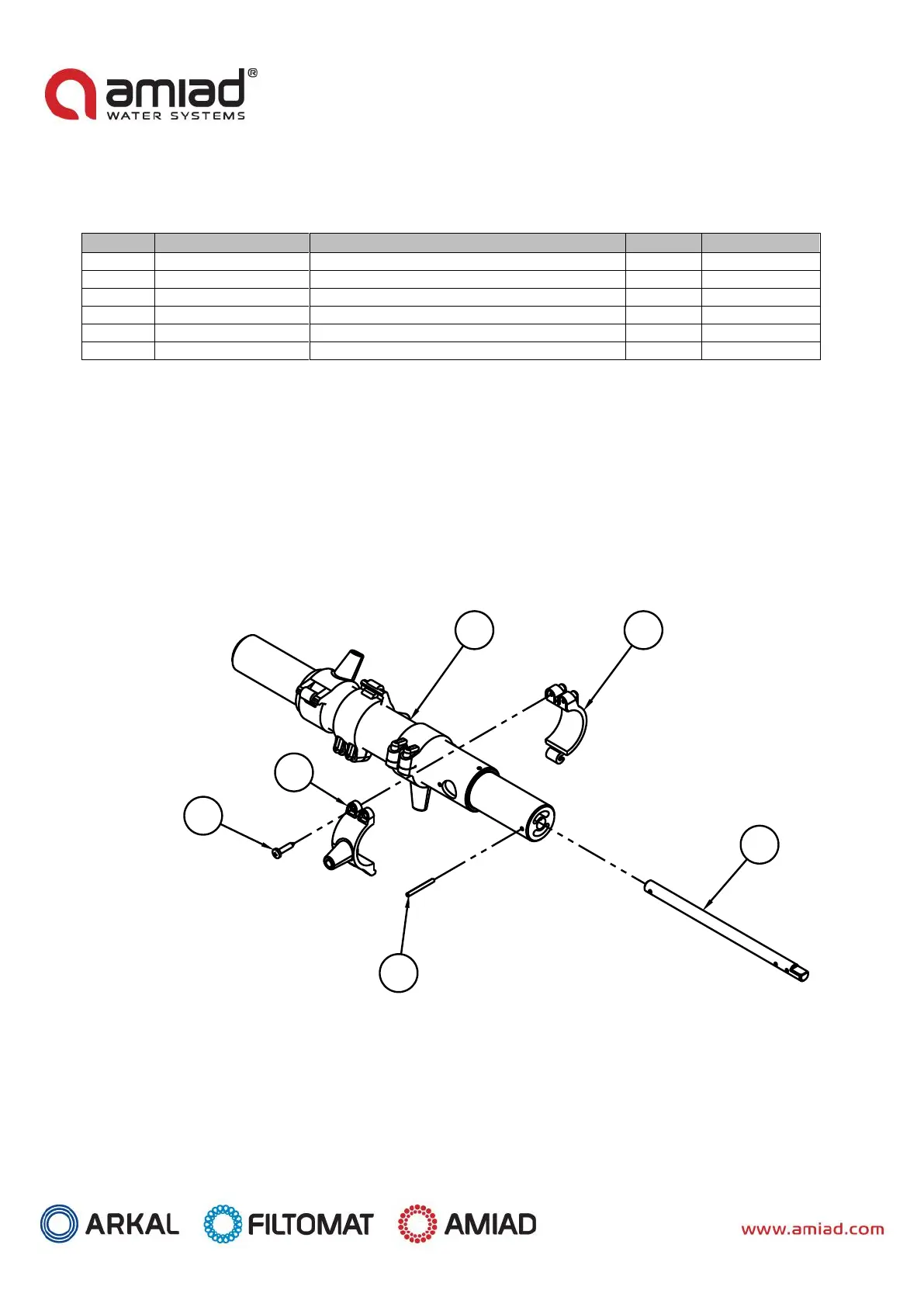

PARTS SCHEDULE & DRAWING 2" TAF-500 FILTER Section 2
NO.
Cat. Num.
Description
QTY
Material
1
700190-001850
Suction Scanner W/O Shaft (2" TAF-500)
1
Various
1.1
710101-000751-1
2"-4" Suction Scanner Nozzle No.1
4
PP
1.2
710101-000751-2
2"-4" Suction Scanner Nozzle No.2
4
PP
1.3
760101-000537
Phillips Pan Tap Screw PT4x20 S/ST316
8
S/ST 316
2
710103-001208
Suction Scanner Shaft 2" TAF
1
S/ST 316L
3
760105-000033
Slotted Pin 3x30 DIN1481 S/ST 304
1
S/ST 304
