13
INSTALLATION

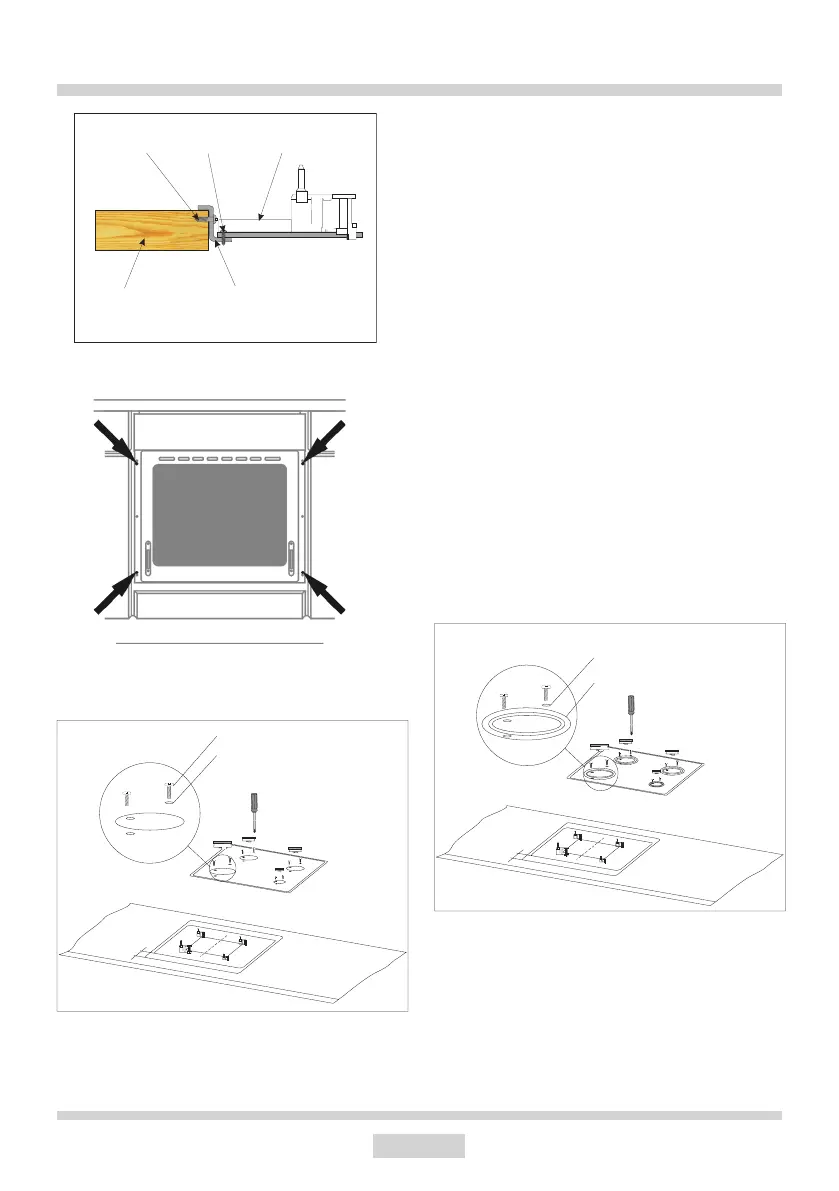

Fig.4
Fig.5
Fig.3
1.2 Installation of a cooker with pre-stres-
sed glass cooking surface.
Procedure:
follow steps 1-5 as in paragraph 1.1, then,
6. Position the burner plate to achieve 90
mm distance (Fig. 6) and using 4 screws
No. 1 (Fig. 3) x the burner plate in work-
top opening.
7. CONNECT THE APPLIANCE TO THE
GAS LINE AND ELECTRICITY MAINS
according to the following chapter.
8. Place pre-stressed glass plate on the
burner plate, then place decorative rings
on the pre-stressed glass plate and the
burners. Fasten pre-stressed glass plate
and decorative rings with 8 screws and
M3 washers, starting with rear middle
burners followed by large and small
burners.
9. Place burner caps and pan supports.
Fig.6
Blat meblowy
Ramazpalnikami
Wkrêt 2Wkrêt 1
Uchwyt mocuj¹cy
ramê
Screw 1
Screw 2 Burner plate
Furniture worktop
Mounting bracket
90
Wkrêt
Podk³adka aluminiowa
Screw
Aluminium washer
90
Wkrêt
Podk³adka aluminiowa
Nak³adka ozdobna
Screw
Aluminium washer
Decorative ring
