Ammann APR 3520 - Technical Data

APR 2220 APR 2620 APR 3020 APR 3520 APR 2220 (H) APR 3020 (H) APR 3520 (H)
1. Di men sions
Length L 1140 mm 1365 mm 1140 mm 1365 mm
Length L1 600 mm 700 mm 860 mm 600 mm 700 mm 860 mm
Length L2 254 mm 330 mm 410 mm 254 mm 330 mm 410 mm
Height H 730 mm 740 mm 780 mm 610 mm 740 mm 750 mm
Height H1 1000 mm
Height H2
1180 mm
Work ing width B1
400 mm 380 mm 500 mm 450 mm 400 mm 500 mm 450 mm
Work ing width B2
— 500 mm 600 mm 600 mm — 600 mm 600 mm
2. Weights
Ba sic unit B1 121 kg 130 kg 213 kg 257 kg 100 kg 199 kg 242 kg
Ba sic unit B2
128 kg 135 kg 217 kg 271 kg — 205 kg 257 kg
Trans por ta ti on kit +8 kg + 9 kg + 10 kg — + 8 kg + 10 kg
Elec tri cal star ter — — + 13 kg + 15 kg
3. Drive
Mo tor-type Hatz 1B20 Hatz 1B30 Hon da GX 120 Hon da GX 270
Type of con struc tion 1 cyl., 4-stro ke-die sel 1 cyl., 4-stro ke-ga so li ne
Power 3,1 kW (4,2 hp) 4,5 kW (6,1 hp) 4,6 kW (6,3 hp) 2,9 kW (4,0 hp) 6,3 kW (8,6 hp)
by speed 3000 1/min 2900 1/min 3000 1/min 3600 1/min 3100 1/min
Cool ing sys tem air
Fuel con sump tion 0,9 l/h 1,3 l/h 0,9 l/h 2,1 l/h
max. slop ing po si tion 30° 20°
max. grade abil ity
35 %

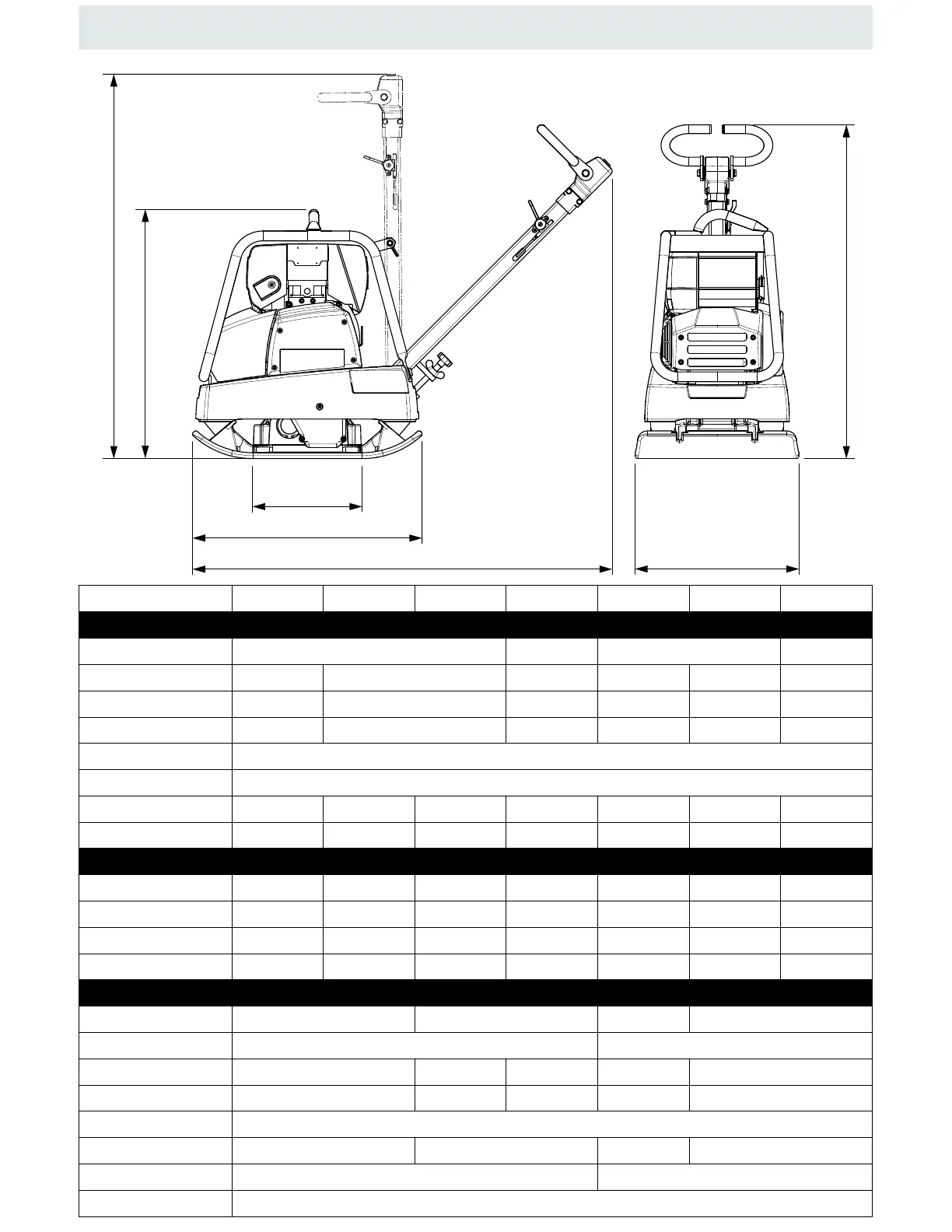

B
L2
L1
L
H2
H
H1
B3299100
