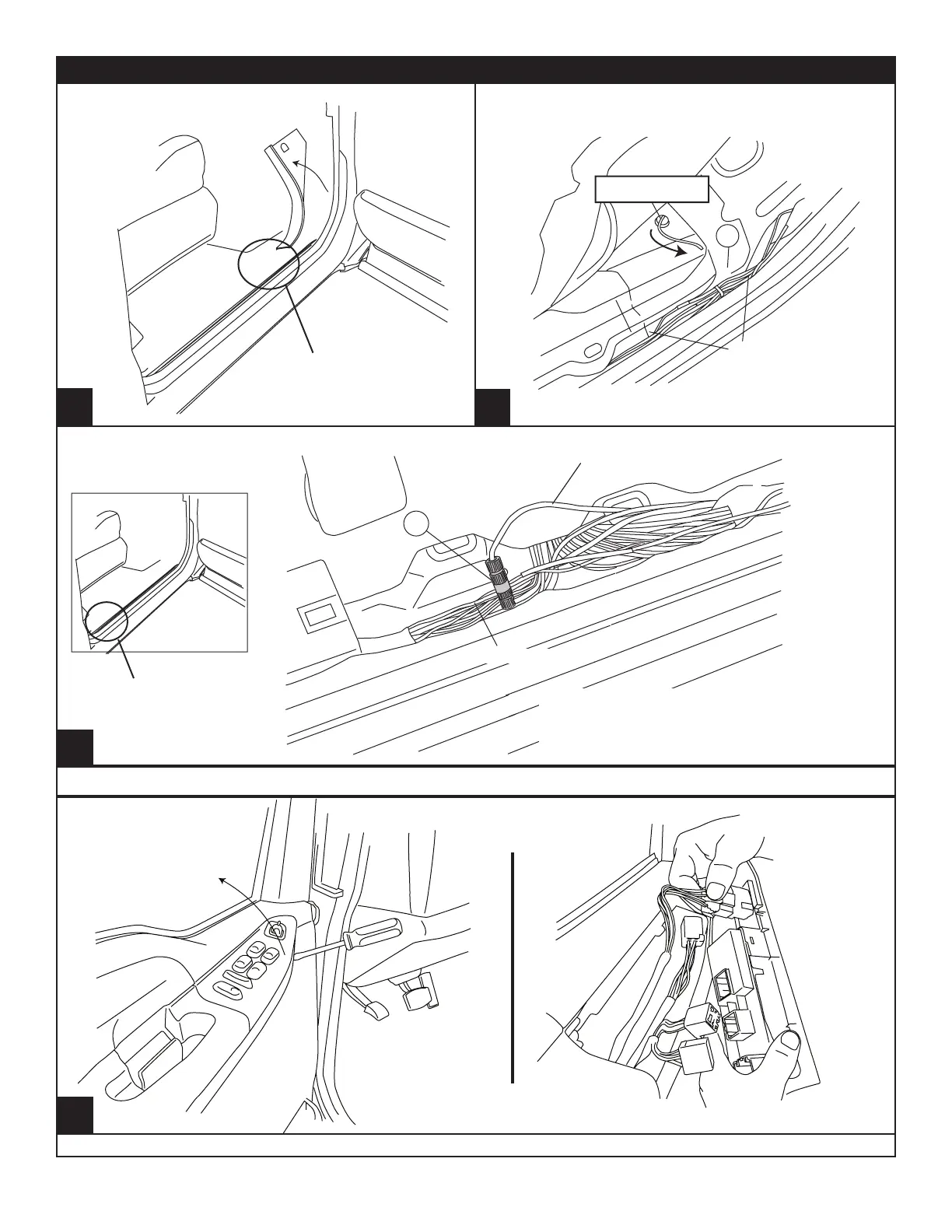

Remove kick plate
Roll back carpet
See Detail 14
6
wire bundle
TRIGGER WIRE
(See Wiring Guides for wiring details)
Roll back carpet and pull trigger-wire through
grommet.
18
Connecting Wire or leg of Double Diode
TRIGGER
WIRE
6
Roll back carpet
See Detail
(See wiring guides for details and
step-by-step instuctions; colors and
procedures will vary per model year)
Rear Door Ajar Wire
NOTE: Steps 18-27, removing driver’s door panel, only for vehicles prior to 2007.
