Ampeg MICRO-CL Owner's Manual

5
MICRO-CL Stack

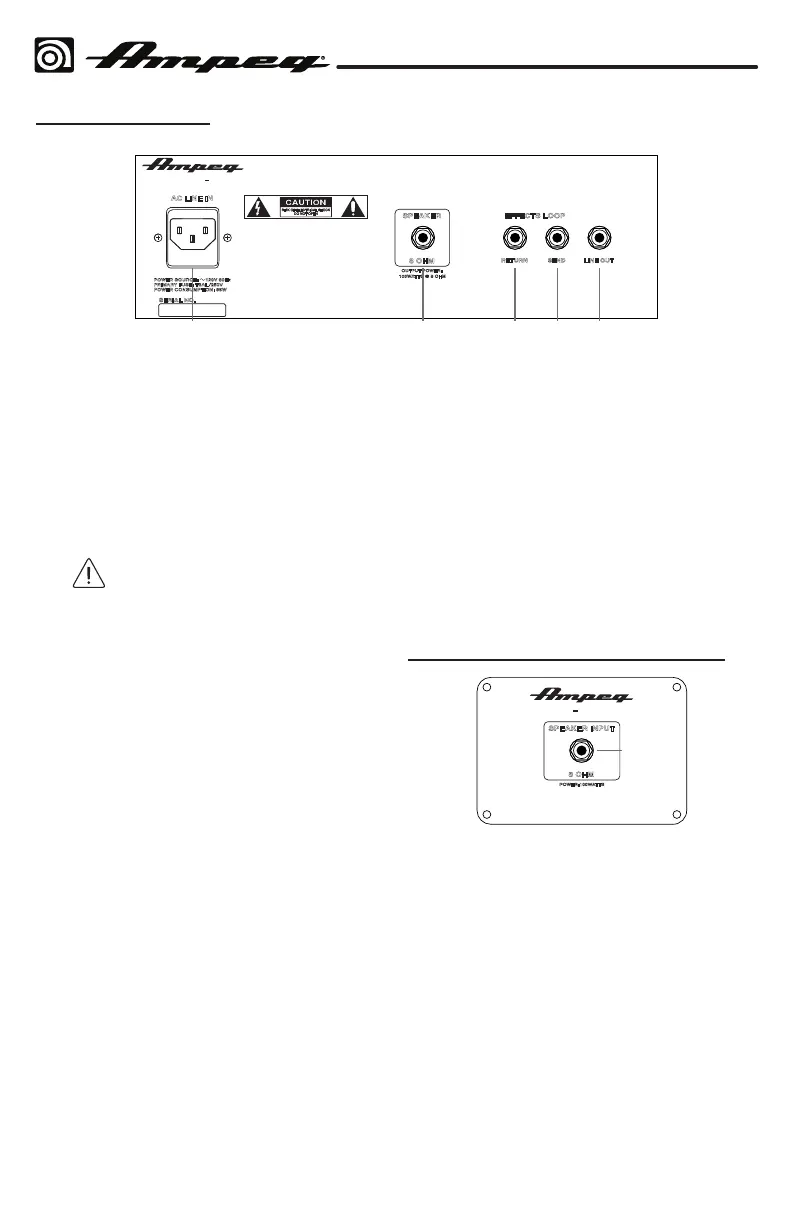

The Rear Panel
OUTPUT POWER:
100WATTS @ 8 OHM
AC LINE IN
SPEAKER EFFECTS LOOP
RETURN SEND LINE OUT
SERIAL NO.
8 OHM
POWER SOURCE: 120V 60Hz
PRIMARY FUSE: T3AL /250V
POWER CONSUMPTION: 85W
CAUTION: TO PREVENT ELECTRIC SHOCK DO NOT REMOVE
CHASSIS (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE PERSONNEL.
AVIS: RISQUE DE CHOC ELECTRIQUE- NES PAS OUVRIR.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DO
NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
ATTENTION: UTILISER UN FUSIBLE DE RECHANGE DE MEME TYPE.
MICRO CL
12 13 14 15 16
12. AC POWER INPUT: The amplier is
equipped with a detachable power
cable that plugs into this IEC Mains
socket on the back of the amplier. The
AC power cord should only be plugged
into a grounded power outlet that
meets all applicable electrical codes
and is compatible with the voltage,
power, and frequency requirements
stated on the rear panel of the amplier.
Do not attempt to defeat the
safety ground connection.
13. SPEAKER OUTPUT JACK: This 1/4"
TS Output jack supplies speaker-level
power to the Speaker Cabinet Input
[17]. The rated power output is 100
Watts into 8 Ω.
Use a (non-shielded) speaker cable
with 1/4" TS ends to make the
connections. Do not use (shielded)
instrument cables as they may
overheat.
14. EFFECTS LOOP RETURN JACK: Use
this 1/4" TS unbalanced input to return
the processed, line level output of an
external eects processor (for example).
The processor could be fed by signals
from the Eects Loop Send [15].
15. EFFECTS LOOP SEND JACK: Use this
1/4" TS unbalanced output to send a
line level output to an external eects
processor (for example). The output
here is aected by all controls, including
the Master [3].
Use the Eects Loop Return jack [14]
to feed the returned processed signals
back into the power amplier.
16. UNBALANCED LINE OUT JACK:
Typically, you would connect this
Output to the balanced input of an
external mixer or a recorder. In this way,
you do not have to mic the speaker
cabinet in order to add it to the main
mix or to record. This output is not
aected by the Master control [3].
This output can connect to external
power ampliers, or powered
loudspeakers, as long as they have
their own input controls to adjust the
volume level.
Rear Panel Connector Plate
POWER:100WATTS
SPEAKER INPUT
8 OHM
MC 210E
17
17. 1/4" TS INPUT JACK: Connect the
speaker-level output [13] to this speaker
input jack using a (non-shielded)
speaker cable.
Always use a (non-shielded) speaker
cable—never use a (shielded)
instrument cable to connect speakers
to an amplier.

Ampeg MICRO-CL Specifications

General

Inputs	1 x Instrument
Aux Input	1 x 1/8"
Type	Solid State
Preamp	Solid-State
Power Amp	Solid-State
Tone Controls	3-band EQ
Speaker Output	1 x 1/4"
RMS Power Output	100W
Power Output	100 watts
